[shortdesc]
- Smart-managed, Rack-mountable, 24 x 1G Class 4 PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 2
[/shortdesc]
[properties]
| Properties |
6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) |
| Description |
The Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) provides 24 Gigabit Class 4 PoE+ ports and 4 SFP+ uplinks, delivering secure, reliable, and cost-effective networking for SMB and branch offices. |
| Product Family |
CX6100 Series |
| Product Type |
Ethernet Switch |
| Ports and Slots |
24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies |
Fixed power supply Up to 370W of Class 4 PoE Power |
| Frequency |
50/60 Hz |
| Voltage |
100-127 VAC / 200-240 VAC |
| Current |
4.6 A / 2.3 A |
| Power Consumption (230 VAC) |
Idle: 22.9W
Max Power (w/o PoE): 32.7W
Max Power (w/ PoE): 455W |
| Fans |
Fixed fans |
| Dimensions |
4.4 x 44.2 x 26.8 cm (1.73 x 17.4 x 10.56 in) |
| Weight |
4.2 kg (9.24 lbs) |
| Mounting and enclosure |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting.
|
[/properties][specifications]
| Specifications |
6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) |
| CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash |
4 GB DDR3 16 GB eMMC |
| Packet Buffer |
1 MB |
| Model Switching Capacity |
128 Gbps |
| Model Throughput Capacity |
95.2 Mpps |
| Average Latency (LIFO-64-bytes packets) |
1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec |
| Switched Virtual Interfaces (dual stack) |
16 |
| IPv4 Host Table (ARP) |
1,024 |
| IPv6 Host Table (ND) |
512 |
| IPv4 Unicast Routes |
512 |
| IPv6 Unicast Routes |
512 |
| MAC Table Capacity |
8,192 |
| IGMP Groups |
512 |
| MLD Groups |
512 |
| IPv4/IPv6/MAC ACL Entries (ingress) |
256 / 128 / 256 |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
|
| Acoustic |
Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 24.3 dB
|
| Primary Airflow |
Side-to-side |
| Safety |
EN 60950-1/IEC 60950-1
EN 60825
CAN/CSA C22.2 No. 60950, 2nd Edition
UL 60950-1, 2nd Edition |
| Emissions |
FCC Class A
VCCI Class A
EN 55022/CISPR 22 Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825-
1:2007 Class 1
Class 1 Laser Products / Laser
Klasse 1
(Applicable for accessories - Optical
Transceivers only) |
| Immunity |
EN 55024, CISPR 24
EN 55024, CISPR 24
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3 |
[/specifications][accesories]
| Accessories |
| JL742A |
Aruba X511 12-port Cable Guard |
| J9583B |
Aruba X414 1U Universal 4-post Rack Mounting Kit
|
| R9G48A |
Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A |
Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A |
Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A |
Aruba USB-C to USB-C PC-to-Switch Cable |
| Cables |
| J9281D |
Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
|
| J9283D |
Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
|
| Transceivers |
| J4858D |
Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D |
Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D |
Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E |
Aruba 10G SFP+ LC LR 10km SMF Transceiver |
[/accesories]

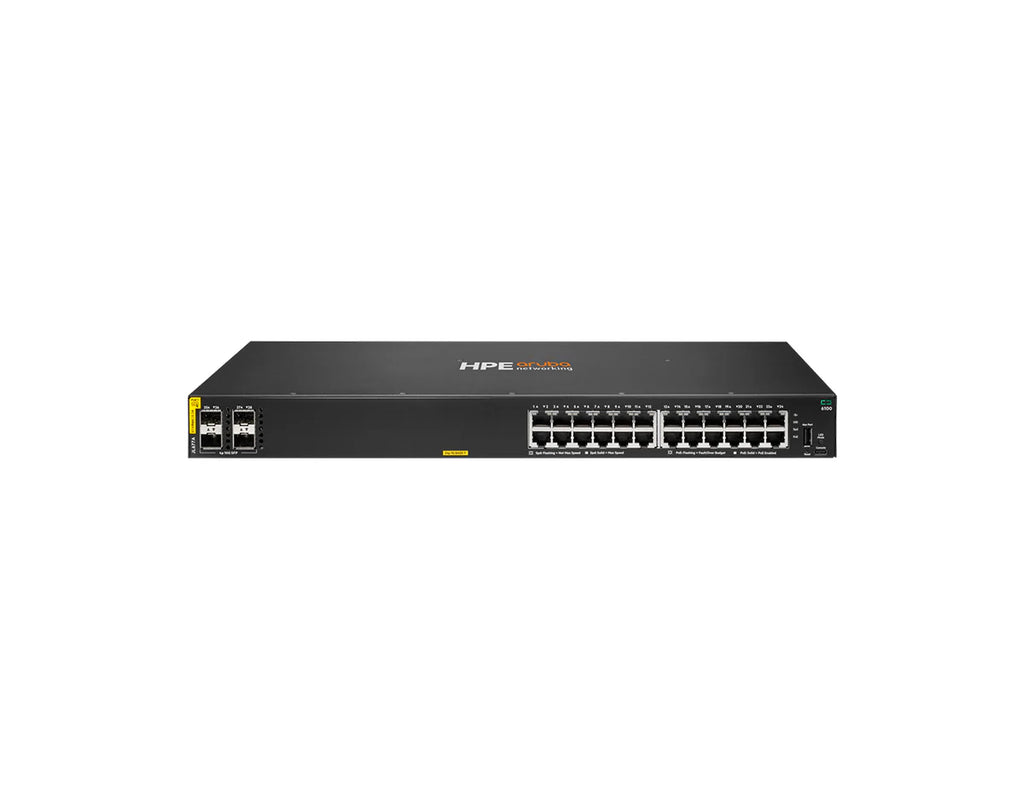

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
The HPE Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) is an entry-level Layer 2 access switch built to deliver simple, reliable, and secure connectivity for small and medium businesses, branch offices, and remote sites. With 24 Gigabit Ethernet Class 4 PoE+ ports and 4 high-speed 1G/10G SFP+ uplinks, it combines affordable power delivery with scalable fiber connectivity, making it ideal for powering IP phones, security cameras, access points, and IoT devices.
Backed by the Aruba AOS-CX operating system, the 6100 series provides enterprise-grade features, intuitive cloud-based Aruba Central management, and seamless integration into modern networks all in a compact 1U design.
Key Features:
-
24 x Gigabit Ethernet PoE Ports: Supports up to 30W per port, perfect for powering connected devices such as IP phones and cameras.
-
4 x SFP+ Uplink Ports: Provides high-speed 10GbE fiber uplink options for flexible network expansion.
-
Layer 2 Switching: Includes VLAN, QoS, and traffic management features for optimized network performance.
-
370W PoE Power Budget: Delivers sufficient power for multiple PoE-enabled devices across the network.
-
Energy-Efficient Design: Compliant with energy-saving standards, reducing power consumption during periods of low activity.
Technical Overview:
-
Recommended for: Small to medium-sized businesses, branch offices, and educational institutions.
-
Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet PoE Class4 ports.
-
Uplink Modules: 4 x SFP+ 10GbE uplinks for scalable fiber connectivity.
-
PoE Power Budget: 370W.
-
Switching Capacity: 128 Gbps.
-
Forwarding Rate: 95.23 Mpps.
-
Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
-
Energy Efficiency: Compliant with energy-saving standards.
