- Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W, Layer 2
[/shortdesc]
[properties]
| Product Name |
MS210-48LP-HW |
| Description |
Cisco Meraki MS210-48LP, a cloud-managed 48-port Gigabit Ethernet switch with 370W PoE+ power budget, designed for enterprise networks with stacking capabilities. |
| Switch Type |
Cloud-managed Layer 2 switch with stacking |
| Total Ports |
48 x Gigabit Ethernet (PoE+ |
| PoE Power Budget |
370W (802.3af/at PoE+ |
| Uplink Ports |
4 x 1G SFP |
| Management |
Cloud-based via Meraki dashboard |
| Operating Temperature |
0°C to 40°C (32°F to 104°F |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F |
| Humidity |
5% to 95% non-condensing |
| Dimensions |
44.0 cm x 36.9 cm x 4.4 cm (17.3 in x 14.5 in x 1.7 in |
| Weight |
5.8 kg (12.8 lb |
| Mounting Options |
Rack-mountable (1U, mounting brackets included |
| Power Supply |
Internal power supply |
| Cooling |
Two internal fans for active cooling |
| Usage |
Ideal for mid-sized to large enterprise networks |
| Durability |
Designed for continuous operation in demanding environments |
[/properties]
[specifications]
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps |
| PoE Standard |
IEEE 802.3af/at (PoE+ |
| Latency |
0.9 microseconds for 64-byte packets |
| Certifications |
CE, FCC, RoHS compliant |
| Environmental Safety |
Complies with global environmental standards, low-halogen design |
| EMC Compliance |
Meets international EMC standards for network equipment |
| Power Consumption |
Maximum 450W (with PoE load |
| Stacking Support |
Supports physical and virtual stacking up to 8 switches |
| MTBF |
1,200,000 hours |
| Security Features |
802.1X authentication, MAC-based port security, DHCP snooping |
| Management Features |
Cloud-based monitoring, configuration, and automated alerts |
| VLAN Support |
Supports up to 4,094 VLANs |
| QoS |
Layer 2 Quality of Service for traffic prioritization |
| Deployment |
Optimized for enterprise, branch, and campus deployments |
| Monitoring |
Real-time network monitoring and troubleshooting via Meraki dashboard |
| Firmware Compatibility |
Automatic firmware updates and security patches via cloud |
[/specifications]

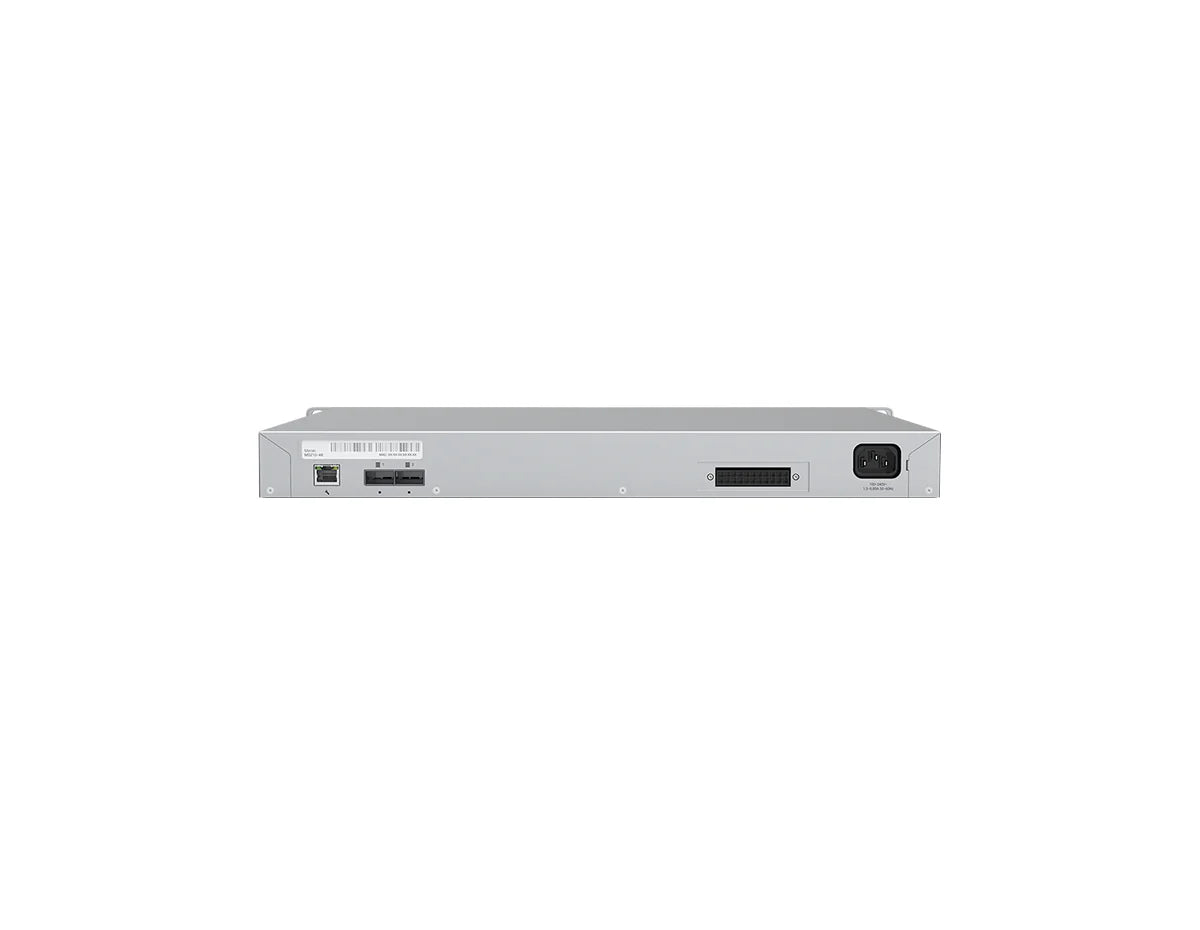

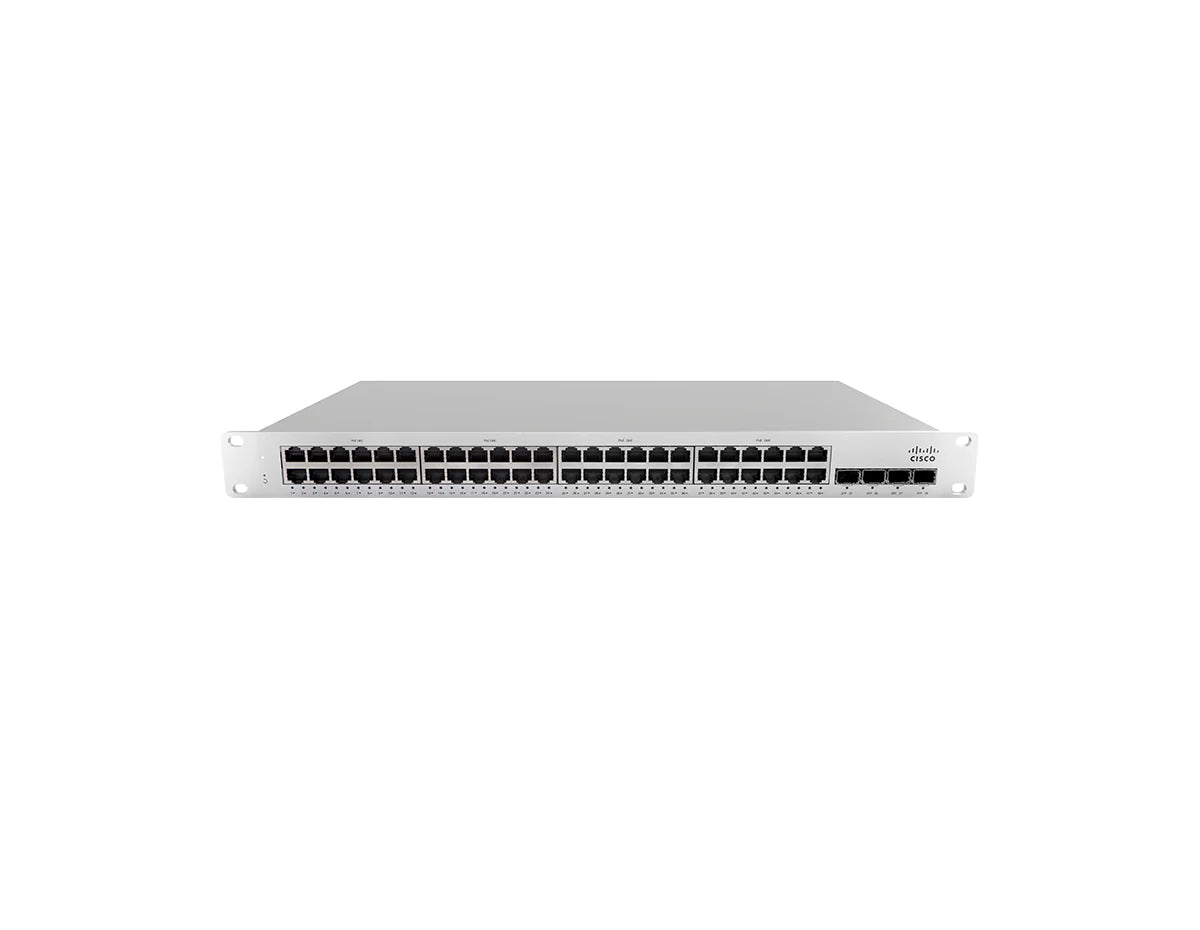

Cisco MS210-48LP-HW Switch
The Cisco MS210-48LP-HW is a cloud-managed, 48-port Gigabit Ethernet switch designed for small to medium-sized businesses seeking reliable and scalable networking. Equipped with 48 Gigabit Ethernet ports, including PoE+ support with a power budget of 370W, and 4 SFP uplink ports, this switch is ideal for powering devices such as IP phones, cameras, and wireless access points. The MS210-48LP-HW integrates seamlessly with Meraki’s cloud-based dashboard, enabling easy provisioning, monitoring, and management from anywhere.
Key Features:
-
48 x Gigabit Ethernet PoE+ Ports: Provides power and connectivity for devices like IP phones and cameras with a total PoE budget of 370W.
-
4 x Gigabit SFP Uplinks: Ensures high-speed uplinks for seamless network expansion.
-
Cloud-Based Management: Simplifies network management with Meraki’s centralized dashboard, offering monitoring, configuration, and troubleshooting tools.
-
Layer 2+ Capabilities: Supports VLANs, QoS, and Link Aggregation for enhanced traffic management and optimized network performance.
-
Energy-Efficient Design: Complies with IEEE 802.3az standards for reduced power consumption during low-traffic periods.
Technical Overview:
-
Recommended for: Small to medium-sized businesses, retail environments, and branch offices.
-
Ports: 48 x 10/100/1000 Ethernet PoE+ ports, 4 x 1G SFP uplinks.
-
PoE Power Budget: 370W.
-
Switching Capacity: 104 Gbps.
-
Forwarding Rate: 77.38 Mpps.
You can check the related tab for the MS210-48LP-HW datasheet.
