[shortdesc]
- Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP+, PoE+ (740W, Layer 2
[/shortdesc]
[properties]
| Properties |
6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A |
| Product Family |
CX6200 Series |
| Product Type |
Ethernet Switch |
| Ports and Slots |
48x 10/100/1000BASE-T Class 4 PoE ports
4x 1/10G SFP+ ports; Supports PoE Standards IEEE 802.3af and IEEE 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with Aruba CX Mobile App |
| Power supplies |
Fixed power supply (950W; up to 740W Class 4 PoE power
|
| Frequency |
50/60 Hz |
| Voltage |
100-127 VAC / 200-240 VAC |
| Current |
11A/6A |
| Power Consumption (230 VAC |
Hibernation (0 rpm fan: 12W
Idle: 62W
100% Traffic Rate: 76W |
| Fans |
Fixed fans |
| Dimensions |
1.73” x 17.4” x 12.9” |
| Weight |
5.10 kg (11.24 lbs |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
|
[/properties][specifications]
| Specifications |
6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A |
| CPU |
Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash |
8 GB DDR4 16 GB eMMC |
| Packet Buffer |
8 MB Packet Buffer Memory |
| Model Switching Capacity |
176 Gbps |
| Model Throughput Capacity |
Up to 130.9 Mpps |
| Average Latency (LIFO-64-bytes packets |
1 Gbps: 2.28 μSec
10 Gbps: 1.46 μSec
|
| Switched Virtual Interfaces (dual stack |
128 |
| IPv4 Host Table (ARP |
8,192 |
| IPv6 Host Table (ND |
8,192 |
| IPv4 Unicast Routes |
2,048 |
| IPv6 Unicast Routes |
1,024 |
| MAC Table Capacity |
16000 |
| IGMP Groups |
1,024 |
| MLD Groups |
1,024 |
| IPv4/IPv6/MAC ACL Entries (ingress |
5,120/1,280/5,120 |
| Stack Size |
8 members |
| Max. Stacking Distance |
Up to 10 kms with long range transceivers |
| Operating Temperature |
32°F to 113°F (0°C to 45°C up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
|
| Acoustic |
Sound Power, LWAd= 5.3 Bel Sound Pressure, LpAm(Bystander = 37.1 dB
|
| Primary Airflow |
Front and side to back |
| Safety |
US: UL 60950-1 2nd Ed. |
| Emissions |
US: FCC 47 CFR part 15B, Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only
|
| Immunity |
EN 55035:2017
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3 |
[/specifications][accesories]
| Accessories |
| JL669B |
• Aruba X751 Port to Power Fan Tray |
| J9583A |
• HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B |
• Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A |
• Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Q73A |
• Aruba 6200F 12-port Cable Guard |
| R8Z87A |
• Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A |
• Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A |
• Aruba USB-C to USB-C PC-to-Switch Cable |
| JL448A |
• Aruba X2C2 RJ45 to DB9 Console Cable |
| S1H23A |
• HPE Aruba Networking CX Switch Bluetooth Adapter |
| Cables |
| J9281D |
• Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D |
• Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Transceivers |
| J4858D |
• Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D |
• Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D |
• Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D |
• Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D |
• Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E |
• Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D |
• Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B |
• Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D |
• Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| R9X54A |
• Aruba 10G LC BiDi 40km-D 1330/1270 XCVR |
| R9X55A |
• Aruba 10G LC BiDi 40km-U 1270/1330 XCVR |
[/accesories]

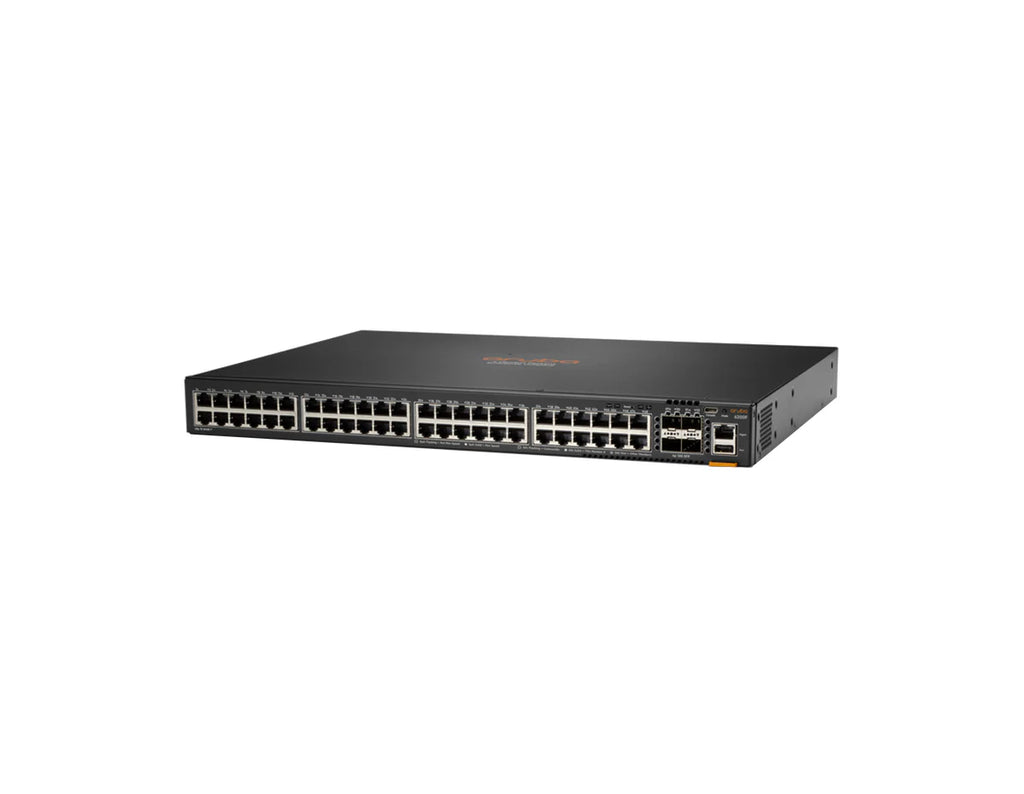

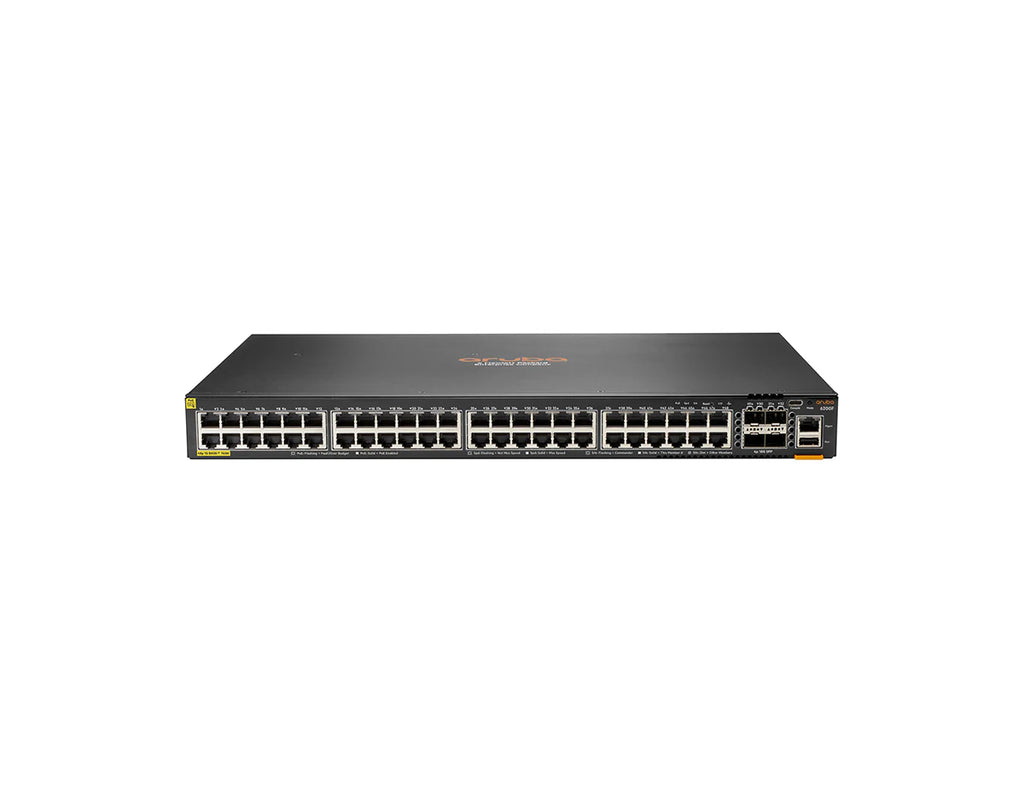

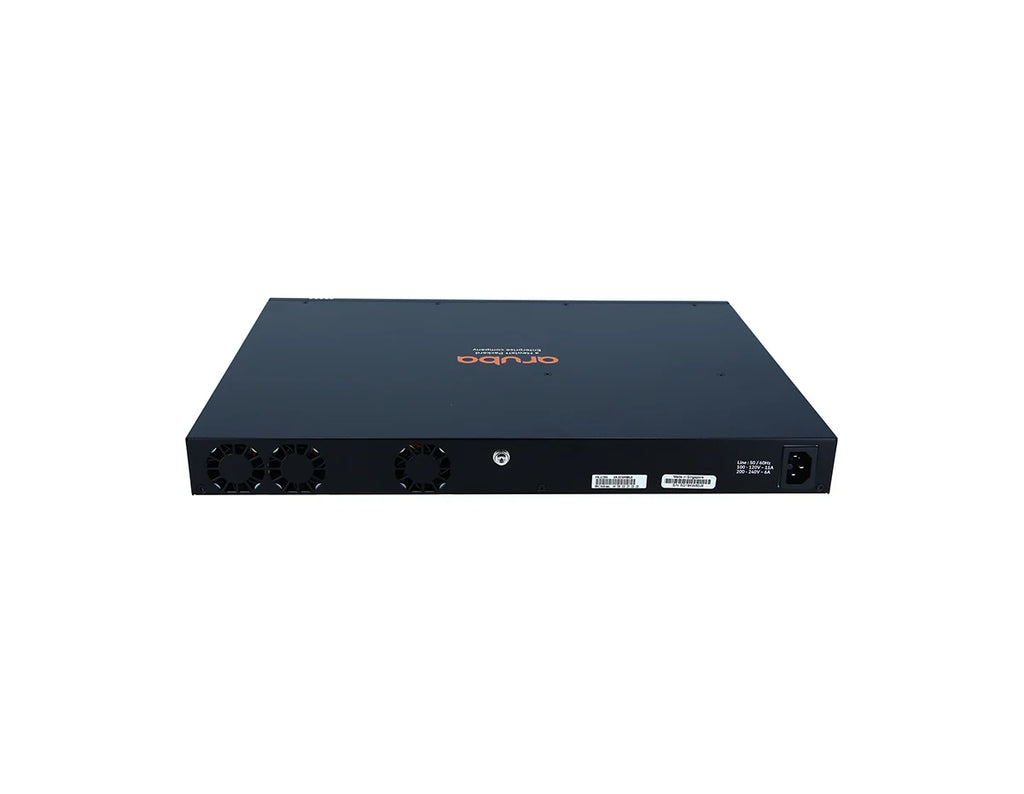

HPE Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A
The HPE Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A is a versatile and scalable solution designed for businesses looking to enhance their network infrastructure. With 48 Gigabit Ethernet ports and 4 high-speed SFP+ uplink ports, this switch provides the flexibility and performance needed to support demanding applications. The 740W PoE budget is ideal for powering a variety of connected devices, such as IP phones, access points, and security cameras.
Key Features:
-
48 x 1GbE Class 4 PoE Ports: Supports PoE up to 30W per port, enabling power delivery to connected devices without additional power cables.
-
4 x SFP+ Uplink Ports: Provides uplinks with speeds of up to 10Gbps, ensuring fast and reliable connections to the network core or other switches.
-
740W PoE Power Budget: Supplies ample power for multiple PoE-enabled devices, simplifying network deployment.
-
Layer 2+ Switching: Features VLAN, link aggregation, and QoS for advanced network traffic management.
-
Stackable Design: Supports up to 8 units in a stack, making it easier to scale and manage larger networks.
Technical Overview:
-
Recommended for: Small to medium-sized businesses and branch offices.
-
Ports: 48 x 1GbE Class 4 PoE ports, 4 x 1G/10GbE SFP+ uplink ports.
-
Switching Capacity: 176 Gbps.
-
Forwarding Rate: 130.9 Mpps.
-
PoE Power Budget: 740W for powering connected devices.
-
Layer 2+ Features: Includes VLANs, static routing, and link aggregation for effective traffic management.
-
Management: Managed via Aruba Central, CLI, or web-based GUI.
-
Energy Efficiency: Compliant with IEEE 802.3az for reduced power consumption.
