[shortdesc]High-performance IR LED illuminator with AC/DC or PoE input, providing up to 350 m (1148 ft infrared illumination with interchangeable lenses and rugged IP66 and IK09 outdoor-ready housing.[/shortdesc]
[properties]
| Model |

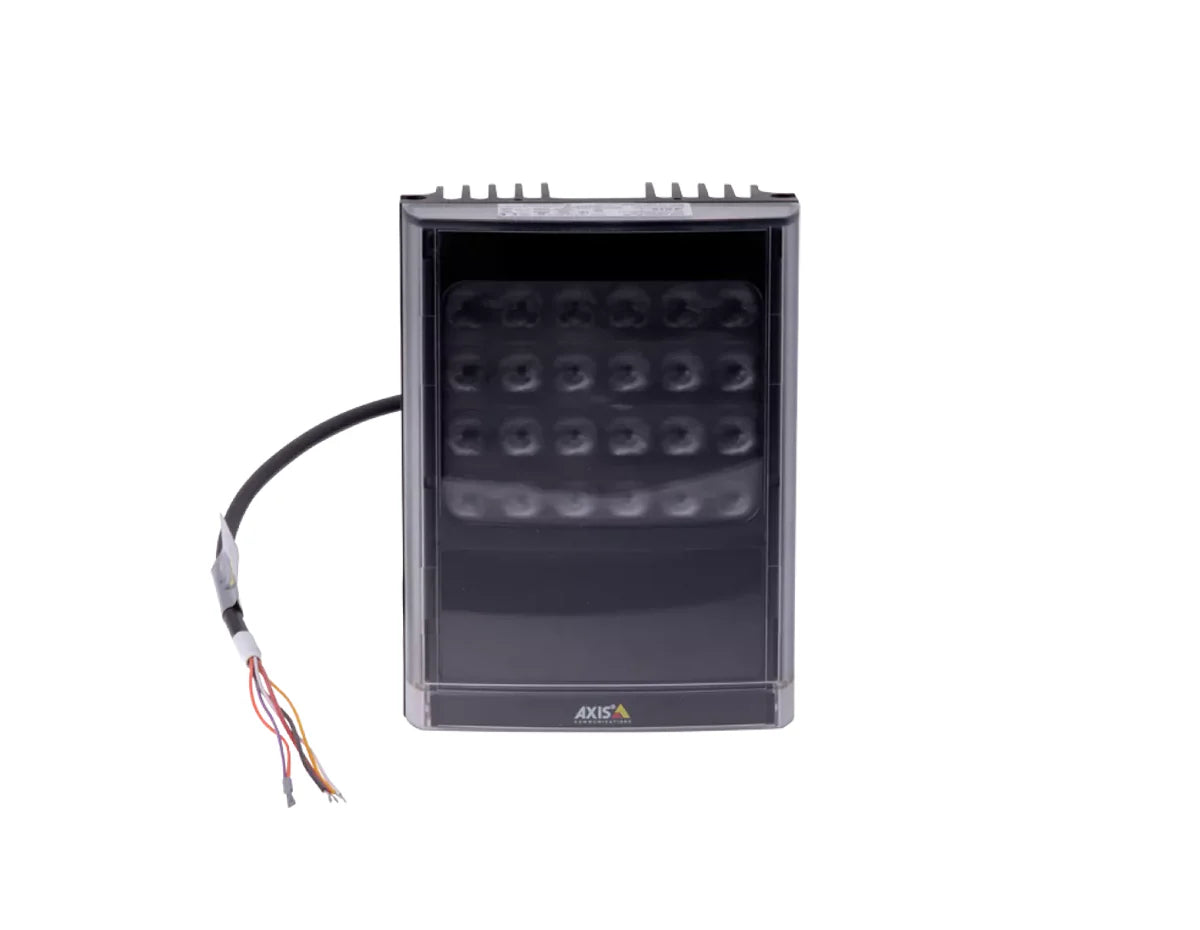

AXIS T90D30 IR-LED (01212-001 |
| Product Type |
850 nm semi-covert IR LED Illuminator |
| Power |
AC/DC input 12–24 V, or High PoE (max 60 W |
| Dimensions |
135 x 180 x 68 mm (5 x 7 x 3 in |
| Weight |
1.65 kg (3.61 lb |
| Casing |
Aluminum and polycarbonate, black |
| Environment Rating |
IP66 (dust-tight and powerful water jets, IK09 impact resistance |
| Operating Temperature |
-50 °C to 50 °C (-58 °F to 122 °F |
| Storage Temperature |
-50 °C to 70 °C (-58 °F to 158 °F |
| Humidity |
10–100% RH (condensing |
| Compatible Products |
All Axis cameras with infrared-cut filter |
| Mounting Options |
Wall, ceiling, pole, fixed box camera housing |
| Cable Length |
2.5 m (8.2 ft |
[/properties]
[specifications]
| IR Wave Type |
850 nm semi-covert |
| Illumination Angle (without lens |
10° |
| Illumination Angle (with diverging lenses |
35°, 60°, 80°, 120° |
| Distance (10° |
Up to 350 m (1148 ft |
| Distance (35° |
Up to 165 m (541 ft |
| Distance (60° |
Up to 95 m (311 ft |
| Distance (80° |
Up to 70 m (230 ft |
| Distance (120° |
Up to 45 m (148 ft |
| Power Use (AC/DC Variant |
46 W max, 0.3 W standby |
| Power Use (PoE Variant |
49 W max, 2.2 W standby |
| Control (AC/DC |
Buttons / Remote: power level, photocell sensitivity, telemetry link, timer |
| Control (PoE |
Buttons / Remote: power level, photocell sensitivity, timer |
| Indicators |
Indicator LEDs |
| Certifications (EMC |
FCC Part 15 Class B, ICES-003 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547 |
| Certifications (Safety |
IEC/EN 60598-1, IEC/EN 62471 (risk group 2, C22.2 No 250.0–08, UL 2108 |
[/specifications]
[accesories]
| Included |
Three IR diverging lenses (35°, 60°, 80°; IP66 cable coupler (PoE variant only |
| Optional accessories |
AXIS T90B Remote Control; AXIS IR Diverging Lens C 120°; AXIS T90 Wall-and-Pole Mount; AXIS T90 Single Bracket; AXIS T90 Multi Bracket; AXIS T8134 60 W Midspan; AXIS T8124-E Outdoor Midspan 60 W; AXIS T8125 AC 24 V Midspan 60 W; AXIS T8144 Industrial Midspan 60 W; AXIS T8504-E Outdoor PoE Network Switch; PS-24 mains adaptor; PS24 240 W power supply |
[/accesories]
The AXIS T90D30 IR-LED Illuminator is designed to provide precisely directed infrared lighting for night-time and low-light surveillance, minimizing foreground washout while ensuring long-range illumination. Its interchangeable lenses allow lighting angle optimization to match multiple field-of-view configurations, making it highly adaptable for different installation scenarios.
With durable IP66 and IK09 construction, extreme temperature tolerance from -50 to 50 °C (-58 to 122 °F, and multiple mounting options, this illuminator delivers reliable, maintenance-free performance for both indoor and outdoor use. The power flexibility—with PoE or AC/DC—ensures easy integration with existing infrastructure.
Precision IR Illumination with Flexible Power and Lens Configurations
- Long-range IR coverage up to 350 m (1148 ft for extended surveillance distance.
- Interchangeable beam-angle lenses for exact illumination alignment.
- Rugged IP66 and IK09 protection for reliable outdoor performance.
- Flexible AC/DC or High-Power PoE power options.
- Comprehensive installation compatibility: poles, walls, ceilings, and housings.
- Integrated control features including adjustable photocell sensitivity and power output.
Ideal Use Cases
- Perimeter and fence-line monitoring over long distances.
- Industrial and logistics yard surveillance.
- Parking areas and large-lot security.
- Border detection and restricted-access monitoring.
- Any environment requiring optimized nocturnal imaging with Axis network cameras.
Technical Specifications Summary
-
IR Output: 850 nm semi-covert illumination
-
Beam Angles: 10° / 35° / 60° / 80° / 120° (with lenses
-
Power Input: 12–24 V AC/DC or PoE (60 W
-
Consumption: AC/DC max 46 W; PoE max 49 W
-
Operating Temp: -50 to 50 °C (-58 to 122 °F
-
Cable Length: 2.5 m (8.2 ft
-
Size and Weight: 135 x 180 x 68 mm (5 x 7 x 3 in, 1.65 kg (3.61 lb
-
Environmental Class: IP66 and IK09
Upgrade Your Operations
Deploy precision IR lighting for unmatched night-time surveillance performance.
