[shortdesc]
- The Cisco C1300-24P-4X is a 24-port Gigabit PoE+ Layer 3 managed switch with four 10G SFP+ uplinks, offering advanced performance, security, and scalability for modern business networks
[/shortdesc]
[properties]
| Model |
Cisco Catalyst C1300-24P-4X |
| Product Type |
Managed Layer 3 Gigabit PoE+ Switch |
| Total System Ports |
28 (24 × 10/100/1000 RJ-45 PoE+, 4 × 10G SFP+ |
| Switching Capacity |
128 Gbps |
| Forwarding Rate |
95.23 Mpps |
| PoE Budget |
195 W total (IEEE 802.3af/at; up to 30 W/port |
| Packet Buffer |
1.5 MB (shared |
| MAC Address Table |
16,000 entries |
| CPU / Memory / Flash |
ARM dual-core up to 1.4 GHz / 1 GB DDR4 / 512 MB |
| Stacking |
Front-panel stacking up to 8 switches |
| Cooling |
Fanless (silent |
| Power Supply |
Internal, 100–240 V AC, 50/60 Hz |
| Power Consumption (Max |
236.9 W (with PoE |
| Dimensions (W × D × H |
445 × 299 × 44 mm (17.5 × 11.77 × 1.73 in |
| Unit Weight |
3.95 kg (8.70 lb |
| Operating Temperature |
−5 °C to 50 °C (23 °F to 122 °F |
[/properties]
[specifications]
| Layer Support |
Layer 2 & Layer 3 (static IPv4/IPv6, RIP v2, Policy-Based Routing |
| Routing / Interfaces |
Up to 990 static routes; up to 128 Layer 3 interfaces (SVIs |
| VLANs |
Up to 4093 VLANs; Private VLAN/Edge; Voice/Guest VLAN; VLAN translation; Q-in-Q |
| Link Aggregation |
IEEE 802.3ad LACP (up to 8 groups; up to 8 ports per group |
| Spanning Tree |
802.1D STP, 802.1w RSTP, 802.1s MSTP; PVST+/RPVST+ |
| Multicast |
IGMP snooping/querier (IPv4; MLD snooping (IPv6; up to 2000 groups |
| QoS |
8 egress queues/port; Strict Priority & WRR; CoS/DSCP trust & remarking; policing/shaping |
| Security |
802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control |
| ACLs |
Up to 1024 rules; IPv4/IPv6/MAC; protocol/port/DSCP; time-based ACLs |
| Jumbo Frames |
Up to 9000 bytes (default MTU 2000 bytes |
| Management |
Web UI/CLI/SSH, SNMP v1/v2c/v3, RMON, Syslog, Cisco Business Dashboard (embedded probe, PnP |
| Discovery |
LLDP, LLDP-MED, Cisco Discovery Protocol (CDP, Bonjour |
[/specifications]
[accessories]
| Accessory |
Details |
| CAB-CONSOLE-RJ45 |
RJ-45 console cable |
| CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= |
USB-C console cable |
| PWR-CLP |
Power cable clip |
| RCKMNT-1RU-1K= |
Rack-mount kit for 1U devices |
[/accessories]

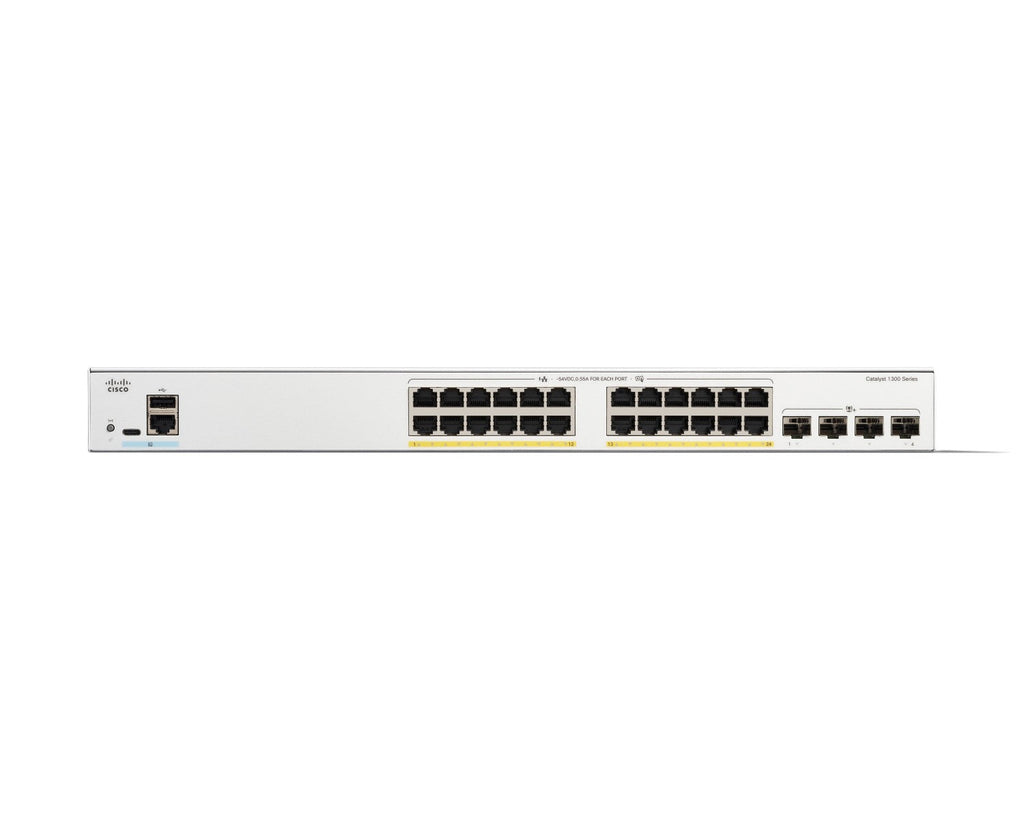

Cisco Catalyst C1300-24P-4X 24-Port PoE+ Switch with 4 SFP+
The Cisco Catalyst C1300-24P-4X is a fanless, fully managed Layer 3 Gigabit access switch for SMB and branch networks that need quiet operation, PoE+ power, and 10G uplinks. It provides 24 × 1G PoE+ downlinks (up to 30 W/port and four 10G SFP+ uplinks, delivering non-blocking performance with a 128 Gbps switching fabric and 95.23 Mpps forwarding. With a 195 W PoE budget, advanced L2/L3 services (static, RIP v2, PBR, granular QoS, and robust security (802.1X, DHCP snooping, IPSG, DAI, it powers APs, phones, and cameras while remaining silent. Operations are streamlined via Web UI/CLI/SSH, SNMP, the embedded Cisco Business Dashboard probe, and PnP.
Key Features
-
Silent PoE+ access: Fanless hardware with a 195 W total PoE+ budget (up to 30 W/port.
-
10G uplinks: Four SFP+ ports for high-bandwidth aggregation/backbone connectivity.
-
Layer 3 services: Static IPv4/IPv6 routing, RIP v2, and PBR for efficient segmentation.
-
Hardened security: 802.1X, DAI, DHCP Snooping, IP Source Guard, and rich ACLs.
-
Simplified ops: Web/CLI/SSH/SNMP, Cisco Business Dashboard probe, and PnP onboarding.
Technical Overview
-
Performance: 128 Gbps switching / 95.23 Mpps forwarding; 1.5 MB shared buffer; 16K MAC.
-
Interfaces: 24 × 1G PoE+ RJ-45; 4 × 10G SFP+ uplinks.
-
L2 resiliency: STP/RSTP/MSTP with PVST+/RPVST+; LACP link aggregation.
-
Multicast: IGMP snooping/querier (IPv4 and MLD snooping (IPv6; up to 2000 groups.
-
Mechanical: 445 × 299 × 44 mm; 3.95 kg; fanless design.
-
Environment: −5 °C to 50 °C operating; internal universal PSU.
