Name: Cisco PWR-IE50W-AC-IEC Power Supply
Brand: Cisco
SKU: PWR-IE50W-AC-IEC-NEW
Price: 763.00 USD
Availability: InStock

Free Shipping

We ship Internationally

Genuine Products

Credit Cards Accepted

Satisfied or refunded

Simply return the product

WhatsApp: +1 (305) 809-0110

info@alotechsolutions.com

Tariffs, duties, all taxes and fees are included

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

[shortdesc]

Power Supply ( DIN Rail Mountable )
AC 110-220/ DC 88-300 V
for Industrial Ethernet 3000 Series

[/shortdesc]

[properties]

Properties	Cisco PWR-IE50W-AC-IEC
Description	Expansion power module for IE-3000-4TC and IE-3000-8TC switches
Product Family	Industrial Ethernet 3000
Product Type	Power Supply
Configurations	Expansion Power Module for Cisco IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E switches, supports Input AC 100-240V/1.25A 50-60Hz, Output DC 24V/2.1A, IEC Plug, DIN-Rail Mount
Dimensions (HxWxD) Inches	2.0W x 5.8H x 4.4D (51mm W x 147mm H x 112mm D)
Weight	1.4 lb (0.65kg)
Input voltage and currents supported	100-240VAC/1.25A, 50-60Hz

[/properties][specifications]

Specifications	PWR-IE50W-AC-IEC
Mean Time Between Failures (MTBF)	1,662,359
Operating Temperature	-40C to +75C -40C to +70C (Vented Enclosure 40 LFM Air Flow) -40C to +60C (Sealed Enclosure 0 LFM Air Flow) -24C to +75C (Fan or Blower equipped Enclosure 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 13,000 ft (3963m)
Storage Altitude	Up to 15,000 ft (4573m)
Standard safety certifications	UL 60950-1 CSA C22.2 No. 60950-1 TUV/GS to EN 60950-1 CB to IEC 60950-1 with all country deviations NOM
Electromagnetic emissions	FCC Part 15 Class A EN 55022 CISPR 22 CISPR11 VCCI Class A AS/NZS 3548 Class A CNS 13438 Class A KN 22 Class A
Electromagnetic immunity	EN 55024 AS/NZS CISPR 24 KN 24 IEC/EN 61000-4-2 (Electro Static Discharge) IEC/EN 61000-4-3 (Radiated Immunity) IEC/EN 61000-4-4 (Fast Transients) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (Conducted Immunity) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances) IEC/EN 61000-4-17 (Ripple on DC Input Power) IEC/EN 61000-4-18 (Damped Oscillatory Wave) IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power) IEEE C37.90 (Surge) IEEE C37.90.1 (Fast Transients) IEEE C37.90.2 (Radiated Immunity) IEEE C37.90.3 (Electro Static Discharge)
Mechanical stability	IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational)
Industry specifications	EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical) IEEE 1613 Power Station and Substation Networking Devices IEC 61850-3 Power Station and Substation Communication Networks and Systems EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC EN 61000-6-1 Immunity for Light Industrial Environments EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emissions for Industrial Environments TS 61000-6-5 EMC Immunity for Power Station and Substation EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical) EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus EN 60945 Maritime Navigation and Radio-communication Equipment and Systems IEC 60533 Shipboard Electrical and Electronic Installation EMC Marine Type Approval (BV, DNV, Korean Register, Lloyd Register) NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification ODVA Industrial EtherNet/IP support PROFINETv2 support Directive 2011/65/EU RoHS IP20
Hazardous locations	UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure) EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure) IEC 60079-0, -15 (Test report only) (requires cabinet enclosure) UL 508 CSA C22.2 No. 142
Humidity	Relative humidity: 5% to 95% non-condensing

[/specifications]

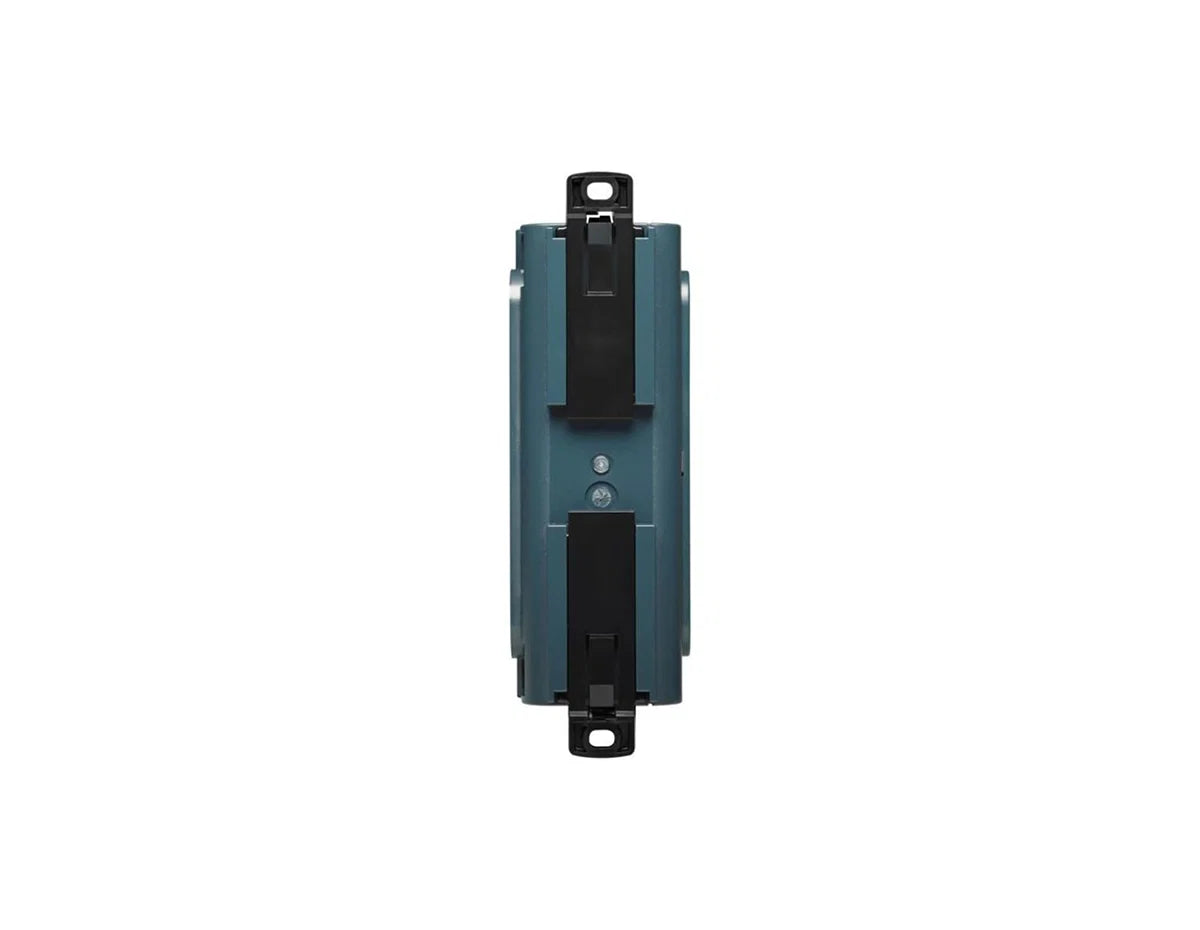

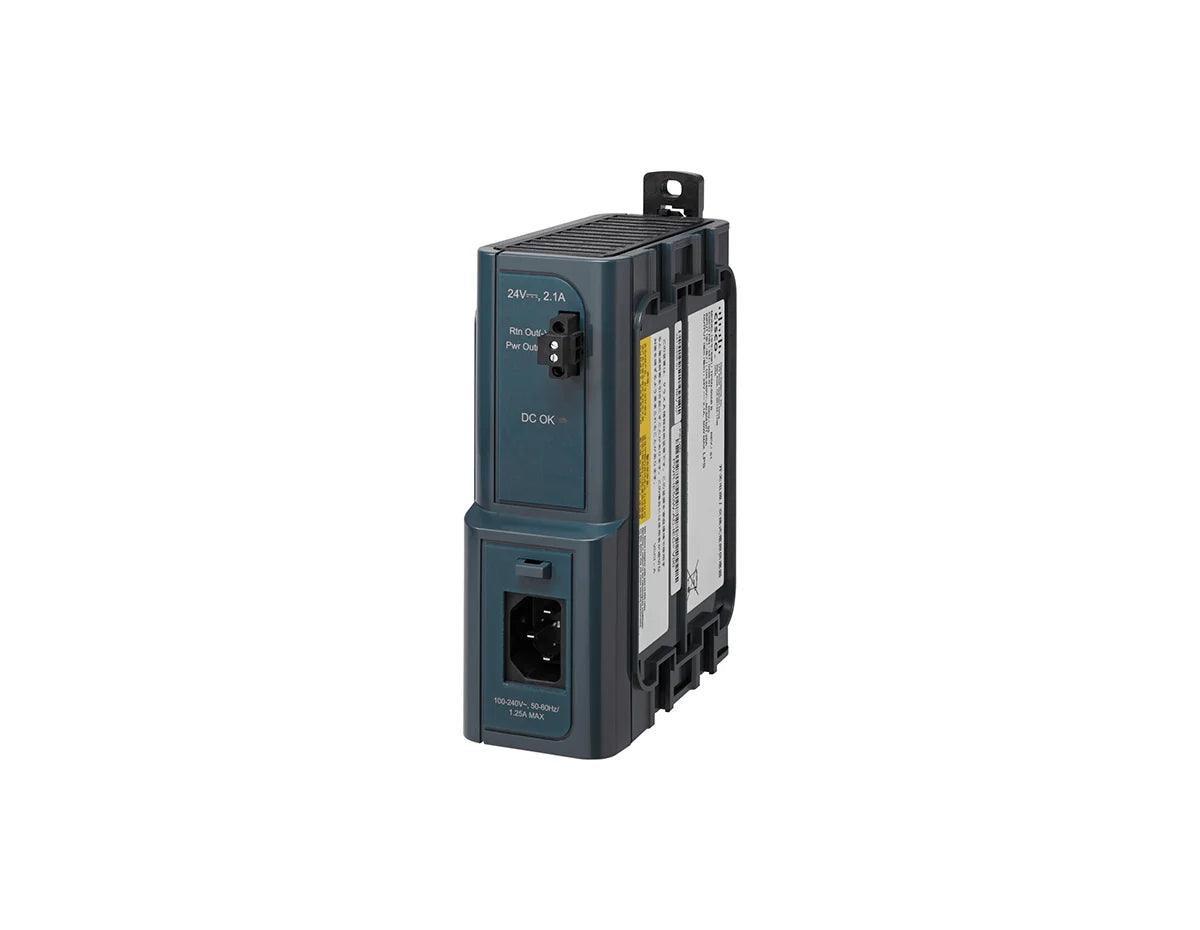

Cisco PWR-IE50W-AC-IEC Power Supply

Cisco's industrial din-rail power supply portfolio provides versatile options for powering industrial networking equipment. They support high-capacity Power over Ethernet (PoE) and are available with conformal coating options. The PWR-IE50W-AC-IEC is 50W AC to DC power supply with IEC connector specific to Cisco Industrial Ethernet (IE)3000 series switches which has 50 watts of power and is DIN rail-mountable.
