Description
Overview

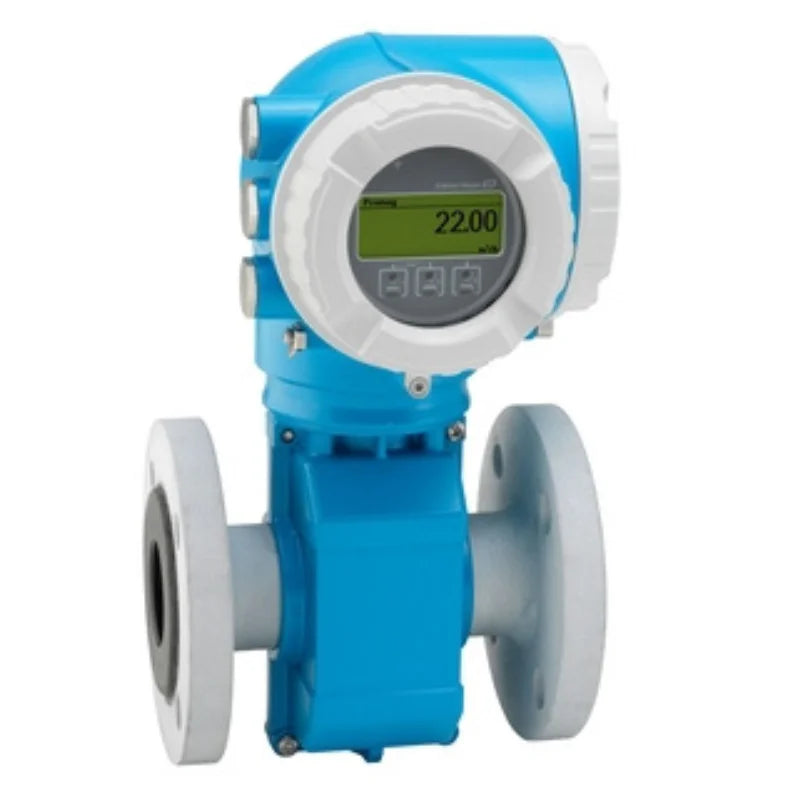

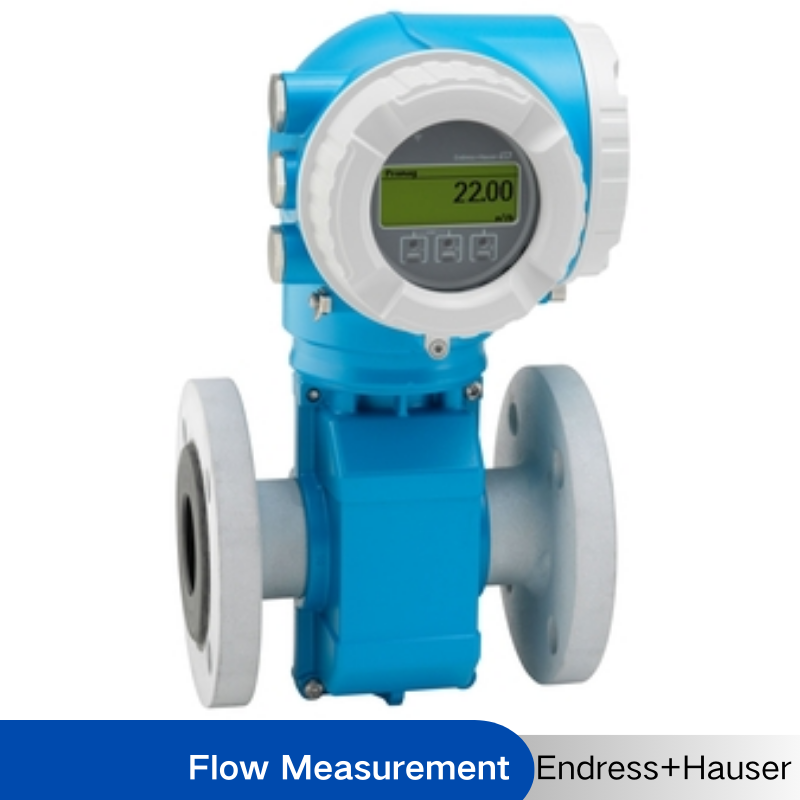

Endress+Hauser Proline Promag W300 Electromagnetic Flowmeter is a specialist for demanding water and wastewater applications with a compact, easily accessible transmitter.
Specs at a glance
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d) Medium temperature range Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F) Max. process pressure PN 40, Class 300, 20K Wetted materials Liner: Polyurethane; Hard rubber, PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Field of application
The premium device for water and wastewater measurement Promag W 300 was designed for reliable use in hazardous areas and under harsh conditions. Its compact transmitter offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity * Dedicated to the measurement of industrial or municipal water and wastewater
* International drinking water approvals * Degree of protection IP68 (Type 6P enclosure) * Compact dual-compartment housing with up to 3 I/Os * Backlit display with touch control and WLAN access * Remote display available
Benefits
* Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss * Flexible engineering – sensor with fixed or lap-joint process connections * Long-term operation – robust and completely welded sensor * Improved plant availability – sensor compliant with industry-specific requirements * Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet * Reduced complexity and variety – freely configurable I/O functionality * Integrated verification – Heartbeat Technology
Specification
Model Number
Proline Promag W 300
Measuring principle
Electromagnetic
Product headline
Specialist for demanding water and wastewater applications with a compact, easily accessible transmitter. Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss. Dedicated to the measurement of industrial or municipal water and wastewater .
Sensor features
Flexible engineering – sensor with fixed or lap-joint process connections. Long-term operation – robust and completely welded sensor. Improved plant availability – sensor compliant with industry-specific requirements. International drinking water approvals.
Transmitter features
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)
Max. process pressure
PN 40, Class 300, 20K
Medium temperature range
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Ambient temperature range
Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material
DN 25 to 300 (1 to 12"): AlSi10Mg, coated DN 25 to 2400 (1 to 90"): Carbon steel with protective varnish Sensor connection housing (standard): AlSi10Mg, coated Sensor connection housing (option): Polycarbonate; 1.4409 (CF3M) similar to 316L
Transmitter housing material
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
Display/Operation
4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available
Outputs
3 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs
Status input 4-20 mA input
Digital communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power supply
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals
ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
Product safety
CE, C-tick, EAC marking
Functional safety
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine approvals and certificates
LR approval, DNV approval, ABS approval, BV approval
Pressure approvals and certificates
CRN, PED
Material certificates
3.1 material
Hygienic approvals and certificates
ACS, KTW/W270, NSF 61, WRAS BS 6920
