Description
Overview

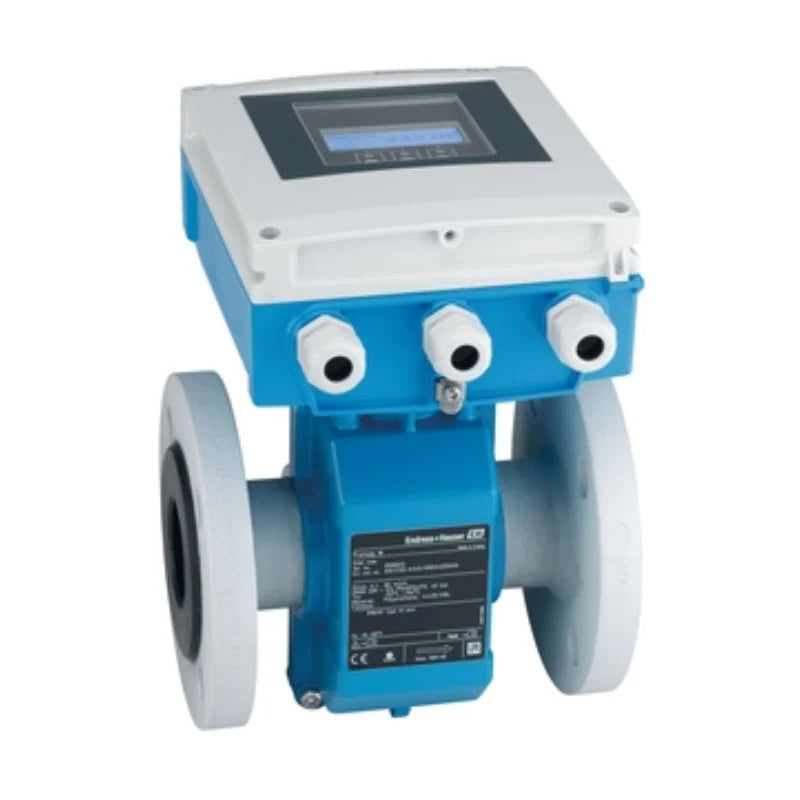

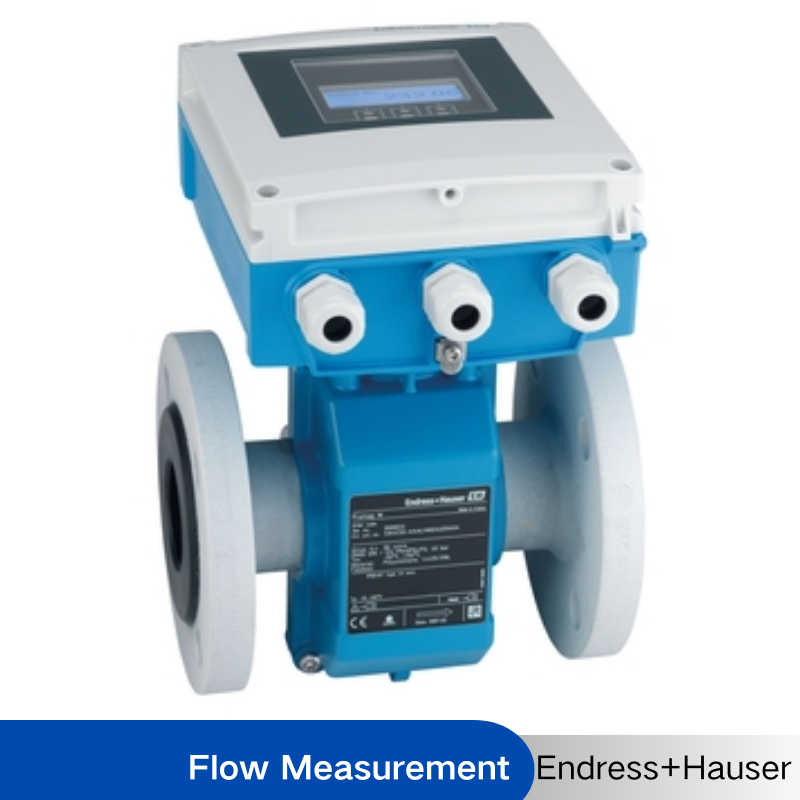

Endress+Hauser Proline Promag W400 Electromagnetic Flowmeter is a versatile standard flowmeter for the water and wastewater industry.
Specs at a glance
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d) Medium temperature range Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F) Max. process pressure PN 40, Class 300, 20K Wetted materials Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F) Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Field of application
With its international approvals for custody transfer as well as drinking water, Promag W serves the broadest variety of applications. It is available as both compact or remote version. Promag W 400 saves time and costs thanks to the broad functionality of its transmitter optimized for Water & Wastewater. In addition, Heartbeat Technology enables measurement reliability and compliant verification.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity * Ideal for water measurement , e.g. drinking water, utility water and industrial/municipal wastewater
Device properties * International drinking water approvals * Degree of protection IP68 (Type 6P enclosure) * Approved for custody transfer to MI-001/OIML R49 * Transmitter housing made of durable polycarbonate or aluminium * WLAN access * Integrated data logger: measured values monitoring
Benefits
* Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss * Flexible engineering – sensor with fixed or lap-joint process connections * Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation * Improved plant availability – sensor compliant with industry-specific requirements * Safe operation – no need to open the device * Time-saving local operation without additional software and hardware – integrated web server * Integrated verification and build-up detection – Heartbeat Technology
Specification
Model Number
Proline Promag W 300
Measuring principle
Electromagnetic
Product headline
Versatile standard flowmeter for the water and wastewater industry. Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss. Ideal for water measurement, e.g. drinking water, utility water and industrial/municipal wastewater.
Sensor features
Flexible engineering – sensor with fixed or lap-joint process connections. Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation. Improved plant availability – sensor compliant with industry-specific requirements. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure). Approved for custody transfer to MI-001/OIML R49.
Transmitter features
Safe operation – no need to open the device due to display with touch control, background lighting. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Transmitter housing made of durable polycarbonate or aluminium. WLAN access. Integrated data logger: measured values monitoring.
Nominal diameter range
DN 25 to 3000(1 to 120")
Wetted materials
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F) Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)
Max. process pressure
PN 40, Class 300, 20K
Medium temperature range
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Ambient temperature range
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Sensor housing material
DN 25 to 300 (1 to 12"): AlSi10Mg, coated DN 25 to 3000 (1 to 78"): Carbon steel with protective varnish Sensor connection housing (standard): AlSi10Mg, coated Sensor connection housing (option): Polycarbonate
Transmitter housing material
Polycarbonat; AlSi10Mg, coated
Degree of protection
Compact version: IP66/67, type 4X enclosure Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5‐M/Im1/Im2/Im3 Transmitter remote version: IP66/67, Type 4X enclosure
Display/Operation
4‐line backlit display with touch control (operation from outside) Configuration via local display, web browser and operating tools possible
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR Custody transfer according to MI‐001 or OIML R49 (optional class I in combination with 0DN inlet run)
Pressure approvals and certificates
CRN
Material certificates
3.1 material
Hygienic approvals and certificates
Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920
