Description
Overview
Specs at a glance
* Accuracy ：Standard: 0.05% Platinum: up to 0.025% * Process temperature ：-40°C...125°C(-40°F...257°F) * Pressure measuring range ：400 mbar...700 bar (5.8 psi...10.500 psi) * Main wetted parts ：Alloy C276；316L；Rhodium * Material process membrane : 316L, AlloyC;Rhodium> Gold * Measuring cell : 400 mbar...700 bar(5.8 psi...10.500 psi)
Application

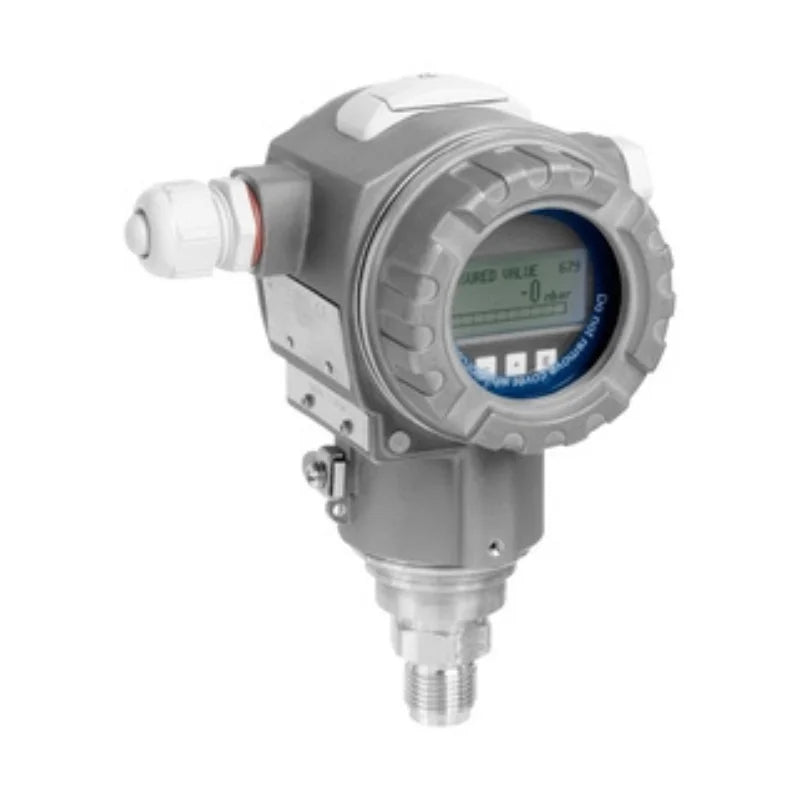

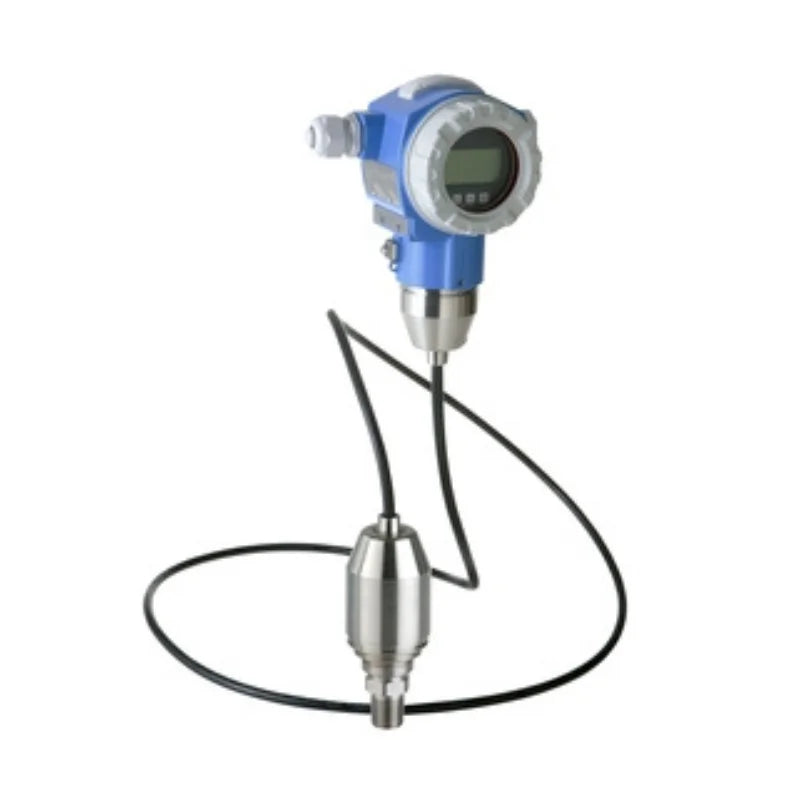

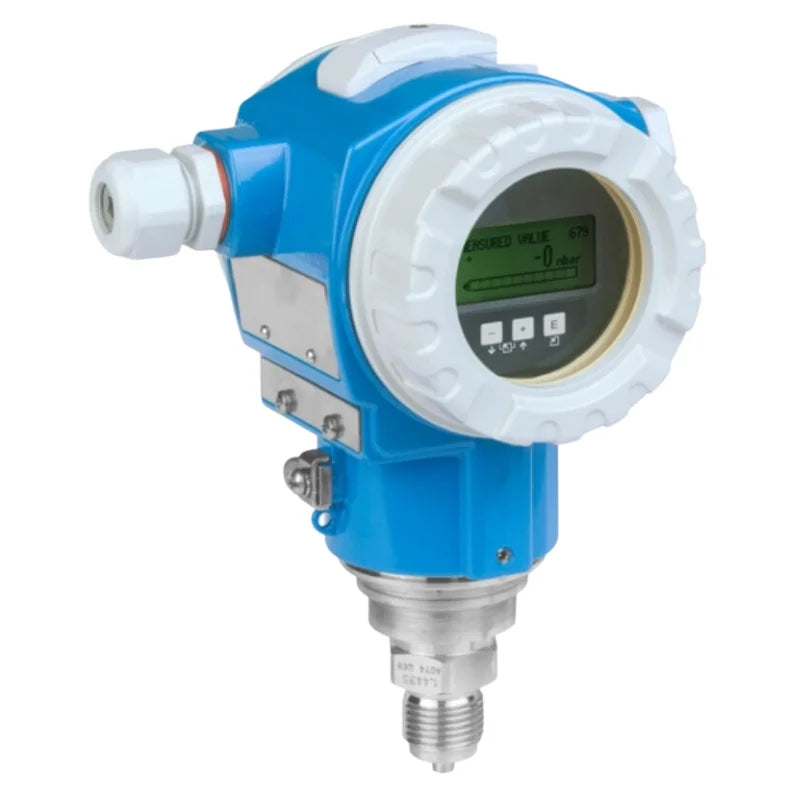

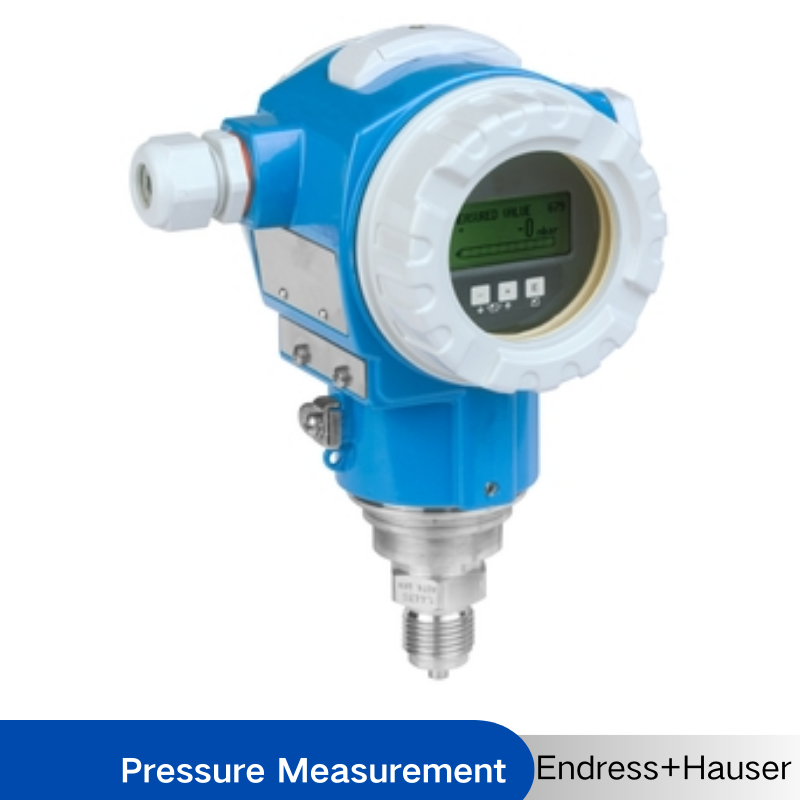

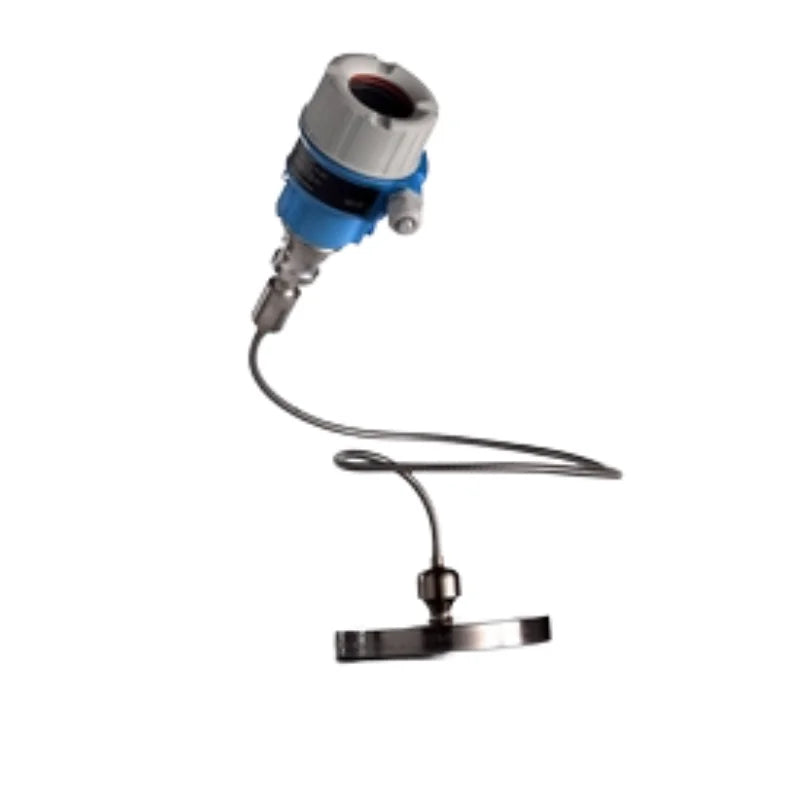

The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure,level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.
Two chamber aluminum or stainless steel (316L) housing. * Process connections: Threads and flange connections * Process temperature: -40 to +125°C (-40 to +257°F) * Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi) * Accuracy: ±0.05%, "Platinum" ±0.025% * International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
Benefits

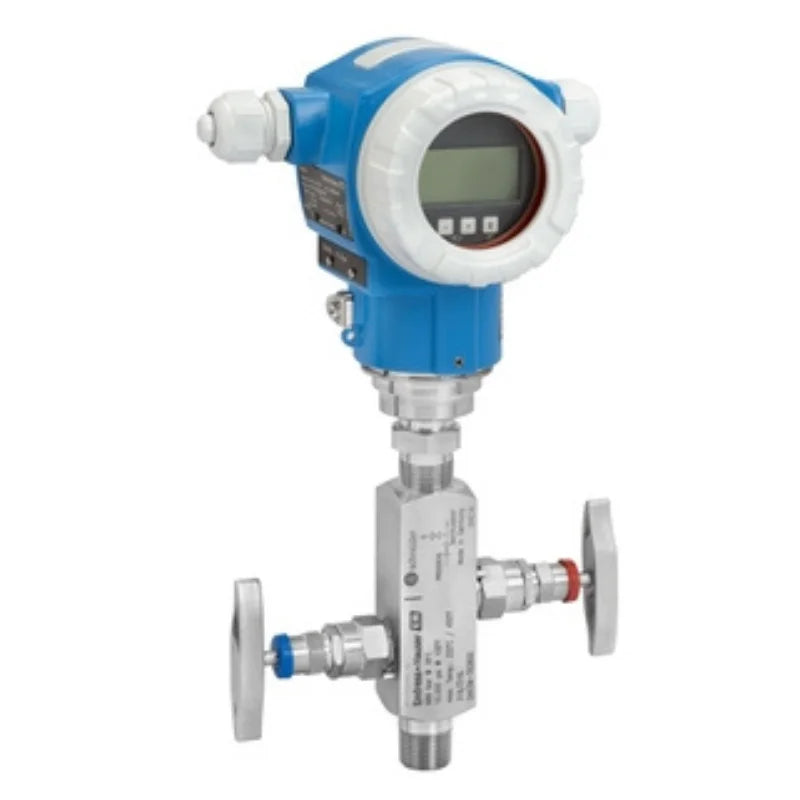

* Best accuracy, reproducibility and long-term stability * Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508 * Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus * HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics * Overload-resistant and function-monitored from the measuring cell to the electronics * Available with mounted manifolds: always fit, always tested for leaks * Seamless and independent system integration (HART/PA/FF)
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Germany
Brand Name
Endress+Hauser
Model Number
Cerabar PMP71
Measuring Principle
Absolute and gauge pressure
Characteristic
Digital transmitter with piezoresistive sensor and welded metallic membrane Modular transmitter Long term stability Enhanced safety via self diagnostic functionsSecondary process barrier
Supply Voltage
4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex)
Reference Accuracy
Standard: 0.05% Platinum: up to 0.025%
Long Term Stability
0.05 % of URL/ year 0.07 % of URL/ 5 years 0.1 % of URL/ 10 years
Process Temperature
-40°C...125°C (-40°F...257°F)
Ambient Temperature
-50°C...85°C (-58°F...185°F)
Measuring Cell
400 mbar...700 bar (5.8 psi...10.500 psi) relative/ absolute
4...20 mA HART 1- 5V DC Low Power PROFIBUS PA FOUNDATION Fieldbus
Certificates / Approvals
ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC, UK Ex
Safety Approvals
SIL
Design Approvals
EN10204-3.1 NACE MR0175
Marine Approvals
GL/ABS
Drinking Water Approvals
NSF
Specialities
Diagnostic functions
Successor
PMP71B
