Description
Overview

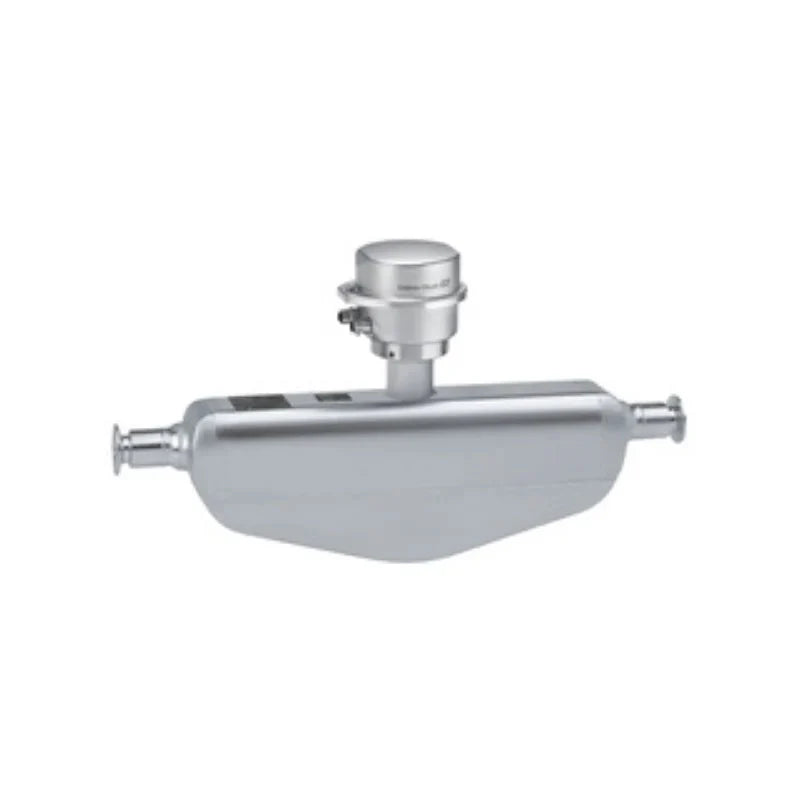

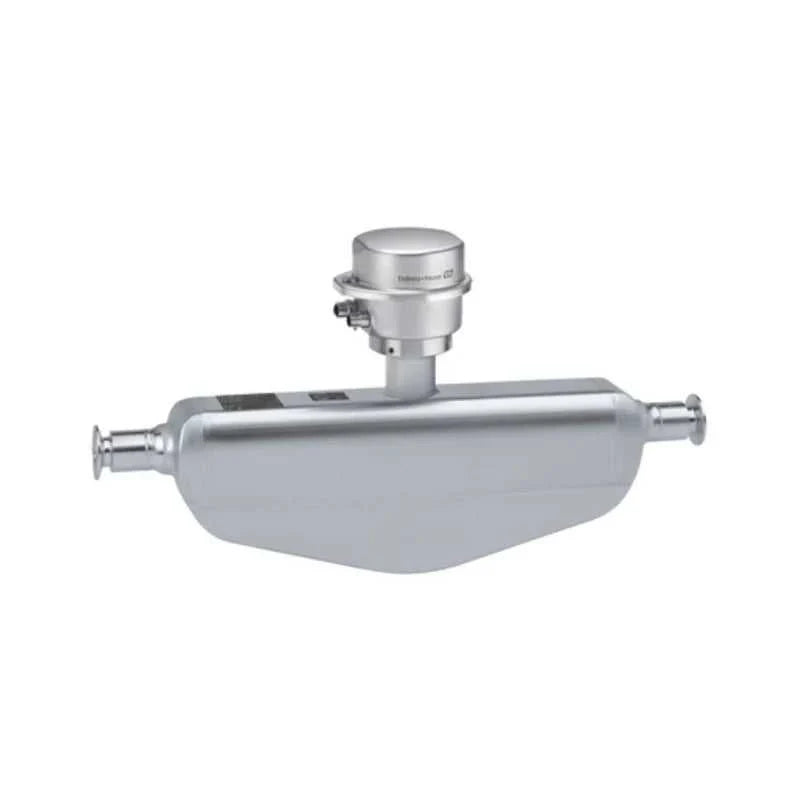

Endress+Hauser H100 Coriolis Flowmeter 8P1B 80P 83P. The chemically resistant single-tube flowmeter with an ultra-compact transmitter.
Specs at a glance
* Max. measurement error Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Density (liquid): ±0.0005 g/cm³ * Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min) * Medium temperature range Standard: –50 to +150 °C (–58 to +302 °F) Option: –50 to +205 °C (–58 to +401 °F) * Max. process pressure PN 63, Class 300, 40K * Wetted materials Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)
Application
Promass P 100 offers the enhanced performance of a bent tube meter and the drainability of a straight tube meter without any compromise. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Designed for applications in sterile environments where space is a premium, Promass P 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers. * Measuring principle operates independently of physical fluid properties such as viscosity or density * Dedicated for applications under sterile conditions in the life sciences industry. Device properties * ASME BPE, 3-A and EHEDG conform & low delta ferrite * Electropolished measuring tube in 1.4435 (316L) * Fast recovery from CIP/SIP * Robust, ultra-compact transmitter housing * High ingress protection: IP69K * Local display available
Benefits
* Highest process quality – fully compliant to industry requirements * Fewer process measuring points – multivariable measurement (flow, density, temperature) * Space-saving installation – no in/outlet run needs * Space-saving transmitter – full functionality on smallest footprint * Time-saving local operation without additional software and hardware – integrated web server * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Switzerland
Brand Name
Endress+Hauser
Model Number
Promass P100
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Specialist for life sciences with an ultra-compact transmitter. Dedicated to applications under sterile conditions in the life sciences industry.
Sensor Features
Highest process quality – fully compliant to industry requirements. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. ASME BPE, 3‐A and EHEDG conform & low delta ferrite. Electropolished measuring tube in 1.4435 (316L). Fast recovery from CIP/SIP.
Transmitter Features
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation)
Pressure Approvals And Certificates
PED, CRN
Material Certificates
3.1 material
Hygienic Approvals And Certificates
3-A, EHEDG, ASME BPE, ISPE, cGMP
