[shortdesc]
- Managed, Rack-mountable, 24 x 1G ports, 4 x 1G SFP Uplinks, No PoE (Data Only), Layer 2
[/shortdesc]
[properties]
| Properties |
HPE Aruba R8N88A |
| Description |
Aruba CX 6000 24G 4SFP Switch |
| Product Family |
CX6000 Series |
| Product Type |
Ethernet Switch |
| I/O ports and slots |
24x 10/100/1000BASE-T Ports |
| 4x 1G SFP ports |
1x USB-C Console Port
1x USB Type-A Host port |
| Electrical characteristics |
| Frequency |
50/60 Hz |
| Voltage |
100 - 127 / 200 - 240 VAC |
| Current |
0.6 A / 0.4 A |
| Power Consumption (230 VAC) |
Idle: 15.4W
Max Power (w/o PoE): 33W |
| Power supply |
Fixed power supply |
| Dimensions (H x W x D) |
4.4 x 44.2 x 20.1 cm (1.73 x 17.4 x 7.92 in) |
| Weight |
2.6 kg (5.78 lbs) |
| Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting. |
[/properties]
[specifications]
| Specifications |
R8N88A |
| CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz
|
| Memory and Flash |
8 GB DDR3
16 GB eMMC |
| Packet Buffer |
1 MB |
| Performance |
| Model Switching Capacity |
56 Gbps |
| Model Throughput Capacity |
41.6 Mpps |
| Average Latency (LIFO-64-bytes packets) |
1 Gbps: 1.5 μSec |
| Switched Virtual Interfaces (dual stack) |
16 |
| IPv4 Host Table (ARP) |
1,024 |
| IPv6 Host Table (ND) |
512 |
| IPv4 Unicast Routes |
512 |
| IPv6 Unicast Routes |
512 |
| MAC Table Capacity |
8,192 |
| IGMP Groups |
512 |
| MLD Groups |
512 |
| IPv4/IPv6/MAC ACL Entries (ingress) |
256 / 128 / 256 |
| Operating temperature |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating relative humidity |
15% to 95% at 104°F (40°C) noncondensing |
| Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Nonoperating/Storage relative humidity |
15% to 90% @ 149°F (65°C) noncondensing |
| Altitude |
Sound Power, LWAd = 3.9 Bel
Sound Pressure, LpAm (Bystander) = 20.9 dB |
| Acoustic |
LWAd = 3.7 Bel
LpAm (Bystander) = 23 Db |
| Safety |
IEC / EN 62368-1: 2014
IEC / EN 62368-1: 2018
UL 62368-1: 2014, 2nd Ed.,
CSA C22.2 No. 62368-1:14, 2nd Ed. |
| Emissions |
VCCI-CISPR 32, Class A
CNS 15936, Class A
FCC CFR 47 Part 15, Class A;
EN 55032:2015 / A11:2020 /
CISPR-32, Class A
ICES-003 Issue 7: 2020, Class A
AS/NZS CISPR 32: 2015, Class A |
| Lasers |
IEC / EN 60825-1:2014, Class 1
Class 1 Laser Products / Laser
Klasse 1
(Applicable for accessories - Optical
Transceivers only) |
| Immunity |
CISPR 35: 2016
EN 55035:2017 / A11:2020
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3 |
[/specifications]
[accesories]
| Transceivers |
| J4858D |
Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D |
Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| Accessories |
| JL742A |
Aruba X511 12-port Cable Guard |
| J9583B |
Aruba X414 1U Universal 4-post Rack Mount Kit |
| R9G48A |
Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A |
Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A |
Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A |
Aruba USB-C to USB-C PC-to-Switch Cable |
[/accesories]

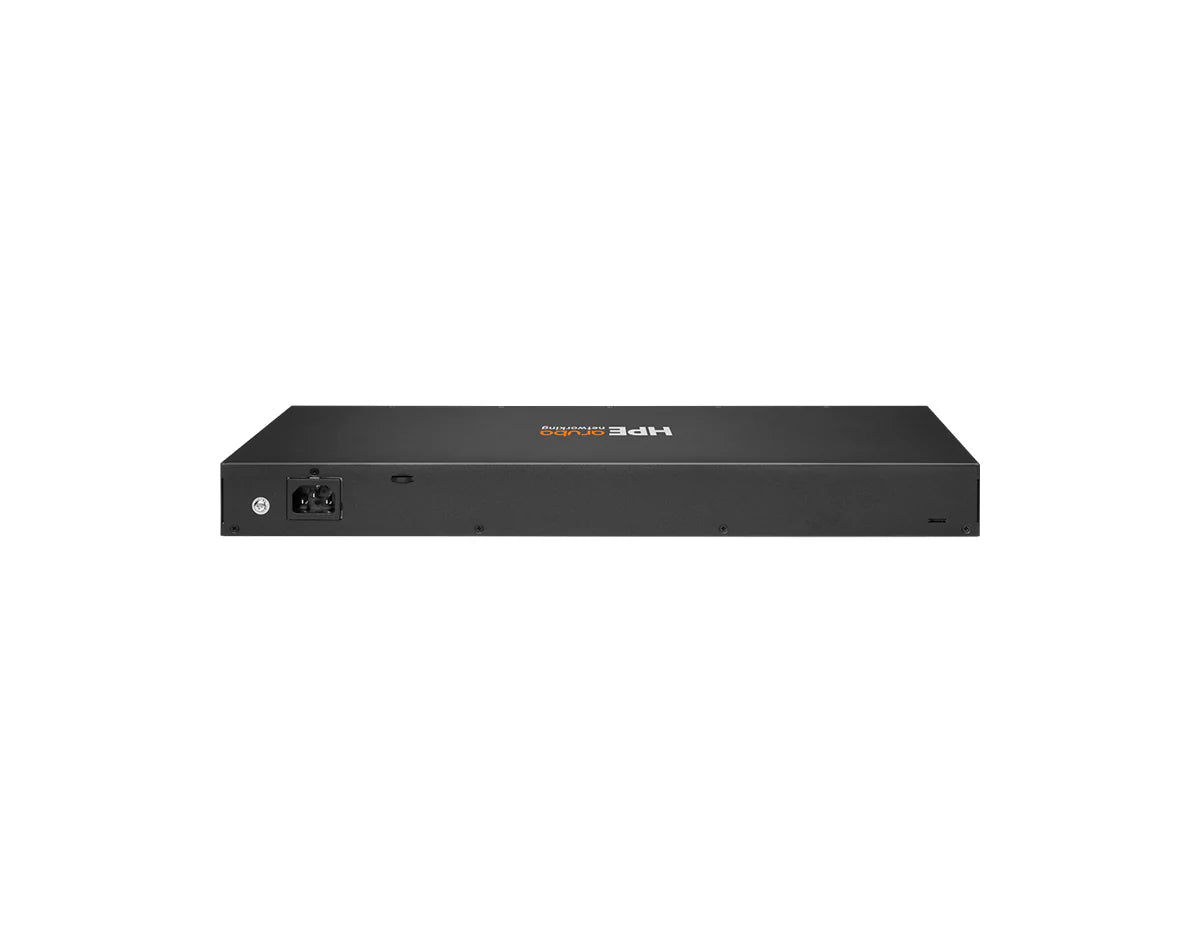

HPE Aruba Networking CX 6000 24G 4SFP Switch (R8N88A)
The HPE Aruba CX 6000 24G 4SFP Switch (R8N88A) is an entry-level Layer 2 Gigabit Ethernet switch designed for branch offices, midsize businesses, and small enterprises. With 24 autosensing Gigabit ports and 4 dedicated 1G SFP uplinks, it delivers reliable wired connectivity and simple scalability for modern networks.
Built on the Aruba AOS-CX operating system, the CX 6000 provides enterprise-grade performance, static routing, and enhanced security, all managed easily through Aruba Central, Web GUI, CLI, or SNMP. Compact and energy-efficient, it’s the ideal solution for cost-conscious organizations that need secure, dependable switching without unnecessary complexity.
Key Features:
-
24 x Gigabit Ethernet Ports: Provides reliable and fast connectivity for wired devices.
-
4 x SFP Uplink Ports: High-speed uplinks for scalable fiber connectivity.
-
Layer 2 Switching: Offers VLAN support, QoS, and traffic prioritization for improved performance.
-
Energy-Efficient Operation: Complies with energy-saving standards to reduce power consumption during low activity.
-
Advanced Security Features: Built-in ACLs and 802.1X authentication for secure network access.
Technical Overview:
-
Recommended for: Small to mid-sized businesses, branch offices, and educational institutions.
-
Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports, 4 x SFP uplink ports.
-
Switching Capacity: 56 Gbps.
-
Forwarding Rate: 41.6 Mpps.
-
Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
-
Energy Efficiency: Compliant with industry energy-saving standards.
You can check the related tab for the HPE Aruba 6000 24G 4SFP Switch (R8N88A) datasheet.
