[shortdesc] 5 Gbps firewall, 3 Gbps threat prevention, 298K sessions, 8×1G RJ45 + 4×1G/2.5G PoE + 4×1G SFP, 181W PoE, Zero Touch Provisioning [/shortdesc]
[properties]
| Model |
PA-545-POE |
| Product Type |
Next-Generation Firewall (NGFW |
| Firewall Throughput (Appmix |
5.0 Gbps |
| Threat Prevention Throughput (Appmix |
3.0 Gbps |
| IPsec VPN Throughput |
3.0 Gbps |
| Max Concurrent Sessions |
298K |
| New Sessions per Second |
55K |
| Virtual Systems (Base / Max |
1 / 2 |
| Interfaces (Data |
1G RJ45 (8; 1G/2.5G RJ45 PoE (4; 1G SFP (4 |
| Management I/O |
10/100/1000 Mgmt (1; USB (1; RJ45 Console (1; USB-C Console (1 |
| Storage Capacity |
120 GB |
| PoE |
Total budget 181 W; PoE ports 4; up to 90 W per port |
| Max Power Consumption |
336 W (with 181 W PoE output |
| Max Heat (BTU/hr |
1145 (with 181 W PoE output |
| Input Voltage / Frequency |
100–240 VAC, 50–60 Hz |
| Max Current Consumption |
6 A @ 54 VDC |
| Dimensions (H × D × W |
1.75″ H × 12.6″ D × 16.1″ W (43.9 mm H × 314 mm D × 409 mm W |
| Weight (Standalone / As Shipped |
13.5 lb / 19.8 lb |
| Operating Temperature |
0–40 °C (32–104 °F |
| Non-operating Temperature |
−20–70 °C (−4–158 °F |
| Cooling |
Passive |
| Safety |
cTUVus, CB |
| EMI |
FCC Class A, CE Class A, VCCI Class A |
[/properties]
[specifications]
| Interface Modes |
L2, L3, TAP, Virtual Wire (transparent |
| Routing |
OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCPv4 server; PPPoE and DHCP clients |
| Multicast |
PIM-SM, PIM-SSM, IGMPv2/v3 |
| Advanced SD-WAN |
Path quality measurement, bandwidth monitoring, manual key/IKEv1/IKEv2, post-quantum PPK, multi-VR/LR, Prisma Access Hub, ADEM |
| IPv6 |
Dual-stack and IPv6-only; IPv6 geolocation, OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server |
| IPsec / SSL VPN |
Key exchange: Manual, IKEv1, IKEv2; Encryption: 3DES, AES-128/192/256; Auth: MD5, SHA-1/256/384/512; GlobalProtect gateway and portals* |
| TLS/Decryption (Overview |
Inspection of SSL/TLS including TLS 1.3; classic key exchanges (RSA, ECDHE, DHE and post-quantum ML-KEM/HQC supported |
| Management & Operations |
Strata Cloud Manager with AI-assisted operations and best-practice recommendations |
[/specifications]
[accesories]
| Compatible Power Adapters |
PAN-PWR-350W-54V-AC-A (spare power adapter |
| Rack Mount Options |
PAN-1RU-4POST-RACK-12 (1RU 4-post rack for one PA-545-POE and two power adapters |
[/accesories]
Enterprise-Grade Security Meets Edge Simplicity

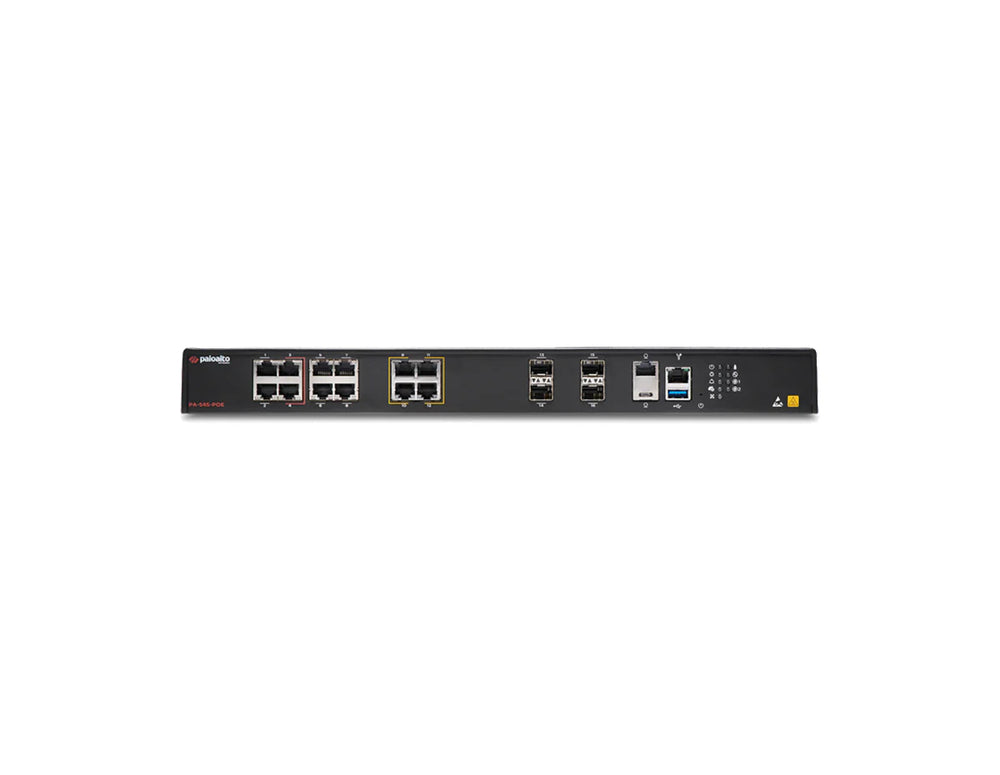

The Palo Alto Networks PA-545-PoE delivers advanced next-generation firewall performance with integrated Power over Ethernet (PoE for branch offices and midsize enterprises. Built on the powerful Strata™ platform and driven by Precision AI®, it combines real-time threat prevention, streamlined Zero Touch Provisioning (ZTP, and energy-efficient operation in a single 1RU appliance.
Key Benefits & Features
AI-Driven Threat Prevention
Powered by Precision AI®, the PA-545-PoE analyzes and blocks zero-day malware, ransomware, and phishing attempts with inline signatureless attack prevention, stopping file-based attacks and never-before-seen threats. With 3 Gbps threat prevention throughput, it safeguards users, applications, and data across hybrid environments.
High-Performance, PoE-Enabled Connectivity
Delivering up to 5 Gbps firewall throughput and a total PoE budget of 181 W across four ports (max 90 W each, the PA-545-PoE consolidates security and power for IP phones, cameras, and access points—ideal for distributed sites.
Zero Touch Provisioning & Unified Management
Deployment is effortless with Zero Touch Provisioning (ZTP and centralized visibility through Strata Cloud Manager. Manage firewalls, SD-WAN, and SASE environments under one unified, AI-powered console.
Quantum-Ready Encryption & SSL/TLS Inspection
Future-proof your network with post-quantum cryptography (PQC support for SSL/TLS and VPNs, while maintaining visibility into encrypted traffic without performance compromise.
Energy-Efficient and Silent Operation
Designed for office and retail deployments, the PA-545-PoE features passive cooling and efficient 336 W max power draw (including PoE, ensuring low noise and operational reliability.
Ideal Use Cases
- Enterprise branch and retail edge sites needing unified NGFW + PoE connectivity
- Mid-market organizations deploying secure SD-WAN with integrated policy control
- IoT-rich environments powering PoE endpoints under a single security platform
- IT teams pursuing zero-touch, AI-assisted management at the edge
Technical Specifications
-
Firewall Throughput (AppMix: 5.0 Gbps
-
Threat Prevention Throughput: 3.0 Gbps
-
IPsec VPN Throughput: 3.0 Gbps
-
Max Concurrent Sessions: 298,000
-
New Sessions per Second: 55,000
-
Virtual Systems (Base/Max: 1 / 2
-
Interfaces: 8 × 1 G RJ45, 4 × 1 G / 2.5 G PoE, 4 × 1 G SFP
-
PoE Budget: 181 W (90 W max per port
-
Storage: 120 GB SSD with TPM security
-
Cooling: Passive (fanless
-
Dimensions: 1.75″ H × 12.6″ D × 16.1″ W / 13.5 lbs
-
Power: 336 W max (6 A @ 54 VDC
-
Certifications: FCC Class A, CE Class A, VCCI Class A
-
Operating Temperature: 32°F – 104°F (0°C – 40°C
Secure. Scalable. Ready for the Future.
Protect your distributed edge with the PA-545-PoE NGFW, the perfect balance of performance, AI-driven defense, and integrated PoE flexibility.
