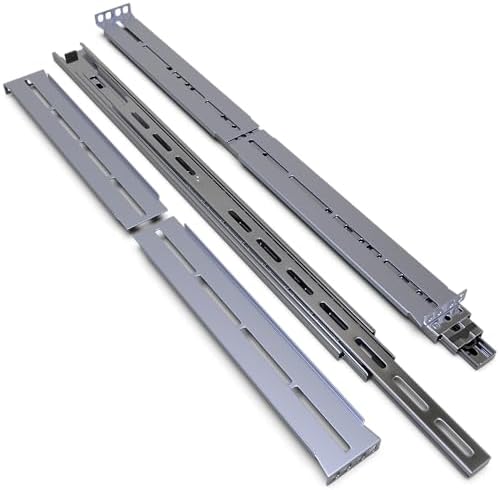

Product description The TP1821 adjustable sliding rail kit for rackmount computers and chassis will accommodate rack-mountable appliances for server cabinets. This rail kit is designed for mounting larger, heavier equipment, such as servers or hard disk arrays to a server rack. The rails are built from quality materials and are capable of holding weight up to 90 pounds. Ball bearing offer smoother movement, reduce wear and tear to the rail and are quieter. The 2U to 8U compatible server rack rails come with universal assembly holes. The product contains the rails along with all necessary hardware needed for setup. Compatible with most standard size cabinets and racks, two-post or four-post, 18” to 25” deep. Sliding rails allow you to fully extend your server out of the rack for convenient access, without having to remove it from the rack. No additional assembly is needed, rails can be attached to your rack using screws provided in the package. TP1821 TP1811 TP1812 TP1822 Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.0 out of 5 stars 26 3.6 out of 5 stars 28 3.2 out of 5 stars 20 3.3 out of 5 stars 22 Price $64.88$64.88 $56.84$56.84 $59.98$59.98 $69.98$69.98 Length 18 in. 18 in. 26 in. 26 in. Size Supported 2U-8U 1U-4U 1U-4U 2U-8U Weight Supported 90 lbs 70 lbs 100 lbs 130 lbs Mountable on any 19" rack ✓ ✓ ✓ ✓ Toolless installation w/ all hardware included ✓ ✓ ✓ ✓ Depth 18" to 25" 18" to 25" 26" to 40" 26" to 40" From the brand Previous page Tupavco was started more than a decade ago to make shopping for network equipment easier and more affordable. Our goal is to provide customers with the best networking equipment possible, and to make the shopping experience easy and enjoyable. We work around the clock to provide products our buyers can rely on, and to resolve any issues with our products. We try to not just provide networking equipment - but a connection! How did we get our start? We got started selling electronics out of our small apartment, trying to make a name for our brand over 10 years ago on Amazon. Tupavco has since expanded to a refined operation with many specialists that help you have the best shopping experience possible for networking equipment. What makes our products unique? Many of our products have extra features or compatibilities that help them stand out, and as enthusiasts for electronic equipment ourselves, we know what you need and make sure to deliver you the piece of equipment that will complete or improve your setup. Featured Tupavco Products Next page
Features
- Adjustable mounting depth for rear posts from 18” to 25”
- Slide length of 18” plus an additional 18” when slide is extended
- The TP1821 rails are rated for 90 lbs maximum load capacity
- Suitable for 2U to 8U mounted device height with universal assembly holes
- The mounted device has to be a minimum of 10” in length
- TIP: For more space (wide) install ears (L bracket) inside (behind) the vertical rack U post (not to wrap ears around the post) and reverse mount cage nuts (screw it from the inside) so the mounting bracket flush even with the end of the U-post
- The device mounted on the rails can be quickly detached using the plastic handle
- The bumper at the rear keeps the slide from moving when in retracted position
- Ball-bearing sliding rails that are temporarily lockable at three stages
- Toolless installation with all hardware included
Specifications
| product_dimensions |
18 x 1.97 x 0.51 inches |
| item_weight |
3.93 pounds |
| manufacturer |
Tupavco |
| asin |
B0B8MBP52K |
| item_model_number |
TP1821 |
| date_first_available |
September 26, 2022 |
