[shortdesc]
23.0kW 3-Phase, 0U Vertical, 30 C13 + 12 C19 Outlets, Active Metering & Alarms, Metered Monitoring
[/shortdesc]
[properties]
| Brand |
APC by Schneider Electric |
| Model |
AP8888 |
| Product Type |
NetShelter Metered Rack PDU |
| Form Factor |
0U Vertical |
| Dimensions (H x W x D |
72.01" x 2.20" x 2.01" (1829 x 56 x 51 mm |
| Weight |
22.3 lb (10.1 kg |
| Color |
Black |
| Number of Rack Units |
0U |
| Mounting Mode |
Rack-mounted (Vertical, Side Mountable |
| Cooling |
Passive |
[/properties]
[specifications]
| PDU Type |
Metered |
| Input Voltage |
400 V (3 Phase |
| Output Voltage |
240 V |
| Input Plug Type |
IEC 60309 60 A 3P+N+E |
| Input Frequency |
50/60 Hz |
| Line Rated Current |
32 A (Max 40 A |
| Load Capacity |
23,000 VA |
| Outlets |
30 × IEC C13, 12 × IEC C19 |
| Cord Length |
5.97 ft (1.82 m |
| Operating Temperature |
23–140 °F (-5–60 °C |
| Storage Temperature |
-13–149 °F (-25–65 °C |
| Operating Humidity |
5–95% non-condensing |
| Storage Humidity |
5–95% non-condensing |
| Operating Altitude |
0–10,000 ft |
| Storage Altitude |
0–50,000 ft |
| Compliance |
cUL Listed, UL Listed, VCCI Class A, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, RoHS, REACh |
| Warranty |
2 years repair or replace |
[/specifications]
[accessories]
| Installation Guide |
Included in the box |
| Rack Mounting Brackets |
Included in the box |
| Serial Configuration Cable |
Included in the box |
| Safety Guide |
Included in the box |
| Warranty Card |
Not specified |
[/accesories]
Overview

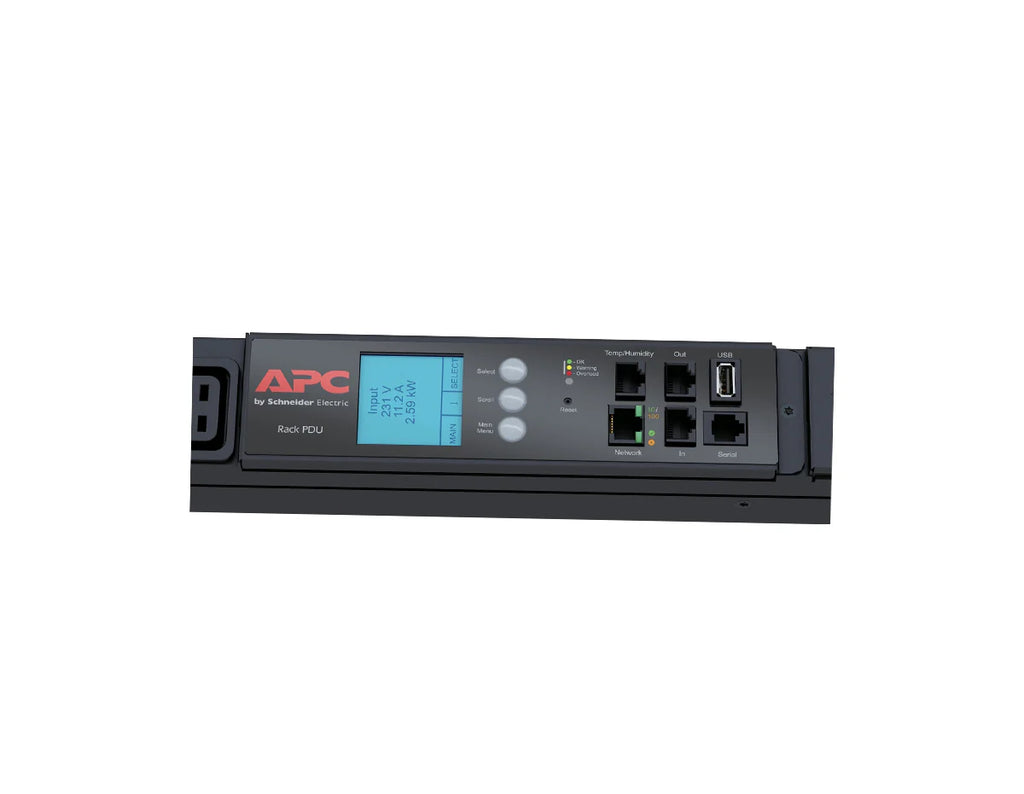

The APC AP8888 Metered Rack PDU provides 23.0kW of reliable three-phase power distribution in a 0U vertical form factor. Designed for enterprise and colocation data centers, it combines active metering with user-defined alarm thresholds to enable precise energy monitoring and overload protection. Its compact 0U design preserves valuable rack space while delivering advanced power visibility.
Key Features & Benefits
-
Active Metering: Real-time power data and thresholds support efficient capacity planning.
-
Alarm Thresholds: Alerts help prevent potential circuit overloads and downtime.
-
High Outlet Density: 30 C13 and 12 C19 outlets support diverse IT equipment.
-
0U Vertical Design: Maximizes rack space for servers and network hardware.
-
Remote Access: Configure and monitor via secure Web, SNMP, or Telnet; integrates with APC centralized platforms such as InfraStruxure Central.
Technical Deep Dive
The AP8888 uses a 400 V three-phase input and delivers 240 V output with a maximum load capacity of 23,000 VA. With 30 IEC C13 and 12 IEC C19 outlets, it supports a broad mix of servers, storage, and network equipment while maintaining balanced load distribution.
Metered monitoring provides granular visibility into energy usage, helping administrators right-size infrastructure and reduce operating costs. Configurable alarm thresholds add protection by issuing alerts on potential overload conditions.

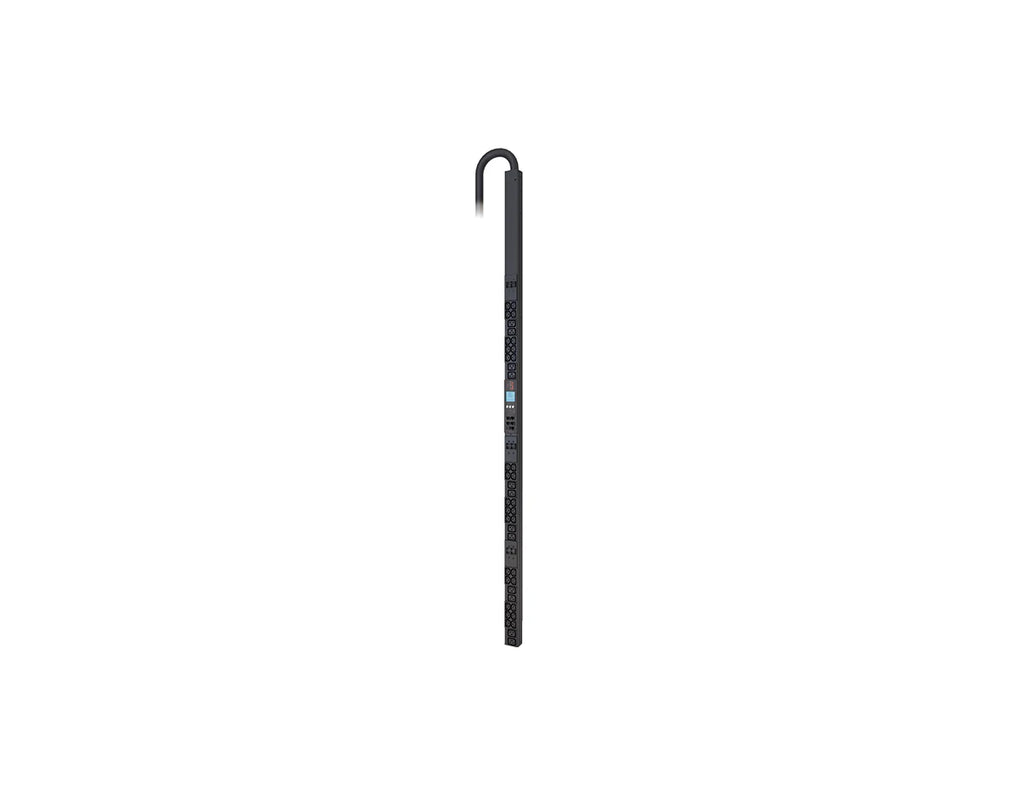

Its vertical 0U form factor integrates into standard racks without consuming rack units, enabling high-density deployments without compromising equipment space.
Ideal Applications
- Enterprise and colocation data centers
- High-density server racks
- Network distribution closets
- Remote energy monitoring scenarios
Frequently Asked Questions (FAQs
Q1: How is the AP8888 installed?
A: It mounts vertically in the rack’s zero-U space using the included brackets and installation guide.
Q2: What performance can I expect?
A: The unit provides up to 23.0kW (23,000 VA with 30 C13 and 12 C19 outlets. Actual performance depends on load balance and environment.
Q3: How is it managed remotely?
A: Management is available via secure Web, SNMP, or Telnet and integrates with APC platforms such as InfraStruxure Central.
