[shortdesc]
- Cisco C1200-48P-4X is a 48-port Gigabit PoE+ managed switch with four 10G SFP+ uplinks, a 375 W PoE budget, and Layer 3 static routing for high-throughput SMB access and aggregation.
[/shortdesc]
[properties]
| Property |
Details |
| Model |
C1200-48P-4X |
| Product Line |
Cisco Catalyst 1200 Series |
| Switch Type |
Managed Layer 2 with Layer 3 static routing |
| Port Configuration |
48 × 10/100/1000BASE-T (PoE+, 4 × 10G SFP+ |
| PoE Budget / Per-Port Max |
375 W total / up to 30 W per port (IEEE 802.3af/at |
| Switching / Forwarding |
176 Gbps / 130.94 Mpps |
| VLAN & L3 |
Up to 255 active VLANs; up to 32 static routes & 16 IP interfaces (SVIs |
| Link Aggregation |
IEEE 802.3ad LACP (up to 4 groups; up to 8 ports per group |
| QoS |
8 hardware queues per port; 802.1p/DSCP classification & remarking |
| Management |
Web GUI, CLI (SSH/Telnet, Cisco Business Dashboard, SNMP |
| Security |
802.1X, ACLs (IPv4/IPv6, DHCP snooping, DoS protection, port security |
| Form Factor |
1U rack-mountable |
| Dimensions (W × D × H |
445 × 350 × 44 mm (17.5 × 13.8 × 1.7 in |
| Weight |
≈ 5.43 kg (11.97 lb |
| Operating Temperature |
−5 °C to 50 °C (23 °F to 122 °F |
| Power |
Internal 100–240 V AC, 50/60 Hz |
| Cooling |
Active (fan-cooled |
[/properties]
[specifications]
| Specification |
Details |
| MAC Address Table |
8,000 entries |
| Packet Buffer |
1.5 MB (shared |
| Jumbo Frames |
Up to 9000 bytes (default MTU 2000 bytes |
| Multicast |
IGMP snooping v1/v2/v3; IGMP querier; ~255 groups |
| Standards |
IEEE 802.1D/w/s, 802.1Q, 802.1X, 802.3/ab/u/z, 802.3ad (LACP, 802.3af/at, 802.3az |
| Management I/O |
RJ-45 console and USB-C console/file management |
| Power Consumption (max |
≈ 462.8 W with full PoE load |
| MTBF |
≈ 856,329 hours (25 °C |
[/specifications]
[accesories]
| Accessory |
Details |
| CAB-CONSOLE-RJ45 |
Console cable, 6 ft, RJ-45 |
| CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= |
USB-C console cable |
| PWR-CLP |
Power cable restraining clip |
| RCKMNT-1RU-1K= |
19″ rack-mount kit for 24/48-port models |
[/accesories]

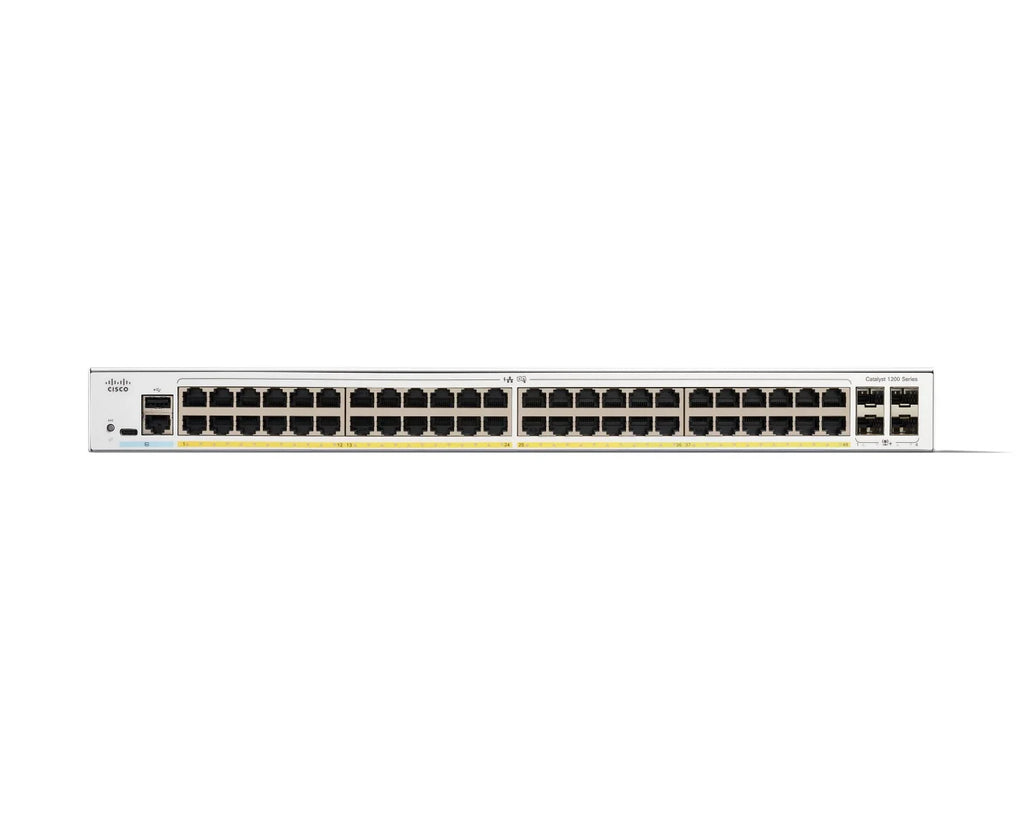

Cisco Catalyst C1200-48P-4X 48-Port PoE+ Switch with 4 SFP+
The Cisco C1200-48P-4X combines high-density PoE+ access with true 10G fiber uplinks to simplify SMB access and aggregation. It delivers 48 × 1G PoE+ downlinks (shared 375 W and 4 × 10G SFP+ uplinks on a non-blocking 176 Gbps fabric. Management is straightforward via Cisco Business Dashboard, web GUI, or CLI/SNMP, while built-in L2 features, L3 static routing, robust QoS, and comprehensive security controls let you segment, prioritize, and protect traffic for phones, APs, cameras, and edge devices.
Key Features:
-
48 × PoE+ access + 4 × 10G SFP+ uplinks: High-speed aggregation and flexible campus/branch designs.
-
Wire-speed architecture: 176 Gbps switching capacity and 130.94 Mpps forwarding.
-
Simple operations: Cisco Business Dashboard, web GUI, CLI (SSH, SNMP, and Plug-and-Play onboarding.
-
Layer 3 static routing: Route between VLANs with up to 32 static routes and 16 SVIs.
-
Enterprise security: 802.1X, ACLs (IPv4/IPv6, DHCP snooping, DoS protection, port security.
-
SMB-ready design: 1U chassis, universal AC power, and −5 to 50 °C operating range.
Technical Overview:
-
Interfaces: 48 × 10/100/1000 RJ-45 (PoE+; 4 × 10G SFP+.
-
Tables & buffers: 8K MAC; 1.5 MB shared packet buffer; jumbo frames up to 9000 bytes.
-
L2/LAG: STP/RSTP/MSTP; LACP up to 4 groups, 8 ports/group.
-
Multicast: IGMP snooping v1/v2/v3 with querier; ~255 multicast groups.
-
QoS: 8 hardware queues; 802.1p/DSCP classification, policing, and shaping.
-
Power & thermal: PoE budget 375 W; max system draw ≈ 462.8 W with PoE.
-
Physicals: 445 × 350 × 44 mm; ≈ 5.43 kg; 1U rack-mount; active cooling (fan-cooled.
