Overview

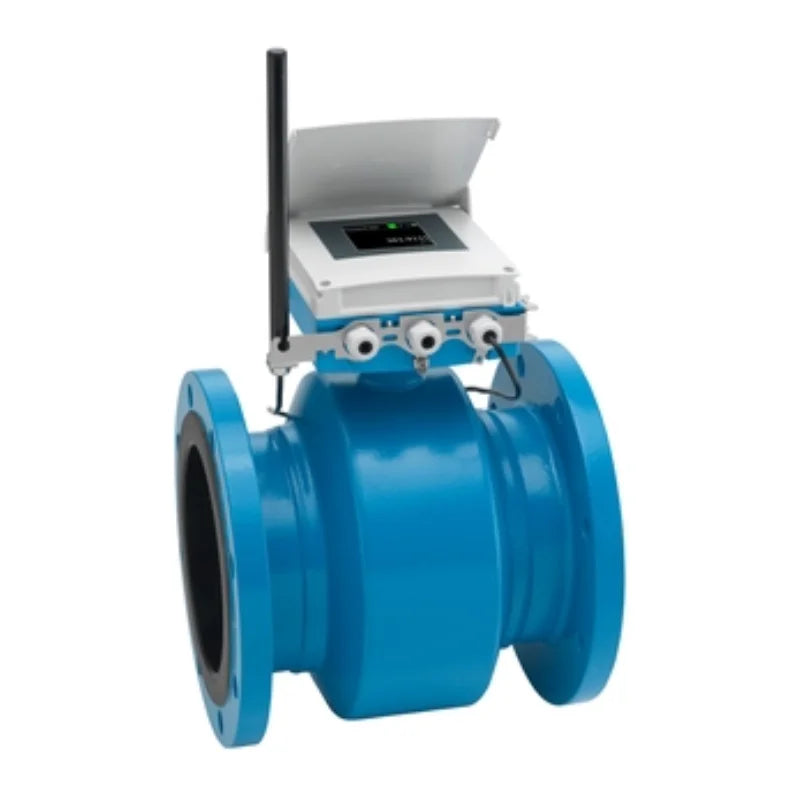

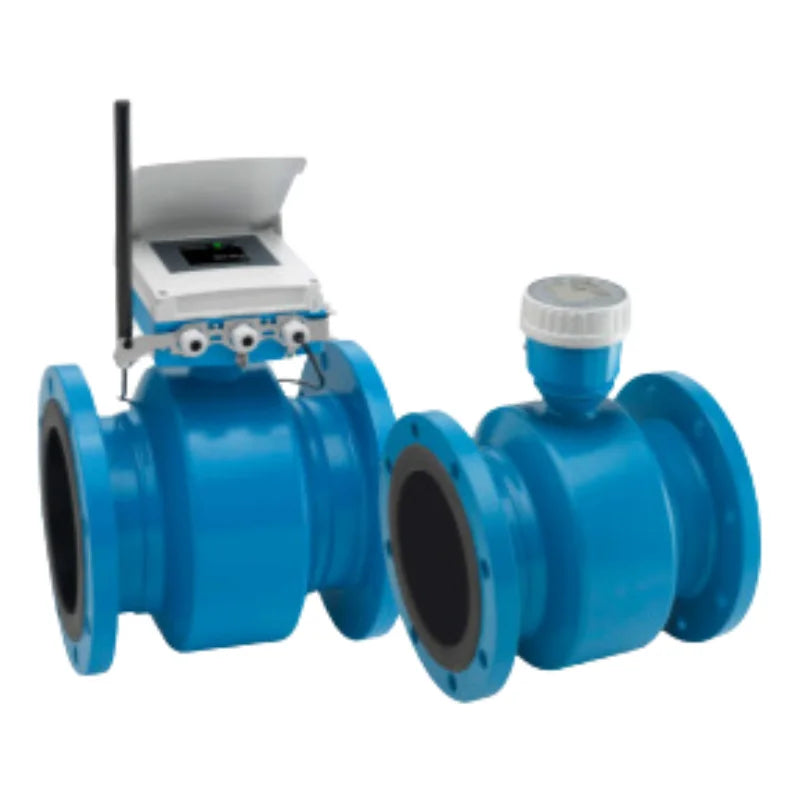

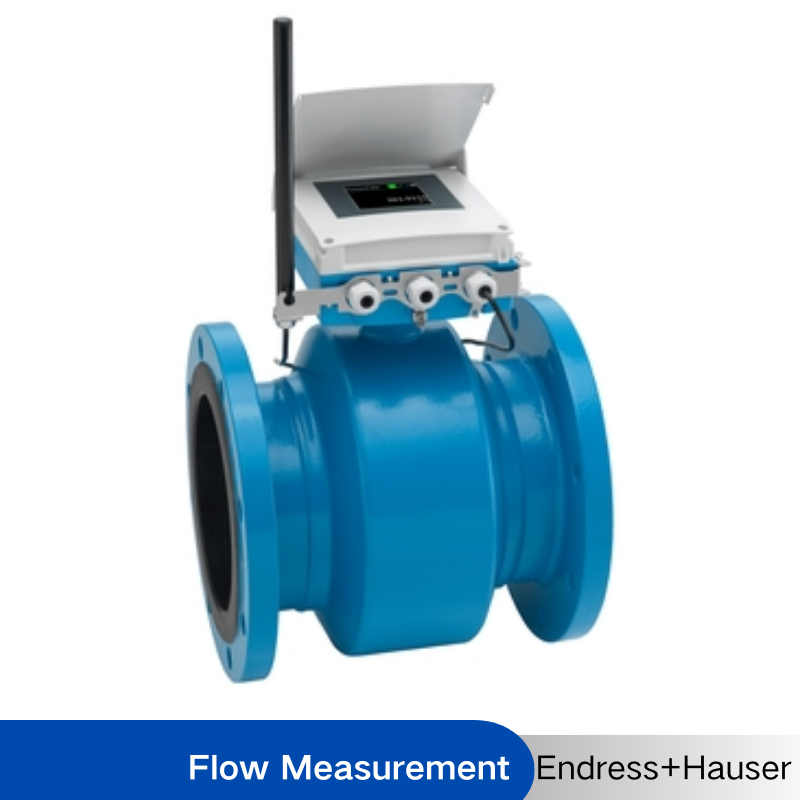

Endress+Hauser Proline Promag W800 Electromagnetic Flowmeter is long-lasting battery-powered magmeter with secure system integration and communication.
Specs at a glance
* Max. measurement error Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s) * Measuring range 9 dm³/min to 22500 m³/h (2.5 to 100000 gal/min) * Medium temperature range Liner material hard rubber: 0 to +70 °C (+32 to +158 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: -20 to 70°C (–4 to +158 °F) * Max. process pressure PN 40, Class 300, 20K
Promag W 800 is ideal for off-grid applications in the water industry, even flow measurement in direct underground installation or underwater. Promag 800 covers basic functionality, Promag 800 Advanced offers the full performance spectrum. The battery-powered transmitter provides worldwide transmission of measured data without additional energy supply. Heartbeat Technology enables measurement reliability and compliant verification.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity * Dedicated to the measurement of industrial or municipal water and wastewater
Device properties * International drinking water approvals * Degree of protection IP68 (Type 6P enclosure) * Transmitter housing made of durable polycarbonate * Battery lifetime up to 15 years * Measuring intervals can be adapted individually
Benefits
* With corrosion protection for underground installation or permanent underwater use * Improved process safety – leakage detection with low flow and pressure measurement * Reliable measurement – accurate measured values even with 0 x DN inlet run * Long-term operation – robust and completely welded sensor * Secure data storage and transmission – worldwide encrypted communication over the mobile network * Convenient commissioning and operation – device access via Bluetooth using intuitive SmartBlue app * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Germany
Brand Name
Endress+Hauser
Model Number
Proline Promag W 800
Type
Electromagnetic flowmeter
Product Headline
Battery-powered flowmeter with EN ISO 12944 corrosion protection & intelligent energy efficient mode. For direct underground installation or permanent underwater use. Certified sensor for the most demanding water and wastewater applications.
Sensor Features
Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).
Transmitter Features
Secure data storage and transmission – worldwide encrypted communication over the mobile network . Convenient commissioning and operation – device access via Bluetooth using intuitive SmartBlue app. Integrated verification – Heartbeat Technology. Transmitter housing made of durable polycarbonate. Battery lifetime up to 15 years. Measuring intervals can be adapted individually.
Liner material hard rubber: 0 to +70 °C (+32 to +158 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: -20 to 70°C (–4 to +158 °F)
Ambient Temperature Range
Flange material carbon steel: –10 to +60 °C (14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor Housing Material
DN 25 to 300 (1 to 12"): AlSi10Mg, coated DN 350 to 900 (14 to 36"): Carbon steel with protective varnish
Transmitter Housing Material
Polycarbonat
Degree Of Protection
Compact version: IP66/67, type 4X enclosure and IP68, type 6P enclosure Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5-M/Im1/Im2/Im3
Display/Operation
4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible; Remote data access via mail and SMS
Outputs
3x Pulse/switch output (passive); Modbus RS485
Inputs
Status input
Digital Communication
LTE Cat M1; LTE Cat NB1; LTE Cat NB2; GPRS; EGPRS
Power Supply
Internal: Batteries per DC 3.6 V External: AC 85 to 265 V (47 to 63 Hz) / DC 19 to 30 V
Hazardous area approvals
CSA, GP
Product Safety
CE Marking, EAC Marking, UKCA Marking
Metrological Approvals And Certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Custody transfer according to MI‐001 Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Pressure approvals and certificates
CRN, PED
Hygienic approvals and certificates
Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920
