Overview

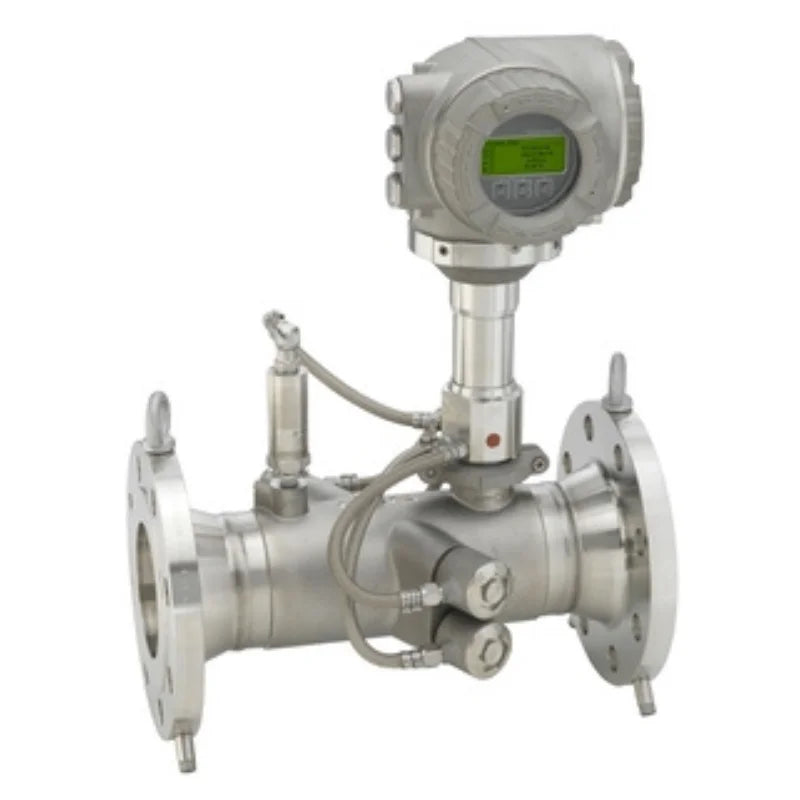

Endress+Hauser Proline Prosonic G300 Ultrasonic Flowmeter is highly robust gas specialist for fluctuating conditions with compact, easily accessible transmitter.
Specs at a glance
* Max. measurement error Volume flow (standard): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Volume flow (optional calibration): ‐ ±0.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.0 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (standard): ‐ ±1.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (optional calibration): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Sound Velocity: ±0.2 % o.r. * Measuring range Gas: 0.3 m/s to 40 m/s * Medium temperature range -50 to 150 °C (-58 to +302°F) -50 to 100 °C (-58 to +212°F) with integrated pressure cell * Max. process pressure 0.7 to 101 bar a (10.15 to 1464.88 psi a) * Wetted materials Measuring tube: 1.4408/1.4409 (CF3M) Transducer: 1.4404 (316, 316L), Titan Grade 2
Field of application
For a wide range of gas applications Prosonic Flow G provides reliable flow measurement, even with wet gas and changing gas properties and compositions. A pressure-rated sensor housing with rupture disc limits safety risks. The compact transmitter offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times. * The measuring principle is unaffected by gas composition * Accurate measurement of natural and process gas in the chemical as well as oil and gas industries.
Device properties: * Direct measurement: flow, pressure & temperature * Wetted parts: titanium / 316L * Maximum measuring accuracy: 0.5 % * Compact dual-compartment housing with up to 3 I/Os * Backlit display with touch control and WLAN access * Remote display available
Benefits
* Flexible device with user-definable gas mixtures for demanding measuring tasks * Maximum reliability even with humid or wet gas – sensor design insensitive to condensate * High-performance process control – real-time pressure- and temperature-compensated values * Efficient solution – multivariable, no pressure loss * Full access to process and diagnostic information – numerous, freely combinable I/Os * Reduced complexity and variety – freely configurable I/O functionality * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Germany
Brand Name
Endress+Hauser
Model Number
Prosonic Flow G300
Type
Ultrasonic flow meters
Product Headline
Highly robust gas specialist for fluctuating process conditions with compact, easily accessible transmitter. Flexible device with user-definable gas mixtures for demanding measuring tasks. Accurate measurement of natural and process gas in the chemical as well as oil and gas industries.
Sensor Features
Maximum reliability even with humid or wet gas – sensor design insensitive to condensate. High-performance process control – real-time pressure- and temperature-compensated values. Efficient solution – multivariable, no pressure loss. Direct measurement: flow, pressure & temperature. Wetted parts: titanium / 316L. Maximum measuring accuracy: 0.5 %.
Transmitter Features
Full access to process and diagnostic information – numerous, freely combinable I/Os. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
Volume flow, corrected volume flow, mass flow, flow velocity, speed of sound, pressure, temperature, density, dynamic viscosity, energy flow, Wobbe index, methane fraction, calorific value, molar mass
Max. Measurement Error
Volume flow (standard): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Volume flow (optional calibration): ‐ ±0.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.0 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (standard): ‐ ±1.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (optional calibration): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Sound Velocity: ±0.2 % o.r.
Measuring Range
Gas: 0.3 m/s to 40 m/s
Max. Process Pressure
0.7 to 101 bar a (10.15 to 1464.88 psi a)
Medium Temperature Range
-50 to 150 °C (-58 to +302°F)
Ambient Temperature Range
-40 to 60 °C(-40 to +140 °F) Optional: -50 to 60 °C(-58 to +140 °F)
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L Polycarbonate
Degree Of Protection
IP66/67, type 4X enclosure
Display/Operation
4-line backlit display with Touch Control
Outputs
4-20 mA HART
Inputs
Status input 4-20 mA input
Digital Communication
HART, Modbus RS485
Power Supply
24V DC 100 to 230 V AC AC 100 to 230 V / DC 24 V (non harzardous area)
Hazardous Area Approvals
ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC
Product Safety
CE, C-tick
Functional Safety
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals And Certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a
Pressure Approvals And Certificates
PED, CRN
Material Certificates
3.1 material NACE MR0175/MR0103
