[shortdesc] 4K 8MP resolution, varifocal 3.5–6.6mm lens, OptimizedIR 20m, WDR 110dB, DLPU analytics, PoE [/shortdesc]
[properties]
| Model |
AXIS M4218-LV |
| Product Type |
4K Varifocal Indoor Dome Network Camera |
| Image Sensor |
1/2.8" progressive scan RGB CMOS |
| Resolution |
3840 × 2160 (4K, 8 MP |
| Lens |
3.5–6.6 mm varifocal, F1.7–2.6 |
| Field of View |
Horizontal 93°–47°, Vertical 50°–26° |
| Minimum Illumination |
Color: 0.24 lux • B/W: 0.04 lux • 0 lux with IR |
| IR Illumination |
OptimizedIR, 850 nm, up to 20 m |
| Frame Rate |
Up to 15 fps (4K H.264/H.265 |
| Video Compression |
H.264, H.265, Motion JPEG |
| WDR |
Up to 110 dB |
| Audio |
Via portcast technology (two-way audio support |
| Edge Analytics |
AXIS Object Analytics, DLPU (deep learning |
| Network |
RJ45 10/100 PoE |
| Storage Support |
microSD/microSDHC/microSDXC, NAS |
| Ingress / Impact Rating |
IP42, IK08 |
| Power |
PoE IEEE 802.3af/at (Type 1, 5 W typical, 9.7 W max |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F |
| Dimensions |
Ø120 mm × 71 mm |
| Weight |
375 g |
[/properties]
[specifications]
| Shutter Speed |
1/71500 s to 1/5 s |
| Camera Adjustment |
Pan ±180°, Tilt –40° to +65°, Rotation ±105° |
| SoC / Processor |
CV25 with DLPU (Deep Learning Processing Unit |
| Memory |
2048 MB RAM, 512 MB Flash |
| HDMI Output |
1080p @25/30 Hz • 720p @50/60 Hz |
| Noise Reduction |
2D + 3D noise reduction |
| Image Settings |
Brightness, contrast, sharpness, exposure, white balance, WDR, privacy masks, text overlay |
| PTZ |
Digital PTZ |
| Network Protocols |
IPv4, IPv6, HTTP/HTTPS, TLS, FTP/SFTP, RTSP/RTP/SRTP, QoS, SNMP v1/v2c/v3, mDNS, UPnP, DHCP, MQTT, NTP/NTS, ONVIF G/M/S/T |
| Cybersecurity |
Axis Edge Vault, secure boot, signed OS, encrypted filesystem, 802.1X, MACsec PSK/EAP-TLS |
| Event Triggers |
Video motion, tampering, day/night mode, temperature, IP change, storage events, MQTT |
| Event Actions |
Email/HTTP/HTTPS/TCP notifications, pre/post-alarm buffering, FTP/SFTP upload, SD/NAS recording |
| Analytics Applications |
AXIS Object Analytics, AXIS Video Motion Detection, AXIS Live Privacy Shield |
| DORI (Wide / Tele |
Detect: 97.57 m / 184.48 m • Observe: 38.71 m / 73.20 m • Recognize: 19.50 m / 36.89 m • Identify: 9.72 m / 18.43 m |
| Casing |
Polycarbonate & aluminum, impact-resistant, hard-coated dome |
| Storage Conditions |
–30 °C to 65 °C (–22 °F to 149 °F, 5–95% RH |
| Certifications |
CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
[/specifications]
[accesories]
| Included in the Box |
Camera, Installation Guide, Owner Authentication Key, Virtual Client License (H.264/H.265 |
| Optional – Mounts |
AXIS TM4201, TM3207, T94C01L, T94C01U, T94C01M, T91A33, T91A23, TM4101, TM3101 |
| Optional – Casings |
AXIS M42 Casing A Black 4P; AXIS M42 Smoked Dome A 4P |
| Optional – Installation Tools |
AXIS T8415 Wireless Installation Tool |
| Optional – Storage |
AXIS Surveillance Cards |
[/accesories]
Advanced 4K Indoor Surveillance with Deep Learning Precision

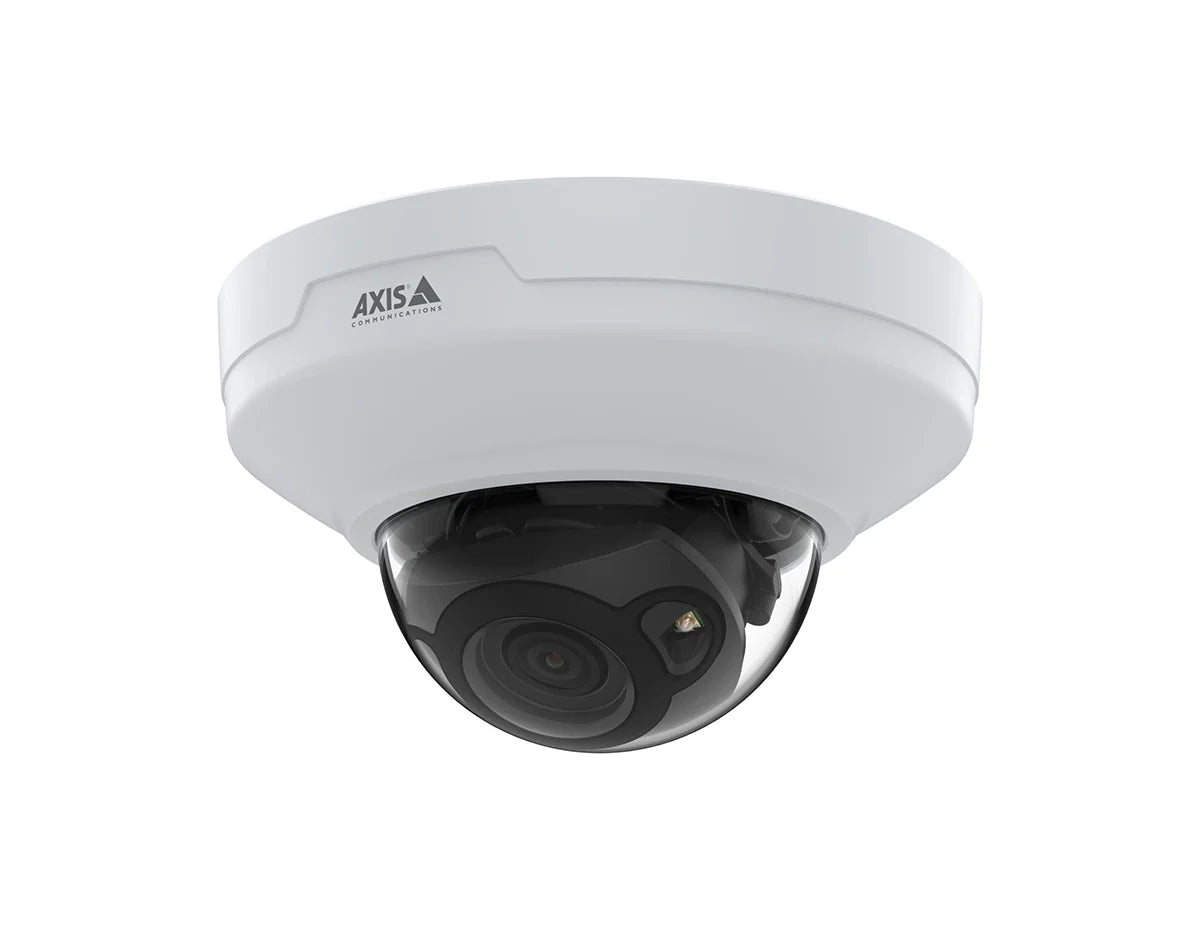

The Axis M4218-LV Dome Camera (02679-001 delivers outstanding 4K image clarity with a varifocal lens and advanced low-light performance. Powered by a deep learning processing unit, it enables high-accuracy on-edge analytics for proactive security workflows. With HDMI output, OptimizedIR, and robust cybersecurity through Axis Edge Vault, it is built for demanding professional surveillance applications.
Key Benefits & Features
-
4K Ultra-Clear Imaging: Capture detailed footage using an 8MP 1/2.8" CMOS sensor with WDR up to 110 dB for balanced scenes in complex lighting.
-
Varifocal Remote Lens Control: 3.5–6.6 mm motorized zoom and focus provide flexible field-of-view adjustment from 93° to 47°.
-
OptimizedIR Night Vision: Integrated 850 nm IR LEDs deliver uniform illumination up to 20 m for clear imaging in complete darkness.
-
AI-Powered Analytics: Deep learning–based AXIS Object Analytics detects and classifies humans and vehicles with scenario-based triggers.
-
Secure & Scalable Integration: Axis Edge Vault, HTTPS, 802.1X, and ONVIF Profiles G/M/S/T ensure secure deployment across modern VMS ecosystems.
Ideal Use Cases
- Retail floors, store entrances, and indoor loss-prevention zones
- Office and corporate environments requiring discreet monitoring
- Schools and public buildings needing high-accuracy analytics
- Commercial corridors, hallways, and high-traffic interiors
- HDMI public-view monitors for deterrence and compliance visibility
Technical Specifications
-
Image Sensor: 1/2.8" progressive scan RGB CMOS
-
Resolution: 3840 × 2160 (4K up to 15 fps
-
Lens: Varifocal 3.5–6.6 mm, F1.7–2.6
-
Field of View: 93°–47° horizontal, 50°–26° vertical
-
Low-Light Performance: 0.24 lux color, 0.04 lux B/W, 0 lux with IR
-
IR Range: Up to 20 m with OptimizedIR
-
Video Compression: H.264, H.265, Motion JPEG with Zipstream
-
Ports: RJ45 PoE, HDMI Type D
-
Power: PoE IEEE 802.3af/at, typical 5 W, max 9.7 W
-
Ingress/Impact Rating: IP42, IK08
-
Operating Conditions: 0°C to 40°C; 10–85% humidity (non-condensing
-
Dimensions: 120 mm × 71 mm; Weight: 375 g
