[shortdesc]
- Managed, DIN-rail mountable, 12 x 1G ports, Fixed Uplinks (2 x SFP+, PoE+ (240W, Layer 2
[/shortdesc]
[properties]
| Product Name |
JL817A |
| Description |
HPE Aruba Networking CX 4100i, a 12-port Gigabit Ethernet switch with Class 4 and Class 6 PoE, and 2 SFP+ ports for high-performance industrial networking, designed for DIN rail mounting. |
| Switch Type |
Managed Layer 2 industrial switch (with limited Layer 3 static routing |
| Total Ports |
12 x 1GbE (8 x PoE Class 4, 4 x PoE Class 6, 2 x SFP+ (10Gbps |
| PoE Budget |
Depends on external PSU (JL819A, JL820A, JL821A. Up to 240W/480W PoE available based on supply. |
| Uplink Ports |
2 x 10G SFP+ slots |
| Management |
Cloud-based and local management via Aruba Central and Web GUI |
| Operating Temperature |
-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM
-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM
-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM
|
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F |
| Humidity |
5% to 95% non-condensing |
| Dimensions |
H:160 mm x W:113 mm x D:162.9 mm
(D:173.5 mm w/DIN Rail Bracket
H:6.3” x W:4.4” x D:6.4”
(D:6.8” w/DIN Rail Bracket
|
| Weight |
3.71 kg (8.18 lbs |
| Mounting Options |
DIN rail mount (DIN rail clip included |
| Power Supply |
Redundant DC power inputs (48V DC nominal |
| Cooling |
Passive cooling; integrated heater for extreme low temps |
| Usage |
Suitable for industrial environments, including manufacturing, transportation, and energy sectors |
| Durability |
IP30-rated for dust resistance, tested for continuous operation in harsh conditions |
[/properties]
[specifications]
| Switching Capacity |
64 Gbps |
| Forwarding Rate |
46 Mpps |
| Latency |
<1 microsecond for 64-byte packets |
| Certifications |
CE, FCC, UL, RoHS compliant |
| Environmental Safety |
RoHS 3 compliant (Directive 2015/863/EU, halogen-free materials |
| EMC Compliance |
EN 55032, EN 55024, CISPR 32, and FCC Part 15 Class A standards |
| MTBF |
>1,500,000 hours at 25°C |
| Power Efficiency |
80 PLUS Gold certification for power supplies |
| Vibration Resistance |
Tested to withstand 2 Grms (5-500 Hz as per IEC 60068-2-6 |
| Shock Resistance |
Tested to withstand 30 G for 11 ms under IEC 60068-2-27 |
| Redundancy |
Dual DC power inputs for failover support |
| Power Consumption |
22–28W typical at full traffic, up to 55–57W with integrated heater (depending on PSU |
| Firmware Updates |
Automated and secure updates through Aruba Central |
| Network Security |
802.1X authentication, MAC-based VLANs, dynamic segmentation |
| Deployment |
Optimized for rugged industrial environments with reliable PoE capabilities |
| Reliability |
Tested for stable operation under industrial conditions, including extreme temperatures and vibration |
| Advanced Features |
QoS, VLAN tagging, Layer 3 routing, and traffic prioritization |
| Monitoring and Diagnostics |
Real-time network diagnostics through Aruba Central and NetEdit |
[/specifications]

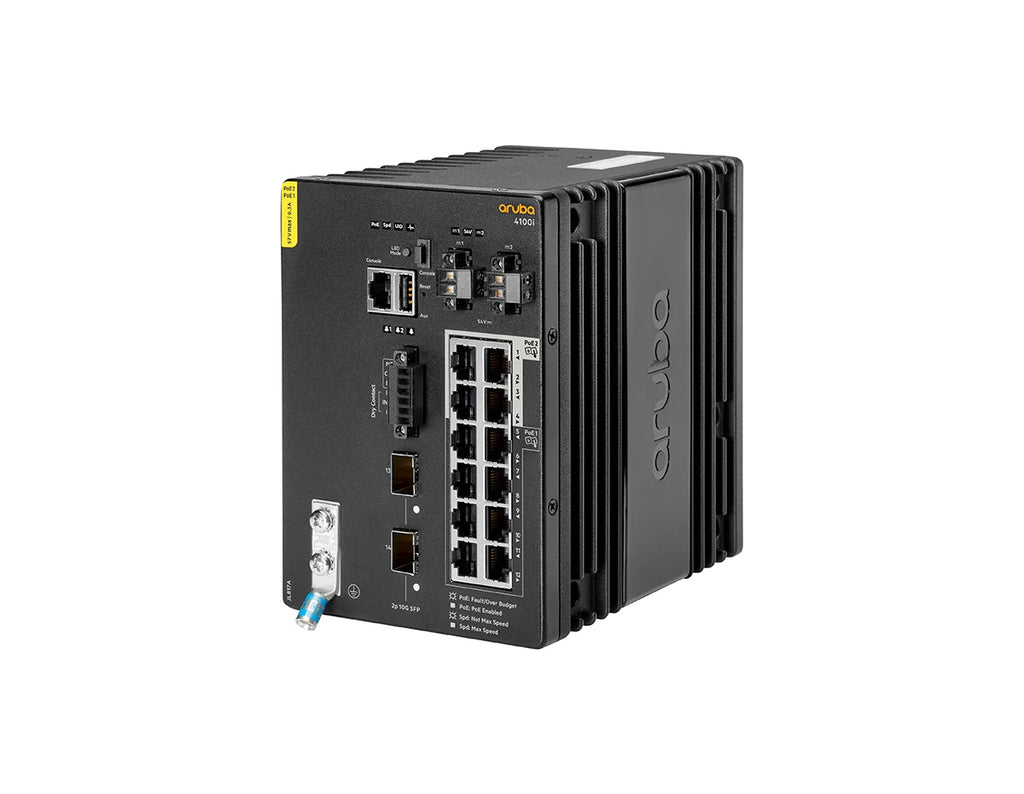

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch (JL817A
The HPE Aruba Networking CX 4100i 12-port DIN Mount Switch (JL817A is designed to deliver reliable, high-performance networking for industrial and ruggedized environments. This switch supports a combination of 8 Class 4 PoE ports and 4 Class 6 PoE ports, providing ample power to connected devices such as IP cameras, wireless access points, and IoT sensors. With two high-speed SFP+ uplinks and a rugged IP30-rated design, it is ideal for IoT, smart cities, and other mission-critical applications that demand robust networking in harsh conditions.
Key Features:
-
8 x 1GbE Class 4 PoE Ports: Delivers up to 30W per port, ideal for powering wireless access points, IP phones, and security cameras.
-
4 x 1GbE Class 6 PoE Ports: Supports up to 60W per port for high-power devices like PTZ cameras and digital signage.
-
2 x SFP+ Uplink Ports: Provides high-speed 1/10GbE uplinks for fast, reliable network expansion.
-
Rugged Design: IP30-rated for protection in industrial environments, with an extended temperature range of -40°C to +70°C.
-
High Availability: Always-on PoE ensures continuous power even during scheduled reboots and firmware upgrades.
Technical Overview:
-
Recommended for: Industrial IoT applications, smart cities, and harsh environments.
-
Ports: 8 x 1GbE Class 4 PoE, 4 x 1GbE Class 6 PoE, 2 x SFP+ uplinks.
-
Switching Capacity: Up to 64 Gbps.
-
Forwarding Rate: 46 Mpps.
-
PoE Power Budget: Supports up to 360W of PoE power.
-
Management: Managed via Aruba Central, Web GUI, CLI, or REST APIs.
-
Energy Efficiency: Compliant with IEEE 802.3az for energy-efficient operation.
You can check the related tab for the JL817A datasheet.
