[shortdesc]
- 2nd generation: Discreet mini dome sensor with IR, Only compatible with 2nd generation main units and cables, 110° horizontal field of view, IR illumination, IP6K9K for sterile environments, Exchangeable M12 lenses
[/shortdesc]
[properties]
| Properties |
AXIS F4105-LRE |
| Description |
AXIS F4105-LRE is a discreet mini dome sensor with IR. Only compatible with 2nd generation main units and cables. Ideal solution for retail stores or offices. A bulk pack of 8x 1080p mini-dome sensors with IR. |
| Product Family |
Axis Cameras |
| Product Type |
Sensor |
| Image sensor |
1/2.8” (effective progressive scan RGB CMOS |
| Wide dynamic range |
Forensic Capture |
| PoE Class |
– |
| Connectors |
SMA connector |
| Zipstream |
– |
| H.264 |
– |
| H.265 |
– |
| Motion JPEG |
– |
| Built-in IR |
Yes |
| Local storage (memory card slot |
– |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP67, IP6K9K |
| Dimensions |
Height: 54 mm (2.1 in |
| Ø 112 mm (4.4 in |
| Cable length: 116 mm (4.55 in |
| Weight |
240 g (0.53 lb |
| Operating Temperature |
With IR illumination off |
| -30 °C to 55 °C (-22 °F to 131 °F |
| With IR illumination on |
| -30 °C to 45 °C (-22 °F to 113 °F |
| Sustainability |
PVC and BFR/CFR free |
[/properties][specifications]
| Specifications |
AXIS F4105-LRE |
| Min illumination/ light sensitivity (Color |
0.3 lux |
| Min illumination/ light sensitivity (B/W |
- |
| Max video resolution |
1920x1080 |
| Max frames per second |
Up to 60 fps at 1080p, up to 180 fps at 720p (depending on main unit |
| Day and Night functionality |
Yes (automatically removable IR-cut filter |
| Electronic image stabilization |
– |
| Focal length |
2.8 mm |
| Varifocal lens |
No |
| Aperture |
F1.6 |
| Horizontal field of view |
110 ° |
| Vertical field of view |
60 ° |
| Lens mount |
M12 |
| Replaceable lens |
Yes |
| Audio Support |
– |
[/specifications][accesories]
| Optional accessories |
| AXIS TU6002 |
Right-angle SMA Adaptor |
| AXIS TU6004-E |
2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 |
2nd generation Plenum Cable |
| AXIS TU6007-E |
2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS F8202 |
Straight Mounting Bracket |
| AXIS F92A01 |
Height Strip Housing |
|
Lens M12 2.1 mm F1.8 IR
|
Optional lens for a wider field of view for advanced Axis onboard cameras |
|
Lens M12 3.6 mm F1.8 IR
|
Optional lens for a narrower field of view for advanced Axis onboard cameras |
|
Lens M12 6 mm F1.9 IR
|
Optional lens for a narrower field of view for advanced Axis onboard cameras |
|
Lens M12 8 mm F1.8 IR
|
Optional lens for a narrower field of view for advanced Axis onboard cameras |
[/accesories]

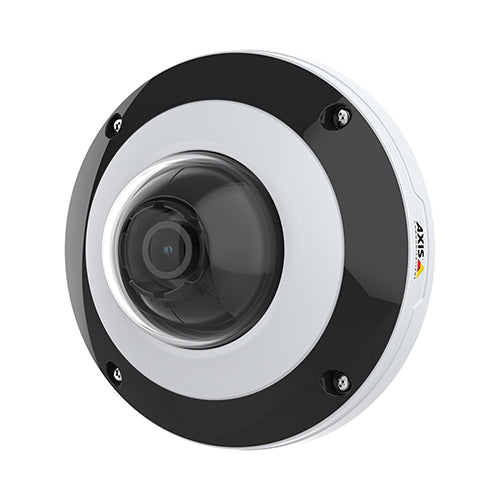

AXIS F4105-LRE Dome Sensor, 8 pcs (02364-021
AXIS F4105-LRE bulk 8p is bulk pack of 8x 1080p mini-dome sensors with IR part for the F-series. AXIS F4105-LRE has 110 degree Horizontal Field of View and 2.8 mm focal length. AXIS F4105-LRE uses detachable M12 lenses. Several M12 lenses can be purchased separately offering different types of Horizontal Field of View and Focal Length. AXIS F4105-LRE is a rugged outdoor sensor. It is both IP66 and IP6K9K certified. It can deliver up a 1080p resolution at 60fps (all AXIS F91 main units or 720p at 180fps (AXIS F9111 main unit only. AXIS F4105-LRE standard bulk 8P do not come with any cables. AXIS TU600X cables have to be purchased separately. AXIS F4105-LRE standard bulk 8P do not come with any mounting accessories. Mounting accessories can be purchased separately.
