[shortdesc]
- Switch, Managed, 16x 10/100/1000 Ethernet ports, 2x 1G SFP uplinks
[/shortdesc]
[properties]
| Properties |
C1000-16T-2G-L |
| Description |
16x 10/100/1000 Ethernet ports, 2x 1G SFP uplinks |
| Product Family |
Catalyst 1000 |
| Product Type |
Ethernet Switch |
| Number of Ports |
16 |
| Uplink Interfaces |
2 × 1G SFP |
| Available PoE power |
No |
| Fanless |
No |
| Width |
17.29" |
| Depth |
16.14" |
| Height |
1.712" |
| Management |
Managed (CLI/Web UI; SNMP; optional Cisco Catalyst Center) |
| Power Supply |
Internal (auto-sensing AC) |
[/properties]
[specifications]
| Specifications |
C1000-16T-2G-L |
| Console Ports |
1x RJ-45 (console)
1x USB mini-B (console)
1x USB-A (storage/Bluetooth console) |
| CPU |
ARM v7 800 MHz |
| DRAM |
512 MB |
| Flash Memory |
256 MB |
| Forwarding Bandwidth |
18 Gbps |
| Switching Bandwidth |
36 Gbps |
| Forwarding Rate (64-byte L3) |
26.78 Mpps |
| MAC addresses |
16000 |
| Maximum Active VLANs |
256 |
| Operating Temperature |
0 to 40 °C |
| Operating Altitude |
Up to 10,000 ft (3,000 m) |
| Safety |
UL 60950-1, EN 60950-1; IEC 62368-1; UL 62368-1; GB 4943.1-2011 |
| EMC: emissions |
FCC Part 15 Class A; EN55032 Class A; ICES-003 Class A; VCCI-CISPR32 Class A; EN61000-3-2; EN61000-3-3; KN32 Class A; CNS13438 Class A |
| EMC: immunity |
EN55024 (incl. EN 61000-4-5); EN300386; KN35 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco |
Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications |
TBD |
| Ethernet interfaces |
10BASE-T: RJ-45, 2-pair Cat 3/4/5 UTP
100BASE-TX: RJ-45, 2-pair Cat 5 UTP
1000BASE-T: RJ-45, 4-pair Cat 5 UTP
1000BASE-X (SFP uplinks) |
| Telnet - SSH |
Yes |
| TACACS, TACACS+, Radius |
Yes |
[/specifications]
[accesories]
| Part Number |
Description |
| CAB-CONSOLE-RJ45 |
Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB |
Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP |
Power Cable Restraining Clip |
| RCKMNT-19-CMPCT |
19-inch rack mount bracket for C1000, 3560-CX and 2960-CX |
| RCKMNT-23-CMPCT |
23- and 24-inch rack mount bracket for C1000, 3560-CX and 2960-CX |
[/accesories]

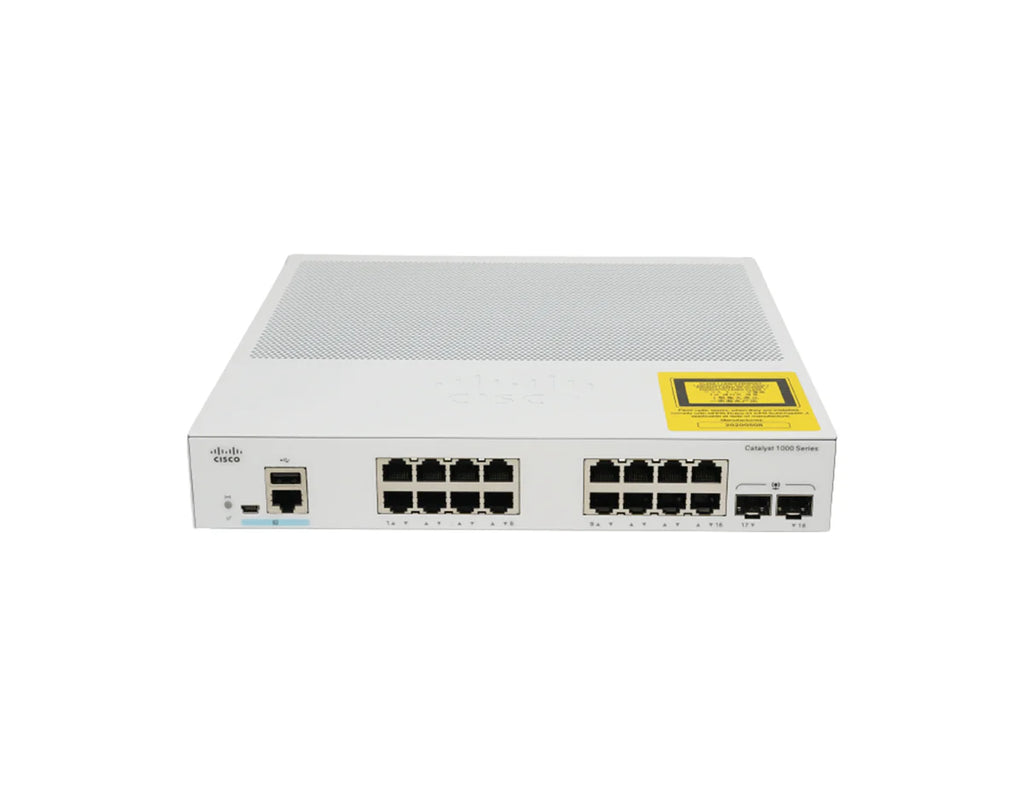

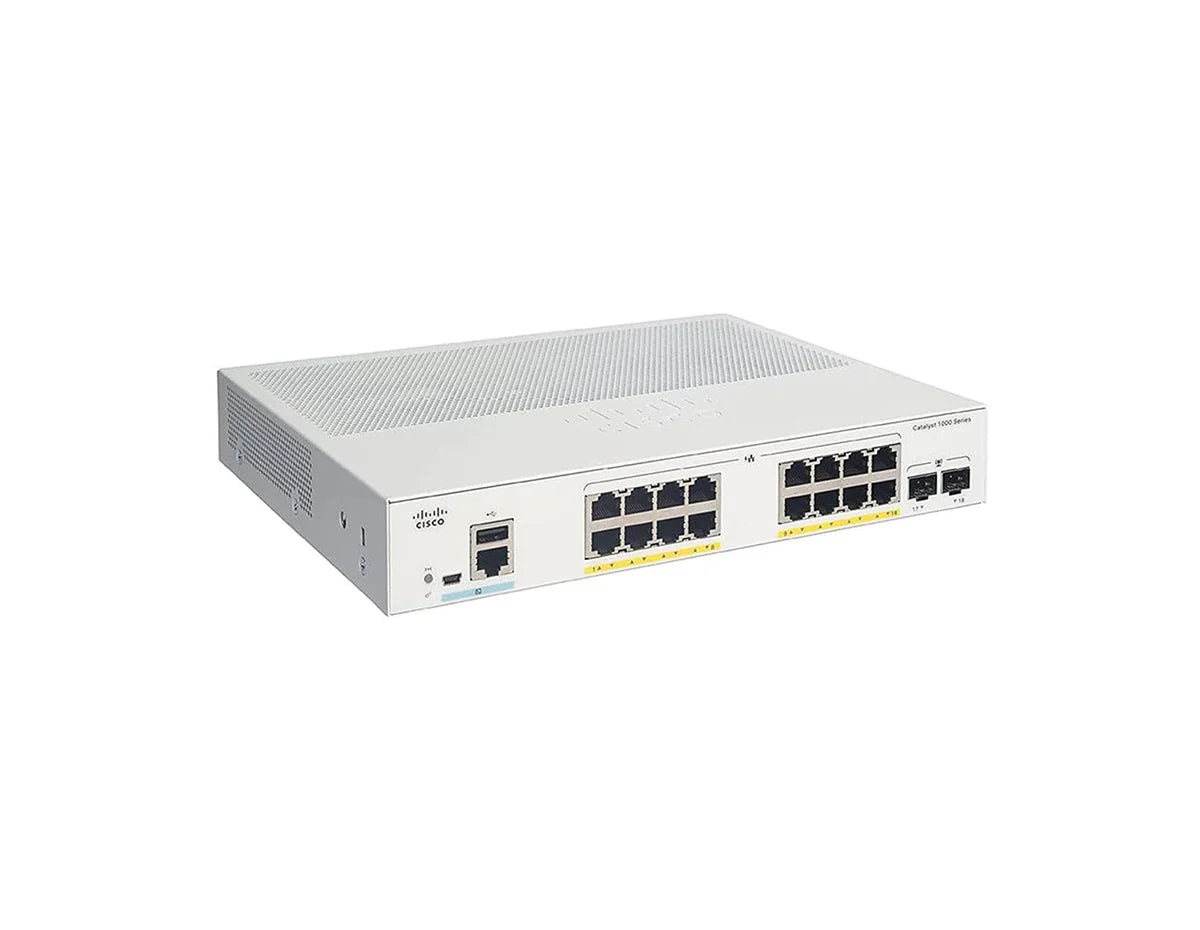

Cisco Catalyst C1000-16T-2G-L Switch
The Cisco Catalyst C1000-16T-2G-L Switch is a reliable and flexible networking solution designed for small businesses and branch offices. Featuring 16 Gigabit Ethernet ports and 2 SFP uplinks, this switch provides high-performance connectivity to support a wide range of network devices.
Key Features:
-
16 x Gigabit Ethernet Ports: Provides fast and reliable network connectivity for various devices in small business environments.
-
2 x SFP Uplinks: Offers flexible uplink options for connecting to other switches or network devices, ensuring network scalability.
-
Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
-
1RU rack-mountable design: Compact fixed-configuration platform for straightforward deployment.
-
Built-in security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.
Technical Overview:
-
Recommended for: Small businesses, branch offices, and environments requiring reliable and quiet Layer 2 switching.
-
Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet ports with 2 SFP (1G) uplinks.
-
Switching Capacity: 36 Gbps.
-
Forwarding Rate: 26.78 Mpps.
-
Management: Web-based GUI and CLI; SNMP; optional Cisco Catalyst Center.
-

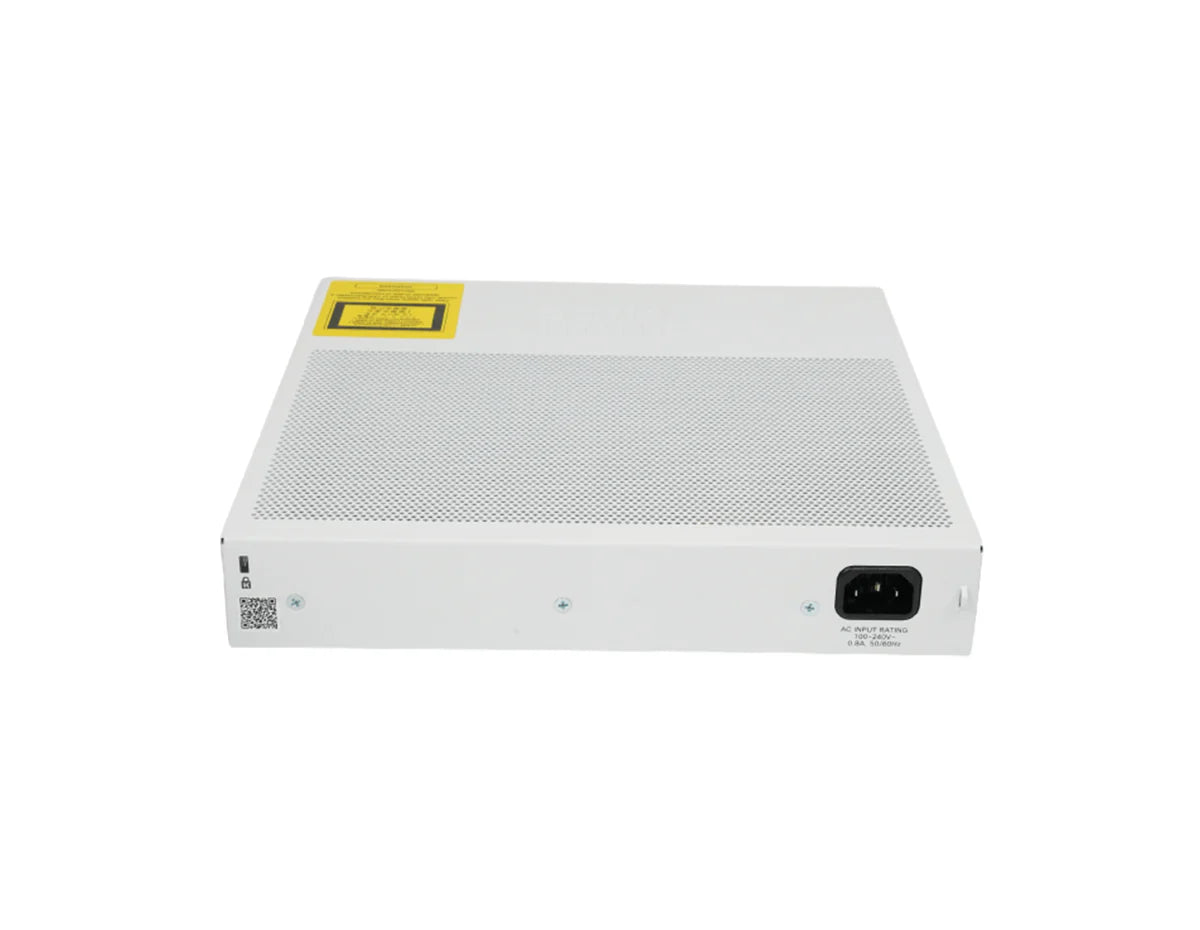

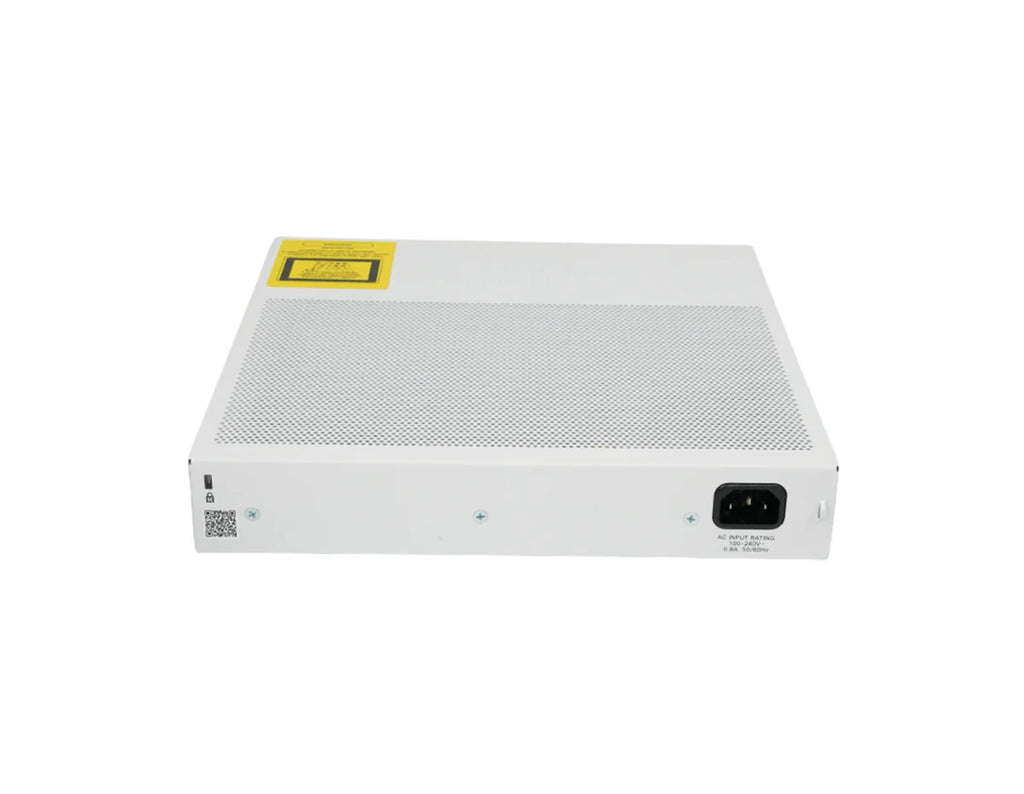

Power: Internal auto-sensing AC.
-
Dimensions (W x D x H): 17.29" × 16.14" × 1.712".
-
Operating Range: 0–40 °C; up to 10,000 ft altitude.
You can check the related tab for the C1000-16T-2G-L datasheet.
