[shortdesc]
- Switch, Managed, 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks
[/shortdesc]
[properties]
| Properties |
C1000-8P-2G-L |
| Description |
8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks |
| Product Family |
Catalyst 1000 |
| Product Type |
Ethernet Switch |
| Number of Ports |
8 |
| Uplink Interfaces |
2 × 1G SFP / RJ-45 combo |
| Available PoE power |
67W |
| Fanless |
Yes |
| Width |
10.56" |
| Depth |
12.73" |
| Height |
1.73" |
| Management |
Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center) |
| Power Supply |
Internal |
[/properties]
[specifications]
| Specifications |
C1000-8P-2G-L |
| Console Ports |
1x RJ-45 (console)
1x USB mini-B
1x USB-A port for storage and Bluetooth console |
| CPU |
ARM v7 800 MHz |
| DRAM |
512 MB |
| Flash Memory |
256 MB |
| Forwarding Bandwidth |
10 Gbps |
| Switching Bandwidth |
20 Gbps |
| Forwarding Rate (64-byte L3) |
14.88 Mpps |
| MAC addresses |
16000 |
| Maximum Active VLANs |
256 |
| Operating Temperature (Sea level) |
−5 to 50 °C* |
Operating Temperature
Up to 5,000 ft (1500 m) |
−5 to 45 °C |
Operating Temperature
Up to 10,000 ft (3000 m) |
−5 to 40 °C |
| Safety |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011 |
| EMC: emissions |
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: immunity |
EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco |
Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications |
TBD |
| Ethernet interfaces |
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 UTP cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Telnet - SSH |
Yes |
| TACACS, TACACS+, Radius |
Yes |
| * 50 °C supported for short-term operation; minimum ambient for cold start is 0 °C. |
[/specifications]
[accesories]
| Part Number |
Description |
| CAB-CONSOLE-RJ45 |
Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB |
Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP |
Power Cable Restraining Clip |
| RCKMNT-19-CMPCT |
19-inch rack mount bracket for C1000, 3560-CX and 2960-CX |
| RCKMNT-23-CMPCT |
23- and 24-inch rack mount bracket for C1000, 3560-CX and 2960-CX |
[/accesories]

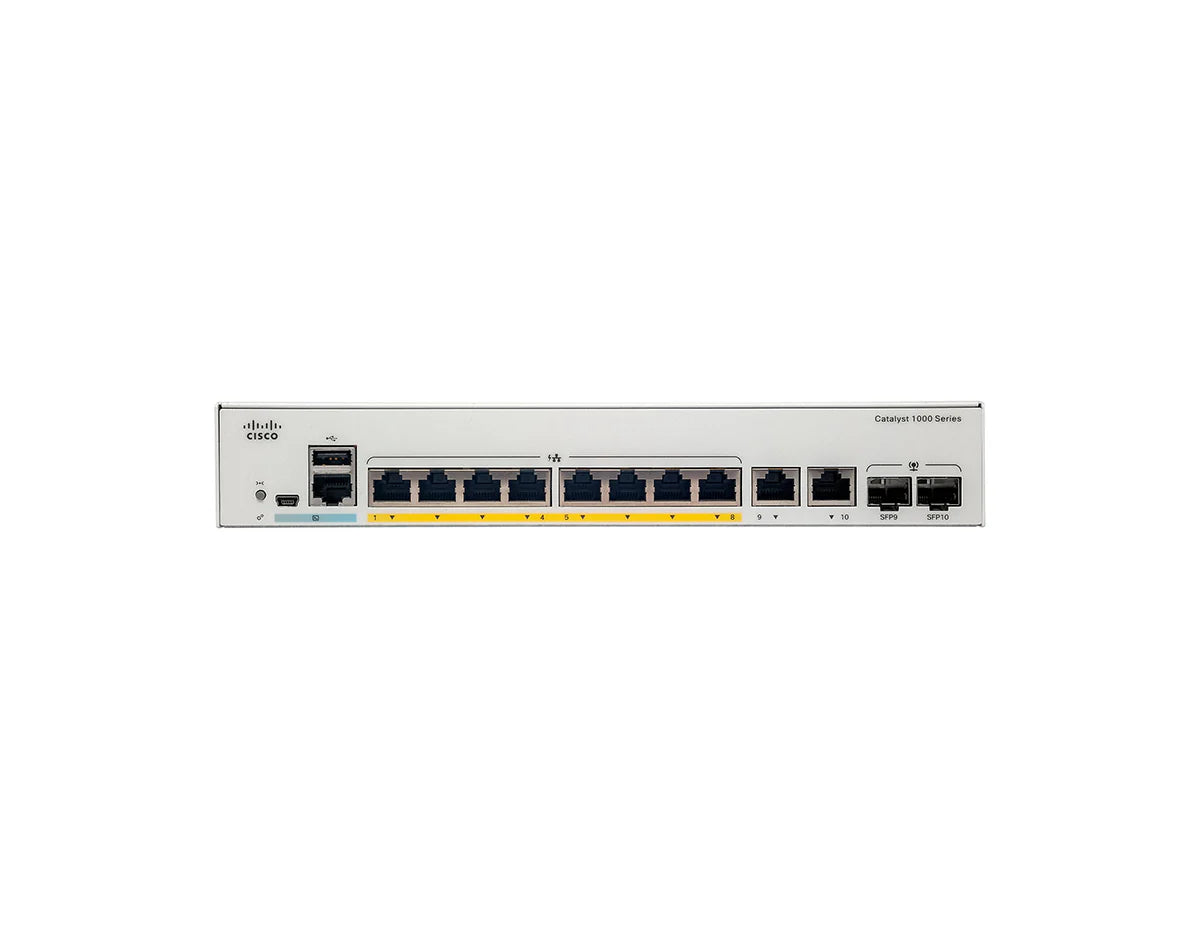

Cisco Catalyst C1000-8P-2G-L Switch
The Cisco Catalyst C1000-8P-2G-L Switch is a compact and efficient network solution designed for small businesses and branch offices. Equipped with 8 Gigabit Ethernet PoE+ ports and 2 SFP/RJ-45 combo uplinks, this switch provides reliable power and data connectivity for a variety of network devices. With its fanless design and internal power supply, the C1000-8P-2G-L ensures quiet operation and easy deployment, making it ideal for noise-sensitive environments.
Key Features:
-
8 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, with a 67W PoE budget.
-
2 x SFP/RJ-45 Combo Uplinks: Offers flexible uplink options for connecting to various network devices and expanding your network.
-
Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
-
Fanless Design: Ensures silent operation, making it suitable for office or noise-sensitive environments.
-
Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.
Technical Overview:
-
Recommended for: Small businesses, branch offices, and environments requiring compact and reliable PoE networking solutions.
-
Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 2 SFP/RJ-45 combo uplinks.
-
PoE Budget: 67W.
-
Switching Capacity: 20 Gbps.
-
Forwarding Rate: 14.88 Mpps.
-
Management: Web-based GUI and CLI for simplified network management.
-
Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
-
Energy Efficiency: Fanless design with an internal power supply for efficient operation.
You can check the related tab for the C1000-8P-2G-L datasheet.
