[shortdesc]
- Radio Specifications: One 802.11b/g/n/ax, One 802.11a/n/ac/ax, WIDS/WIPS: Integrated, Bluetooth Radio: Yes
[/shortdesc]
[properties]
| Product Name |
MR76-HW |
| Description |
Cisco Meraki MR76, a cloud-managed Wi-Fi 6 (802.11ax outdoor access point with rugged design, suitable for harsh environments and outdoor deployments. |
| Wireless Standard |
Wi-Fi 6 (802.11ax |
| Radio Configuration |
Dual-band (2.4 GHz and 5 GHz with 2x2:2 MU-MIMO |
| Maximum Data Rate |
1.7 Gbps |
| Ethernet Ports |
1x 1 Gbps Ethernet (PoE |
| Antenna Type |
External antennas (N-type connectors, antennas sold separately |
| Power Supply |
Powered via 802.3af PoE (Power over Ethernet |
| Operating Temperature |
-40°C to 65°C (-40°F to 149°F |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F |
| Humidity |
5% to 95% non-condensing |
| Dimensions |
25.7 cm x 16.7 cm x 6.4 cm (10.1 in x 6.6 in x 2.5 in |
| Weight |
1.4 kg (3.0 lb |
| Mounting Options |
Pole or wall mount (mounting kits included |
| Security |
Integrated Layer 7 firewall, WPA3 encryption |
| Usage |
Ideal for outdoor areas, campuses, and industrial settings |
| Durability |
Rugged, weat |
[/properties]
[specifications]
| Frequency Bands |
2.4 GHz (up to 574 Mbps and 5 GHz (up to 1.2 Gbps |
| Transmit Power |
Up to 27 dBm |
| Certifications |
CE, FCC, IC, RoHS compliant |
| Environmental Safety |
Complies with global environmental standards, low-halogen materials used |
| EMC Compliance |
Meets international EMC standards for outdoor wireless equipment |
| Ingress Protection |
IP67 rated for dust and water resistance |
| Advanced Features |
Supports OFDMA, MU-MIMO, BSS Coloring, and Target Wake Time |
| Latency |
<2 ms in typical outdoor conditions |
| Power Consumption |
Maximum 12.95W (PoE |
| Management |
Cloud-based management via the Meraki dashboard |
| MTBF |
1,700,000 hours |
| Mesh Networking |
Supports mesh networking to extend wireless coverage in outdoor areas |
| Firmware Updates |
Automated cloud-based updates |
| Deployment |
Designed for outdoor deployments in challenging environments |
| Monitoring |
Real-time monitoring and remote troubleshooting via cloud dashboard |
| Security Features |
WPA3 encryption, rogue AP detection, VPN tunneling |
[/specifications]

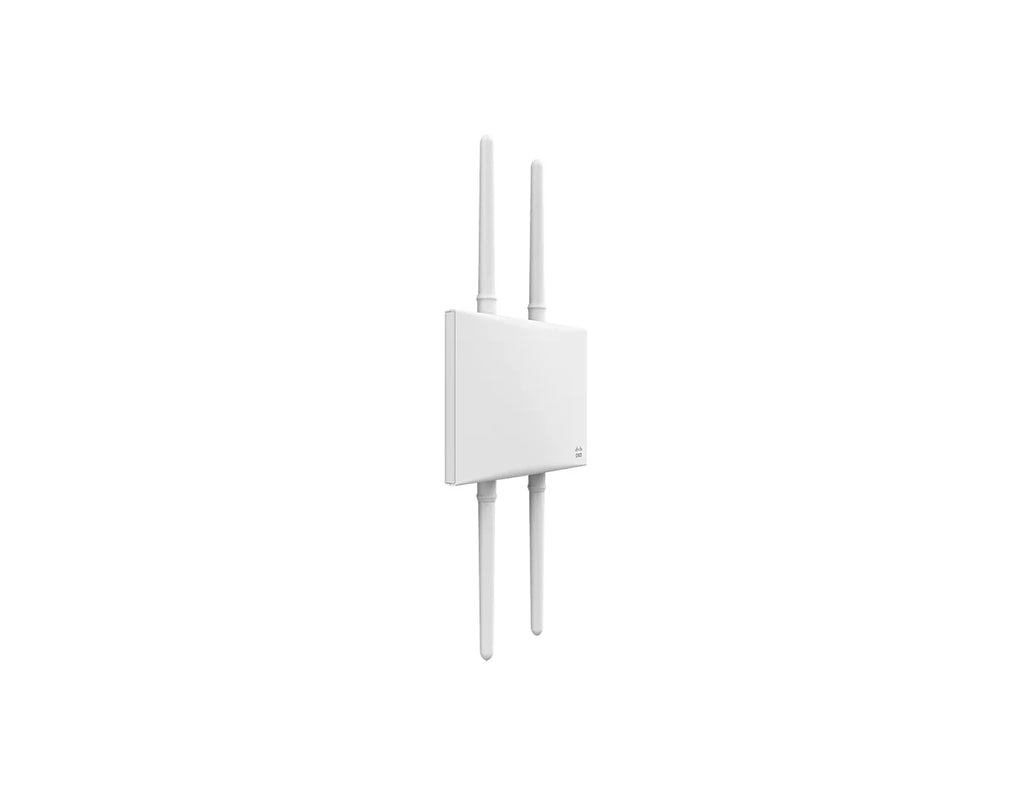

Meraki MR76 Access Point
The Meraki MR76 Access Point is a high-performance, rugged, and outdoor Wi-Fi 6 access point designed for challenging environments such as outdoor campuses, industrial areas, point-to-point links, and outdoor location services. Equipped with advanced features and robust hardware, the MR76 ensures reliable connectivity and optimal performance.
Quick Specs:
- Radio Specifications: One 802.11b/g/n/ax, One 802.11a/n/ac/ax
- WIDS/WIPS: Integrated
- Bluetooth Radio: Yes
- Maximum Data Rate: 1.7 Gbit/sec
- MIMO: Two 2:2 MU-MIMO and OFDMA with beamforming
- Networking Interface: One Gigabit Ethernet port
- External Antenna Connectors: Four N-type (antennas sold separately
- Power: 802.3af PoE
- Physical Design: Rugged industrial design, IP67 rated for water and dust resistance, vibration and shock tested
- Dimensions: 11.81 in x 6.02 in x 2.16 in (30.0 cm x 15.3 cm x 5.5 cm
- Weight: 47.27 oz (1.34 kg
Features:
- Third radio dedicated to security and RF management
- Priority voice and power save (802.11e/WMM
- Hardware-accelerated encryption
- Band steering
- Bluetooth Low Energy radio for beacon and scanning
