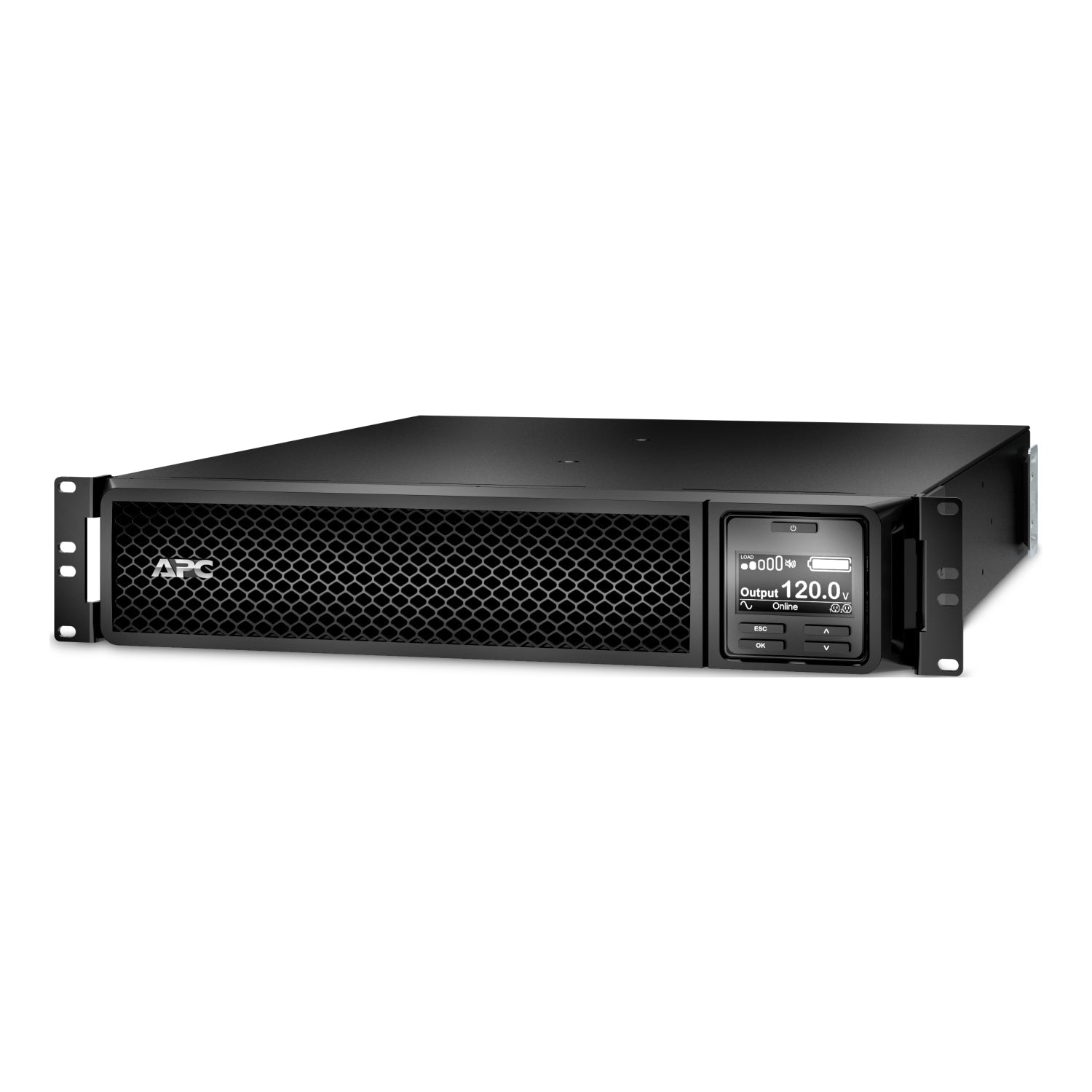

[shortdesc]2200VA / 1800W, 2U Rackmount UPS, Pure Sine Wave, 6x NEMA 5-20R + 1x NEMA L5-20R Outlets, Double Conversion On-Line[/shortdesc]
[properties]
| Brand |
APC by Schneider Electric |
| Model |
SRT2200RMXLAUS |
| Product Type |
Smart-UPS On-Line, Double Conversion |
| Form Factor |
Rackmount 2U |
| Dimensions (H x W x D |
3.3" x 17.008" x 23.0" (85 x 432 x 584 mm |
| Weight |
55.005 lb (24.95 kg |
| Color |
Black |
| Number of Rack Units |
2U |
| Cable Length |
6 ft (1.8 m |
| Cooling |
Not specified |
[/properties]
[specifications]
| Capacity |
2200 VA / 1800 W |
| Input Voltage |
120 V |
| Input Connection Type |
NEMA 5-20P |
| Input Frequency |
40–70 Hz auto-sensing |
| Output Voltage |
120 V |
| Output Connections |
6 × NEMA 5-20R, 1 × NEMA L5-20R |
| Waveform Type |
Sine wave |
| Topology |
Double Conversion On-Line |
| Transfer Time |
0 ms (on-line |
| Bypass Type |
Built-in Bypass |
| Crest Factor |
3:1 |
| Harmonic Distortion |
<2% |
| Battery Type |
Lead-Acid • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC141 • Charge power: 102 W rated |
| Extendable Runtime |
Yes |
| Surge Energy Rating |
340 J |
| Acoustic Noise |
55 dBA |
| Thermal Dissipation |
535 BTU/h |
| Operating Temperature |
0–40 °C (32–104 °F |
| Operating Humidity |
0–95% non-condensing |
| Altitude |
0–10,000 ft operating |
| Communications |
USB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free |
| Certifications |
ENERGY STAR V2.0 (USA, TAA compliance |
| Warranty |
3 years repair or replace (excluding battery • 2 years for battery |
[/specifications]
[accesories]
| Rack Mounting Hardware |
Included in the box |
| Rack Mounting Brackets |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| USB Cable |
Included in the box |
| Documentation |
CD with software, Documentation CD, Installation guide, Warranty card |
[/accesories]
Overview
The APC Smart-UPS On-Line SRT2200RMXLAUS delivers 2200VA / 1800W of reliable, high-density power protection in a compact 2U rackmount form factor. Designed for mission-critical IT environments, this double conversion online UPS provides continuous, clean, and stable power for servers, network devices, and sensitive electronic systems. With its pure sine wave output, extended runtime options, and ENERGY STAR® certification, it ensures operational continuity while optimizing energy efficiency.
Key Features & Benefits
-
Double Conversion On-Line Topology: Provides continuous, isolated power to eliminate voltage fluctuations and interruptions.
-
Pure Sine Wave Output: Ensures compatibility and reliability for sensitive servers, network storage, and IT hardware.
-
Rackmount 2U Design: Compact footprint with included rails and brackets for easy integration into standard racks.
-
Flexible Outlets: Equipped with 6 NEMA 5-20R and 1 NEMA L5-20R outlets to support diverse equipment connections.
-
Hot-Swappable Battery: Extend runtime with external battery packs and perform replacements without downtime.
-
ENERGY STAR® Certified: High operational efficiency reduces heat output and operating costs.
Technical Deep Dive
The SRT2200RMXLAUS employs double conversion online topology, which continuously converts incoming AC to DC and then back to AC. This guarantees a consistent and isolated power output, eliminating risks from harmonics, voltage spikes, or frequency fluctuations. For organizations running mission-critical systems, this topology ensures uninterrupted uptime even under unstable mains power conditions.
Equipped with a pure sine wave output, the UPS is ideal for servers, storage systems, and sensitive electronic devices that demand consistent power quality. This output protects equipment from damage and prevents disruptions in performance during transfer to battery mode.
Advanced battery management includes a lead-acid battery with a typical recharge time of three hours, and the system supports extended runtime through additional battery modules. Intelligent thermal management and an acoustic level of just 55 dBA make it suitable for both data center racks and office IT closets. With its 535 BTU/h thermal dissipation, it balances high power density with manageable cooling requirements.
Ideal Applications
- Data center rack servers and storage arrays
- Network closets and branch office IT infrastructure
- Healthcare systems requiring continuous uptime
- Finance and retail operations with mission-critical applications
- Industrial control systems and telecommunications equipment
Frequently Asked Questions (FAQs
Q1: How is the SRT2200RMXLAUS installed?
A: It is a 2U rackmount UPS and includes mounting brackets, support rails, and hardware for straightforward integration into standard racks.
Q2: What performance can I expect?
A: This unit delivers 2200VA / 1800W of power with pure sine wave output. Runtime varies by load; consult runtime resources for detailed values. Actual performance depends on battery age, environment, and connected load.
Q3: How can the UPS be managed?
A: The UPS features SmartSlot compatibility for network management cards, USB connectivity, audible and visible alarms, and Emergency Power Off (EPO functionality for remote shutdown control.
