- Stable, 2 MP surveillance under any circumstances, HDTV 1080p at up to 60 fps, Lightfinder 2.0, Signed firmware and secure boot, Zipstream with support for H.264 and H.265, Electronic image stabilization
[/shortdesc]
[properties]
| Properties |
AXIS P1375 Barebone |
| Description |
AXIS P1375 Barebone Network Camera provides stable 2 MP surveillance performance under all circumstances. It’s ideal for deterrent surveillance at entrances or open areas in offices, banks, and hotels. |
| Product Family |
AXIS P13 Series (P1375 Barebone |
| Product Type |
Network Camera |
| Image sensor |
1/2.8" progressive scan RGB CMOS |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| PoE Class |
3 |
| Wireless |
- |
| Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T
I/O: 6-pin 2.5 mm terminal block (2 supervised alarm inputs, 2 outputs
RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
DC input, terminal block, 3.5 mm mic/line in, 3.5 mm line out
i-CS connector (compatible with P-Iris and DC-iris
Security lock slot
AXIS T92G20 connector |
| Signed firmware |
Yes |
| Secure boot |
Yes |
| Remote focus |
Yes (remote back focus supported |
| Remote zoom |
- |
| Built-in IR |
- |
| Local storage (memory card slot |
Yes |
| Outdoor Ready |
- |
| Vandal rating |
- |
| IP rating |
- |
| Designed for repaint |
- |
| Power (max |
9.6 W |
| Power (average |
4.9 W |
| DC input voltage |
12–28 V |
| Dimensions |
214 x 80 x 57 mm (8 7/16 x 3 1/8 x 2 1/4 in |
| Weight |
750 g (1.7 lb |
| Operating Temperature |
-10 °C to 55 °C (14 °F to 131 °F |
| Event actions |
MQTT publish
Record video: SD card and network share
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email
Pre- and post-alarm video or image buffering
Notification: email, HTTP, HTTPS, TCP, and SNMP trap
PTZ preset, start/stop guard tour
Overlay text, external output activation, play audio clip, WDR mode, day/night mode |
| Applications |
AXIS Object Analytics, AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm, audio detection
Supported: AXIS Live Privacy Shield and third-party applications |
| Cybersecurity |
Software: Signed firmware, brute force delay protection, digest authentication, and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
Hardware: Secure boot
Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS, X.509 Certificate PKI, IP address filtering |
[/properties][specifications]
| Specifications |
AXIS P1375 Barebone |
| System on chip (SoC Model |
ARTPEC-7 |
| Memory |
1 GB RAM, 512 MB Flash |
| Compute capabilities |
Machine learning processing unit (MLPU |
| Min illumination/ light sensitivity (Color |
0.05 lux |
| Min illumination/ light sensitivity (B/W |
0.01 lux |
| Max video resolution |
1920x1080 |
| Max frames per second |
50/60 |
| Electronic image stabilization |
Yes |
| Multi-view streaming |
Up to 8 individually cropped out view areas |
| Pan/Tilt/Zoom |
Digital PTZ
Uploadable PTZ driver (Pelco D pre-installed |
| Focal length |
2.8–8 mm |
| Horizontal field of view |
124°–42° |
| Vertical field of view |
65°–24° |
| Lens mount |
CS |
| Replaceable lens |
Yes |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| Motion JPEG |
Yes |
| Audio streaming |
Two-way, full duplex
Echo cancellation and voice enhancer |
| Audio input/output |
External microphone input, line input, digital input with ring power, line output, built-in microphone (can be disabled, automatic gain control |
| Sustainability |
PVC free |
[/specifications][accesories]
| Box Content |
Connector kit, Installation Guide, Windows® decoder 1-user license, stand, Resistorx® L-key TR20, Torx® L-key T6 |
| Optional lenses |
Lens CS 2.8–10 mm F1.2 P-Iris (2 MP, Theia Varifocal Ultra Wide Lens 1.8–3.0 mm, Computar i-CS 2.8–8.5 mm Lens, Tamron 8–50 mm P-Iris F1.6, i-CS 9–50 mm F1.5 8 MP |
| Optional accessories |
Axis mounts, Axis lenses, Axis midspans, Axis microphones, AXIS T92G20 Outdoor Housing, AXIS T8355 Digital Microphone |
[/accesories]

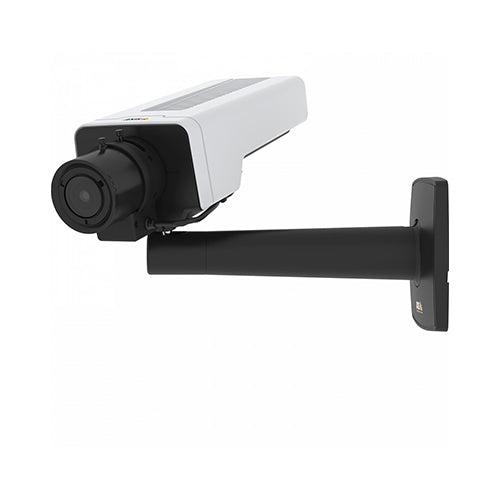

AXIS P1375 Barebone Network Camera (01532-031
The AXIS P1375 Barebone Network Camera provides high-quality 2 MP surveillance with advanced image processing, Forensic WDR, and Lightfinder 2.0 technology for excellent performance in challenging lighting. It includes electronic image stabilization and remote back focus to ensure clear and stable footage, even in vibration-prone environments. The camera features robust cybersecurity with signed firmware and secure boot to ensure system integrity. Offering multiple configurable streams in H.264, H.265, and Motion JPEG, the camera supports two-way audio, supervised I/O, and local SD card storage. Power is provided via PoE or 12–28V DC input, and it integrates seamlessly with Axis accessories for flexible installations.
Quick Specs:
- HDTV 1080p at up to 60 fps
- Lightfinder 2.0
- Signed firmware and secure boot
- Electronic image stabilization
Please see the related tabs for the 01532-031 datasheet and compatible accessories.
This product has been discontinued. The manufacturer's suggested replacement is P1385-B (02899-001.
