[shortdesc]
- The Cisco C1300-24T-4G is a 24-port Gigabit Layer 3 managed switch with four 1G SFP uplinks, designed for energy-efficient, secure, and high-performance office and SMB deployments
[/shortdesc]
[properties]
| Model |
Cisco Catalyst C1300-24T-4G |
| Product Type |
Managed Layer 3 Gigabit Switch |
| Total System Ports |
28 (24 × 10/100/1000 RJ-45, 4 × 1G SFP |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.66 Mpps |
| Stacking |
Front-panel stacking up to 8 switches |
| Packet Buffer |
1.5 MB (shared |
| MAC Address Table |
16,000 entries |
| CPU / Memory / Flash |
ARM dual-core up to 1.4 GHz / 1 GB DDR4 / 512 MB |
| Cooling |
Fanless (silent |
| Power Input |
Internal AC 100–240 V, 50/60 Hz |
| Power Consumption (Max |
22.3 W @ 110 V / 22.4 W @ 220 V |
| Heat Dissipation (Max |
76.4 BTU/hr |
| Form Factor |
1U rack-mountable metal chassis |
| Dimensions (W × D × H |
445 × 240 × 44 mm (17.5 × 9.45 × 1.73 in |
| Unit Weight |
2.63 kg (5.80 lb |
| Operating Temperature |
−5 °C to 50 °C (23 °F to 122 °F |
[/properties]
[specifications]
| Layer Support |
Layer 2 & Layer 3 (static IPv4/IPv6, RIP v2, Policy-Based Routing |
| Routing / Interfaces |
Up to 990 static routes; up to 128 Layer 3 interfaces (SVIs |
| VLANs |
Up to 4093; Private VLAN/Edge; Voice/Guest VLAN; VLAN translation; Q-in-Q |
| Link Aggregation |
IEEE 802.3ad LACP (up to 8 groups; up to 8 ports per group |
| Spanning Tree |
802.1D STP, 802.1w RSTP, 802.1s MSTP; PVST+/RPVST+ |
| Multicast |
IGMP snooping v1/v2/v3 with querier; up to 2000 groups |
| QoS |
8 queues per port; Strict Priority & WRR; CoS/DSCP trust & remarking; policing/shaping |
| Security |
802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control |
| ACLs |
Up to 1024 rules; IPv4/IPv6/MAC; protocol/port/DSCP; time-based ACLs |
| Jumbo Frames |
Up to 9000 bytes (default MTU 2000 bytes |
| Management |
Web GUI/CLI/SSH, SNMP v1/v2c/v3, RMON, Syslog, Cisco Business Dashboard (embedded probe, PnP |
| Discovery |
LLDP, LLDP-MED, Cisco Discovery Protocol (CDP |
| Compliance |
UL 62368, CSA, CE, FCC Part 15 Class A |
[/specifications]
[accesories]
| Accessory |
Details |
| CAB-CONSOLE-RJ45 |
RJ-45 console cable |
| CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= |
USB-C console cable |
| PWR-CLP |
Power cable clip |
| RCKMNT-1RU-1K= |
Rack-mount kit for 1U devices |
[/accesories]

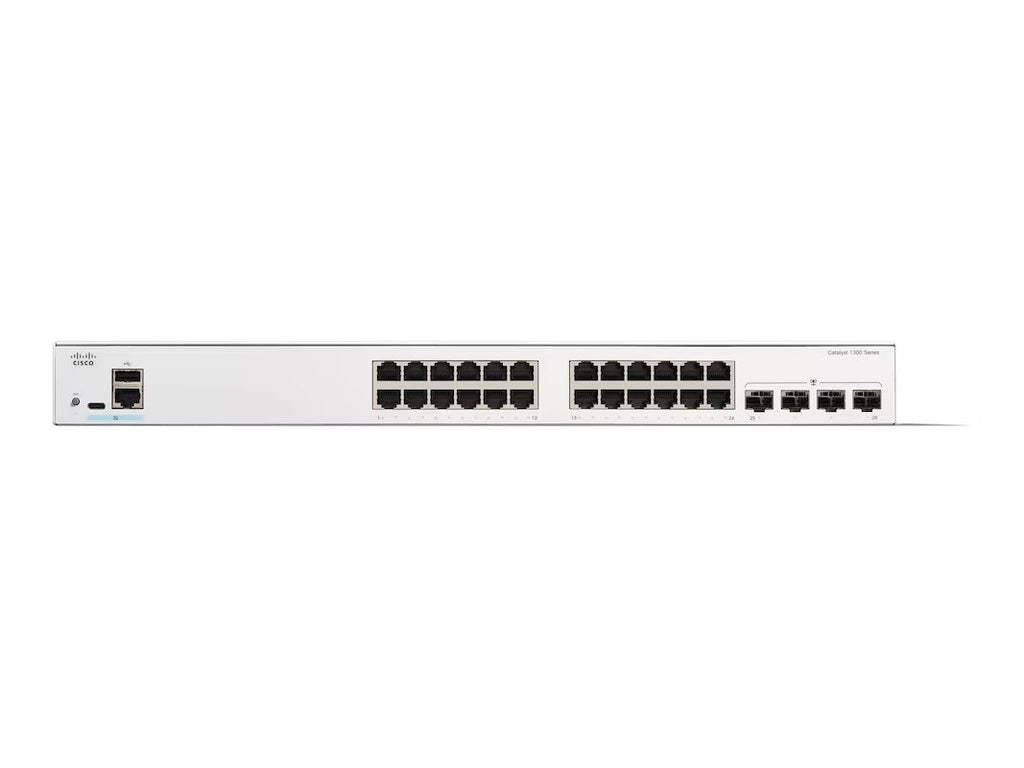

Cisco Catalyst C1300-24T-4G 24-Port Gigabit Switch with 4 SFP
The Cisco Catalyst C1300-24T-4G is a fanless, fully managed Layer 3 Gigabit access switch for SMB and branch networks that need quiet operation and reliable fiber uplinks. It provides 24 × 1G RJ-45 downlinks and four dedicated 1G SFP uplinks, delivering non-blocking performance with a 56 Gbps switching fabric and 41.66 Mpps forwarding. With advanced L2/L3 services (static, RIP v2, PBR, granular QoS, and comprehensive security (802.1X, DHCP snooping, IPSG, DAI, it segments and protects traffic while remaining silent. Day-2 operations are simplified via Web GUI/CLI/SSH, SNMP, the embedded Cisco Business Dashboard probe, and PnP.
Key Features
-
Silent performance: Fanless hardware for noise-sensitive offices and front-of-house spaces.
-
Flexible uplinks: Four 1G SFP ports for fiber aggregation/backbone connectivity.
-
Layer 3 services: Static IPv4/IPv6, RIP v2, and PBR for efficient segmentation and control.
-
Hardened security: 802.1X, DAI, DHCP Snooping, IP Source Guard, and rich ACLs.
-
Simplified ops: Web/CLI/SSH/SNMP, Cisco Business Dashboard probe, and PnP onboarding.
Technical Overview
-
Performance: 56 Gbps switching / 41.66 Mpps forwarding; 1.5 MB shared buffer; 16K MAC.
-
Interfaces: 24 × 1G RJ-45; 4 × 1G SFP uplinks.
-
L2 resiliency: STP/RSTP/MSTP with PVST+/RPVST+; LACP link aggregation.
-
Multicast: IGMP snooping/querier; up to 2000 groups.
-
Power & thermal: Max 22.3/22.4 W (110/220 V; 76.4 BTU/hr.
-
Mechanical: 445 × 240 × 44 mm; 2.63 kg; fanless design.
-
Environment: −5 °C to 50 °C operating; internal universal PSU.
