[shortdesc]
- The Teltonika RUTX11 Industrial Router offers reliable LTE, Wi-Fi, and Bluetooth connectivity for IoT applications. With dual SIM support and robust design, it ensures secure communication in demanding environments
[/shortdesc]
[properties]
| Product Name |
Teltonika RUTX11 Industrial Cellular Router |
Interfaces |
Storage |
Power Supply |
Hardware Acceleration |
Subscription |
| Product Description |
Dual SIM 4G/LTE Wi-Fi/BT Industrial Cellular Router with robust IoT capabilities |
22 x GE RJ45 ports (2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP shared media, 4 x GE SFP ports, 2 x 10G SFP+ FortiLink |
480GB onboard SSD |
Dual redundant power supplies |
SPU NP6 and CP9 |
5Yr Bundle with FortiCare and FortiGuard Unified Threat Protection (UTP |
| Connectivity |
Dual SIM LTE Cat 6, Wi-Fi 5 (802.11b/g/n/ac Wave 2, Bluetooth 4.0 |
|
|
|
|
|
| Ethernet Ports |
1 x WAN (configurable as LAN, 3 x LAN (10/100/1000 Mbps, compliant with IEEE standards |
|
|
|
|
|
| Wi-Fi Users |
Up to 150 simultaneous connections |
|
|
|
|
|
| Security |
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP |
|
|
|
|
|
| Advanced Security |
VPN, firewall with attack prevention, advanced encryption |
|
|
|
|
|
| Dimensions |
115 x 44.2 x 95.1 mm |
|
|
|
|
|
| Weight |
1.1 lbs |
|
|
|
|
|
| Power Input |
9–50 VDC |
|
|
|
|
|
| Operating Temperature |
-40 °C to 75 °C |
|
|
|
|
|
[/properties]
[specifications]
| LTE Category |
LTE Cat 6 (300 Mbps download, 50 Mbps upload |
| Wi-Fi |
802.11b/g/n/ac Wave 2 (Wi-Fi 5, data rates up to 867 Mbps, Dual Band, MU-MIMO |
| Bluetooth |
Bluetooth 4.0 Low Energy (LE |
| Routing |
Static/Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP |
| Firewall |
Port forwarding, traffic rules, custom rules, NAT helpers for VoIP packets |
| SMS Features |
Auto-reply, SMS to HTTP, Email to SMS, SMS to Email, SMS configuration via HTTP POST/GET |
| SIM Switching |
Auto-switch cases: weak signal, data/SMS limit, roaming, network denied, no connection |
| Load Balancing |
Traffic balance across multiple WAN connections |
| Protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SNMP, MQTT, Telnet, SSH, and more |
| QoS |
WMM, 802.11e Smart Queue Management |
| IoT Integration |
MQTT, Modbus, VPN support |
| Certifications |
CE, UKCA, EAC, FCC, UL/CSA |
[/specifications]

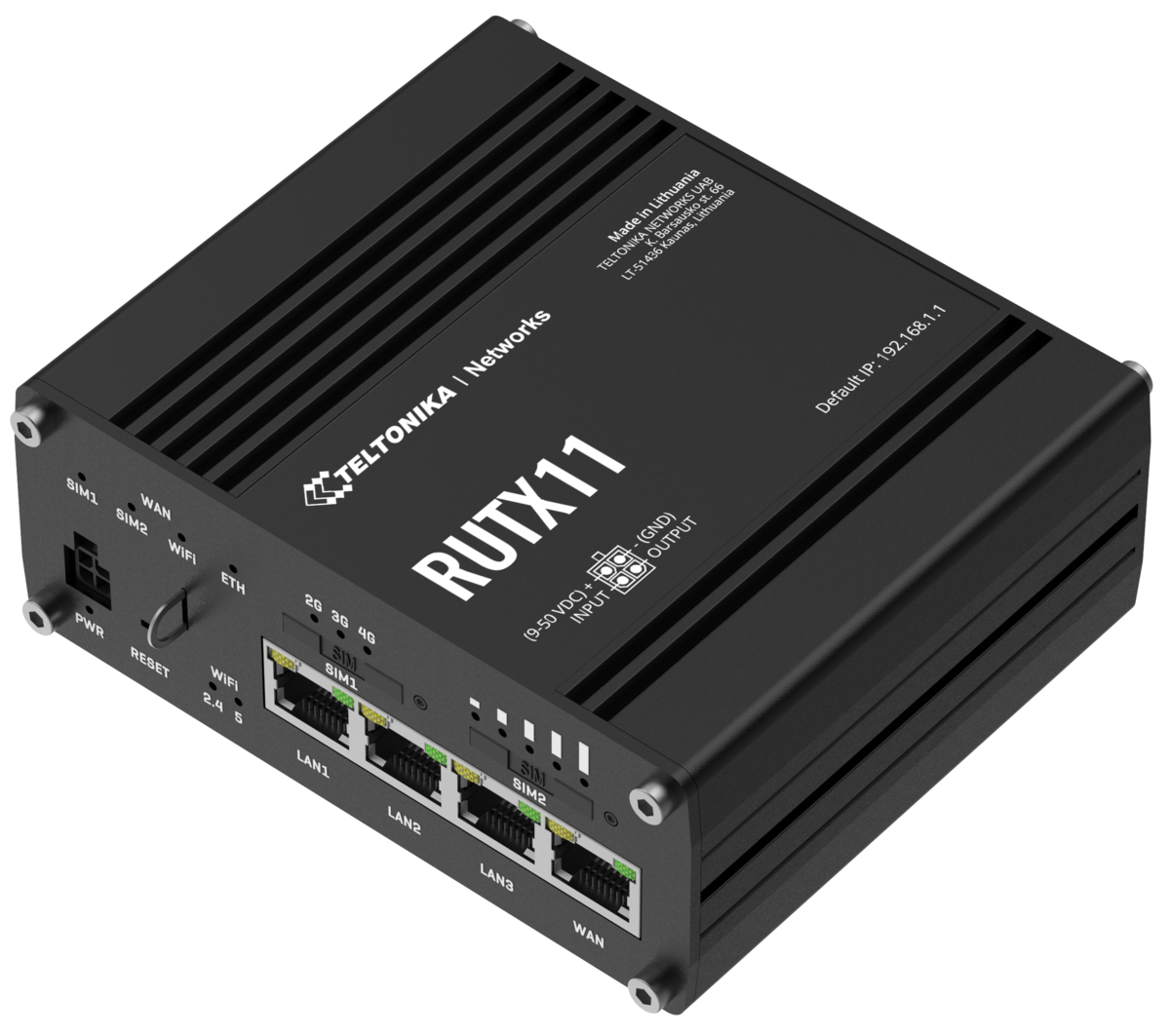

Teltonika RUTX11100400 DUAL SIM 4G/LTE Wi-Fi/BT Industrial Cellular Router
The Teltonika RUTX11 Industrial Cellular Router is a highly versatile and reliable device for industrial IoT applications. It features dual SIM capability, high-speed LTE connectivity, advanced Wi-Fi support, and Bluetooth functionality, making it an ideal choice for seamless communication and data transfer in demanding environments. Designed with robust hardware and extensive software features, this router ensures stable and secure connectivity across diverse use cases.
Key Features:
-
Connectivity: Dual SIM with auto-switching for uninterrupted LTE Cat 6 connectivity up to 300 Mbps download and 50 Mbps upload speeds
-
Wi-Fi: 802.11b/g/n/ac Wave 2 (Wi-Fi 5 with data transmission rates up to 867 Mbps, supporting dual-band operation
-
Bluetooth: Bluetooth 4.0 Low Energy (LE for short-range wireless communication
-
Ethernet: 1 WAN and 3 LAN ports with Gigabit Ethernet support for high-speed wired connections
-
Industrial Design: Durable aluminum casing, DIN rail or wall mount options, and wide operating temperature range (-40 °C to 75 °C
-
Advanced Security: VPN support, firewall with attack prevention, and advanced encryption protocols
-
IoT Integration: Supports MQTT, Modbus, and cloud platform integration for seamless IoT deployment
-
Power: Wide input voltage range (9 - 50 VDC with reverse polarity protection
Technical Specifications:
-
Processor: Quad-core ARM Cortex A7, 717 MHz
-
Memory: 256 MB DDR3 RAM
-
Flash Storage: 256 MB SPI Flash
-
Dimensions: 115 x 44.2 x 95.1 mm
-
Weight: 1.1 lbs
-
SIM Slots: 2 (Mini SIM - 2FF
-
Power Consumption: 16 W max
-
Operating Temperature: -40 °C to 75 °C
-
Certifications: CE, UKCA, EAC, FCC, UL/CSA Safety, and more
